Bopla SE 420 E/CEE -9016 pistokekotelo 100 x 50 x 40 PC valkoinen 1 kpl (43420109)

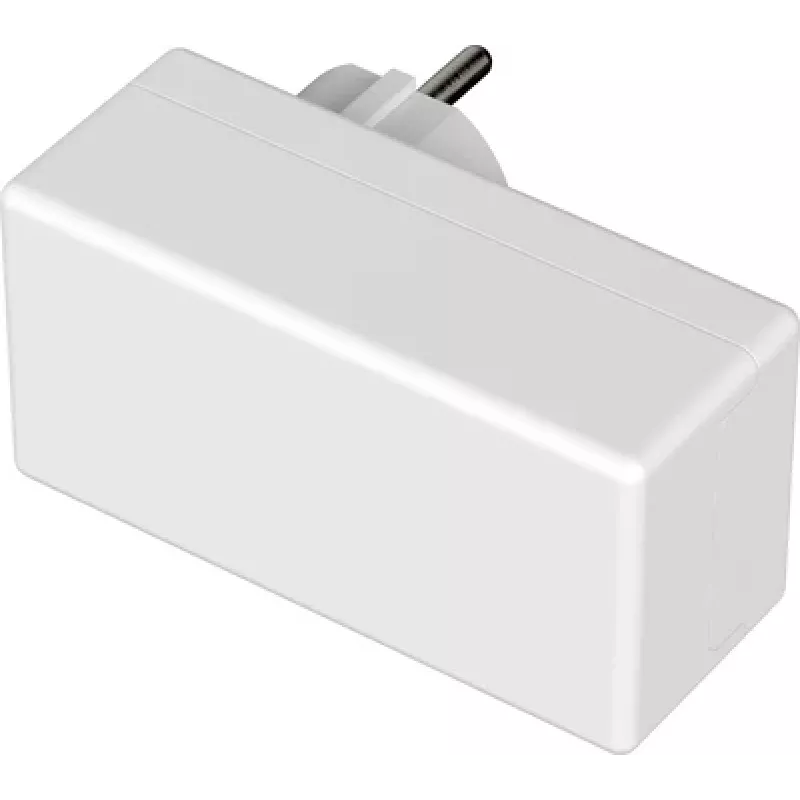

For engineers and installers building robust electronic devices, the Bopla SE 420 E/CEE plug housing offers a compact, rectangular enclosure in traffic white (RAL 9016). Its polycarbonate body measures 100 mm in length, 50 mm in width, and 40 mm in height, providing a clean housing for connectors and small electronics.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Traffic white (RAL 9016)
• External dimensions: 100 x 50 x 40 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Halogen-free: Yes
• RoHS compliant: Yes
• Series: SE
• Units per pack: 1

Why choose it

The SE 420 E/CEE combines a smooth, halogen-free polycarbonate shell with a PUR gasket and stainless steel lid screws for reliable sealing. Its IP65 rating protects against dust and water jets, while IK07 impact resistance handles rough handling in industrial settings.

Ideal use cases

• Housing for plug connectors and junction boxes
• Protecting sensors and control modules in factory automation
• Outdoor electronics requiring weatherproof enclosures

Good to know

The housing is supplied as a single unit. Its traffic white finish suits visible installations where a clean, professional appearance is required.
