Bopla yleiskotelo 160 x 80 x 87 mm ABS vaaleanharmaa RAL 7035 ET 231 63231000

With an impact resistance of IK07 and an operating temperature range from -40 to +70 °C, this universal enclosure withstands harsh industrial environments while protecting sensitive electronics.

Overview

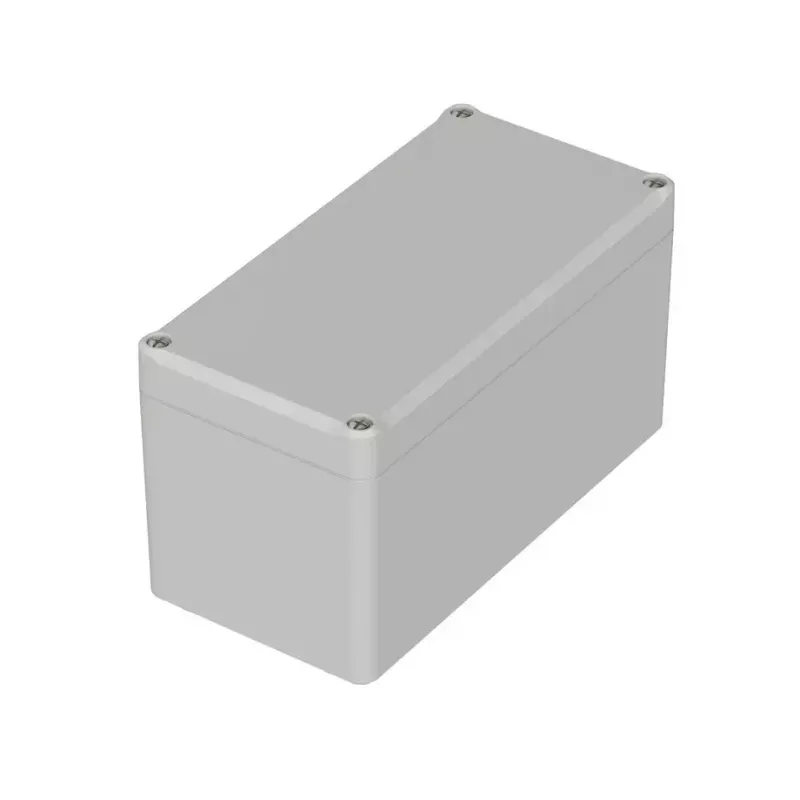

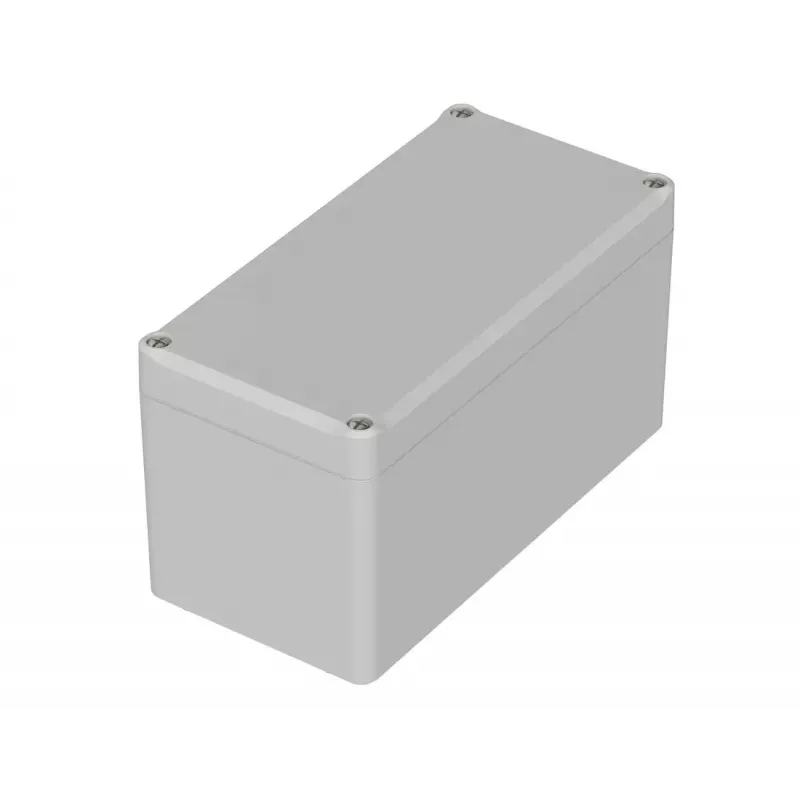

The Bopla ET 231 is a robust universal enclosure made from ABS in light grey (RAL 7035). Its external dimensions are 160 mm in length, 80 mm in width, and 87 mm in height, with a wall thickness of approximately 3 mm. The enclosure provides IP65 protection against dust and water jets, making it suitable for demanding applications.

What stands out

• High impact resistance (IK07) for mechanical durability
• Wide operating temperature range (-40 to +70 °C)
• IP65 sealed with polyurethane foam gasket
• Internal mounting bosses for DIN rails or mounting plates
• Screw-on lid with stainless steel screws

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 160 x 80 x 87 mm
• Protection class: IP65
• Flammability rating: UL 94 HB
• Impact resistance: IK07
• Lid fastening: Screw-on with stainless steel screws
• Gasket: Polyurethane (PU) foam
• Mounting: Internal bosses for DIN rails or mounting plates

Our verdict

A reliable and versatile enclosure for industrial electronics, offering solid protection and flexible mounting options.
