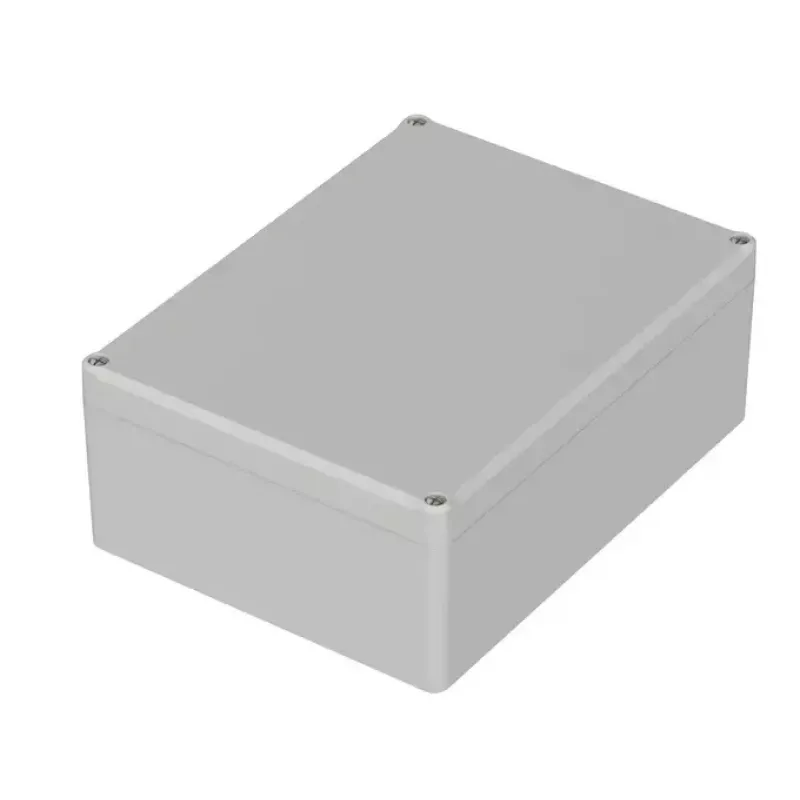

Bopla yleiskotelo 200 x 150 x 77 mm ABS vaaleanharmaa (RAL 7035) ET 223 63223000

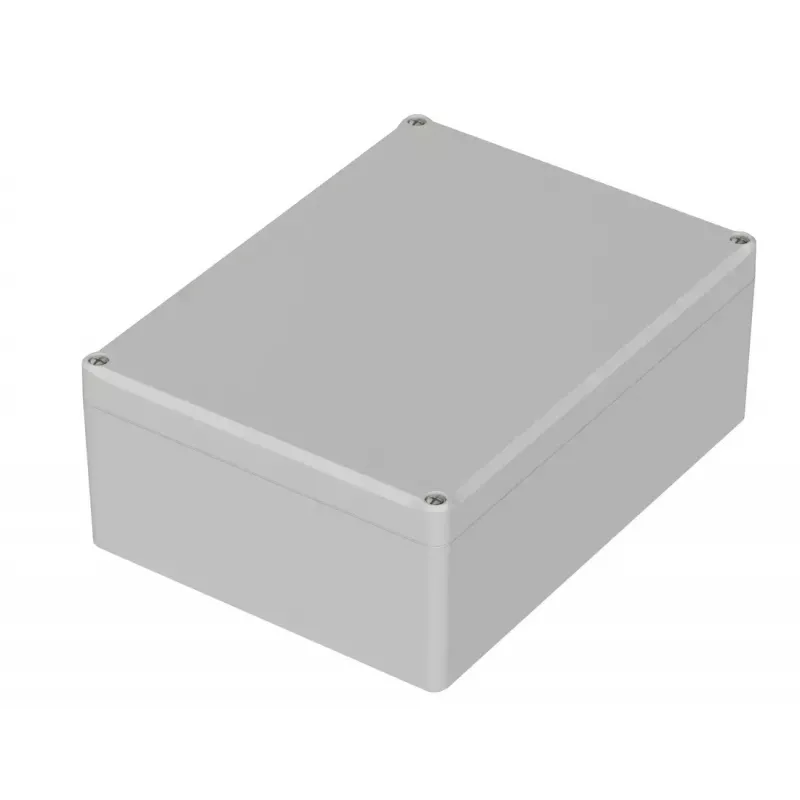

IP65-rated universal enclosure with external dimensions of 200 x 150 x 77 mm, made from light grey ABS (RAL 7035).

Overview

The Bopla ET 223 is a robust universal enclosure designed for housing electronic components. Its ABS construction provides a good balance of impact resistance and weight, while the light grey colour (RAL 7035) suits a wide range of applications. The enclosure is rated IP65, offering protection against dust and water jets, making it suitable for use in demanding environments.

What stands out

• IP65 protection: dust-tight and protected against water jets.
• ABS material with UL 94 V-2 flammability rating.
• Integrated screw bosses for mounting plates or PCBs.
• Screwed lid with 4 screws for secure closure.
• Operating temperature range: -20°C to +80°C.

Technical details

• External dimensions: 200 mm (L) x 150 mm (W) x 77 mm (H).
• Material: ABS (Acrylonitrile Butadiene Styrene).
• Colour: Light grey (RAL 7035).
• Ingress protection: IP65.
• Lid fastening: Screwed lid, 4 screws.
• Internal mounting: Integrated screw bosses.
• Operating temperature: -20°C to +80°C.
• Flammability rating: UL 94 V-2.
• Gasket material: Polyurethane (PUR).
• Impact resistance: IK07.
• Wall thickness: Approx. 3 mm.
• RoHS compliant: Yes.
• Halogen-free: Yes.

Our verdict

A versatile and reliable enclosure for electronics, combining IP65 protection with a practical size and durable ABS construction.
