BOPLA yleiskotelo ABS vaaleanharmaa 240 x 160 x 120 T 243 03243000

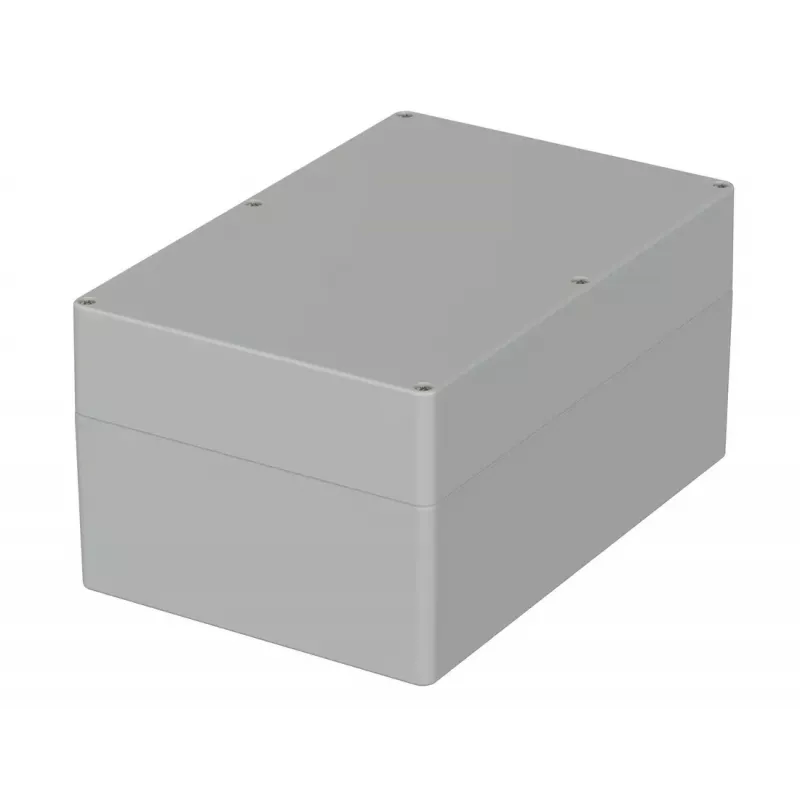

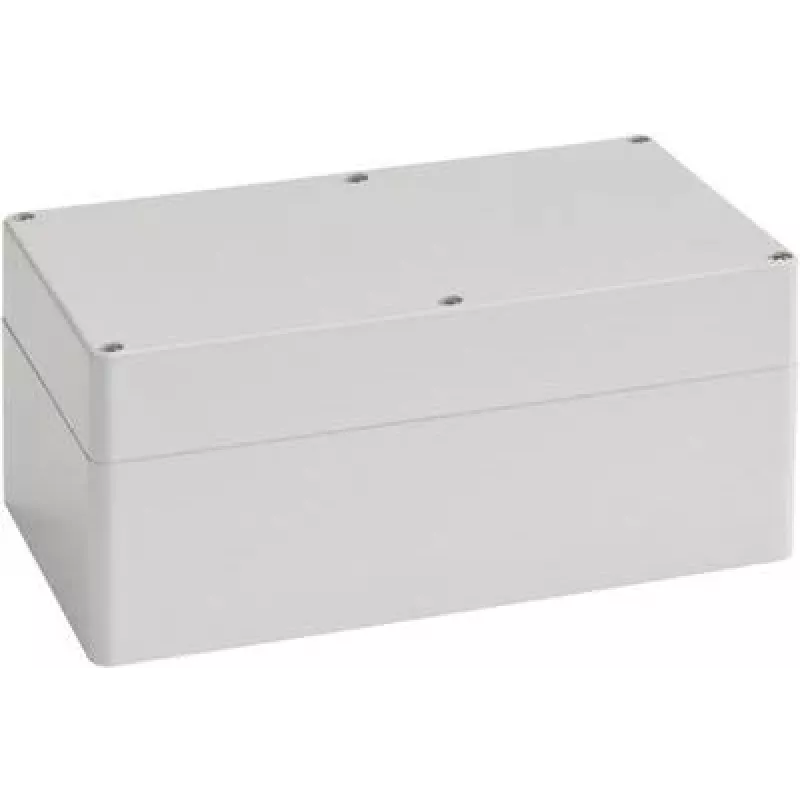

Universal enclosure made of ABS in light grey, offering a robust housing for industrial electronics with external dimensions of 240 x 160 x 120 mm.

Advantages

ABS material provides good impact resistance and a clean appearance. The screw-on lid with stainless steel screws ensures secure closure, while the integrated PU foam gasket maintains protection against dust and water. Mounting bosses inside allow easy installation of PCBs or mounting plates, and integrated screw channels enable wall mounting.

Suitable for

• Industrial electronics
• Control systems
• Junction boxes
• Measurement devices

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 240 mm (L) x 160 mm (W) x 120 mm (H)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40°C to +80°C
• Lid fastening: Screw-on lid with stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Flammability rating: UL 94 HB
• Halogen-free: Yes
• RoHS compliant: Yes

Recommendations

Ideal for applications requiring a reliable, medium-sized enclosure with easy access and mounting flexibility.
