BOPLA yleiskotelo polykarbonaatti vaaleanharmaa 120 x 80 x 85 M 226 VO 1 kpl (02226094)

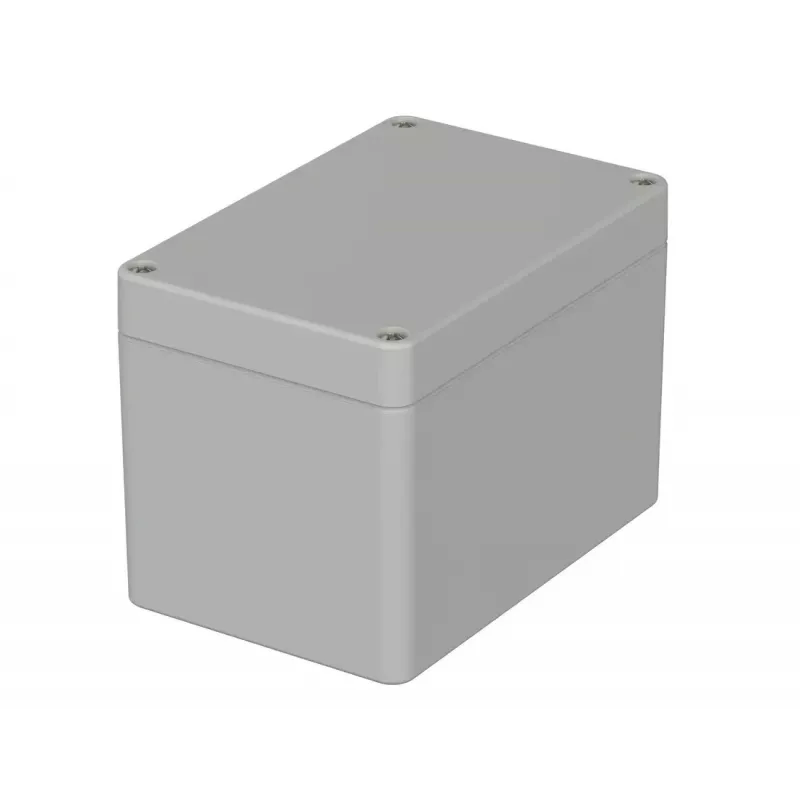

This BOPLA universal enclosure stands out with its robust polycarbonate construction and light grey finish, offering a reliable housing solution for electronics that demand durability and a professional appearance. The M 226 VO model combines a compact footprint with generous internal space, making it suitable for a wide range of applications.

Highlights

• Polycarbonate body in light grey (RAL 7035) for high impact resistance and UV stability.
• External dimensions: 120 mm length, 80 mm width, 85 mm height.
• Flammability rating UL 94 V-0 for enhanced fire safety.
• Halogen-free and RoHS compliant.
• Wall-mountable with integrated screw channels.

In daily use

The enclosure is designed for easy assembly: the lid is secured with stainless steel screws (material 1.4567) and includes a polyurethane gasket for a reliable seal. Its operating temperature range from -40°C to +100°C allows use in demanding environments. The light grey colour provides a neutral, clean look suitable for industrial and commercial installations.

Full specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey
• External length: 120 mm
• External width: 80 mm
• External height: 85 mm
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Impact resistance: IK08
• Operating temperature range: -40°C to +100°C
• Gasket material: Polyurethane (PU)
• Lid fastening type: Screwed
• Lid screw material: Stainless steel (1.4567)
• Mounting type: Wall mounting
• UV resistance: Yes
• Halogen-free: Yes
• RoHS compliance: Yes
• Number of pieces: 1

Final note

A versatile and robust enclosure for electronics, combining safety, durability, and ease of installation.
