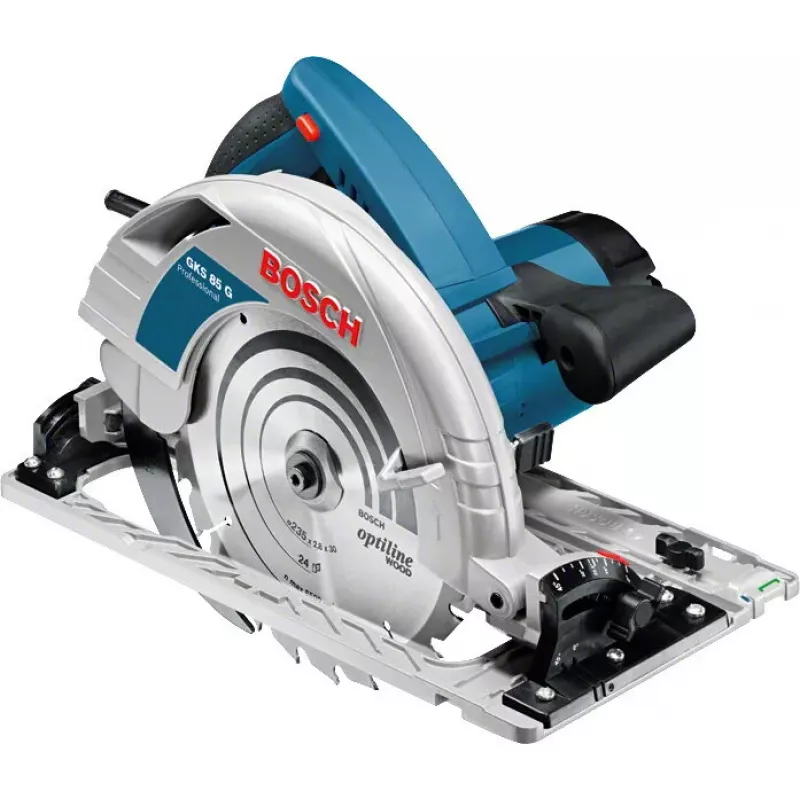

Bosch 0 601 57A 901 pyörösaha

The Bosch 0 601 57A 901 circular saw is a high-power portable saw designed for use with guide rails. It features a 235 mm blade diameter, a no-load speed of 5000 rpm and a 2200 W AC motor that provides fast sawing progress and a maximum cutting depth of 85 mm at 90°. The saw has a die-cast aluminium base plate with precision-milled grooves to interface with guide rails and weighs 7.8 kg for stable handling.

Advantages

The tool is optimised for use with the Bosch FSN guide rail system and is compatible with guide rails from other suppliers. Mitre cuts are possible with the guide rail without requiring an adapter. A powerful 2200 W motor ensures efficient cutting through a range of materials, while the die-cast aluminium base plate with precision-milled grooves provides accurate guidance and stable operation.

Suitable for

Key specifications

How to use

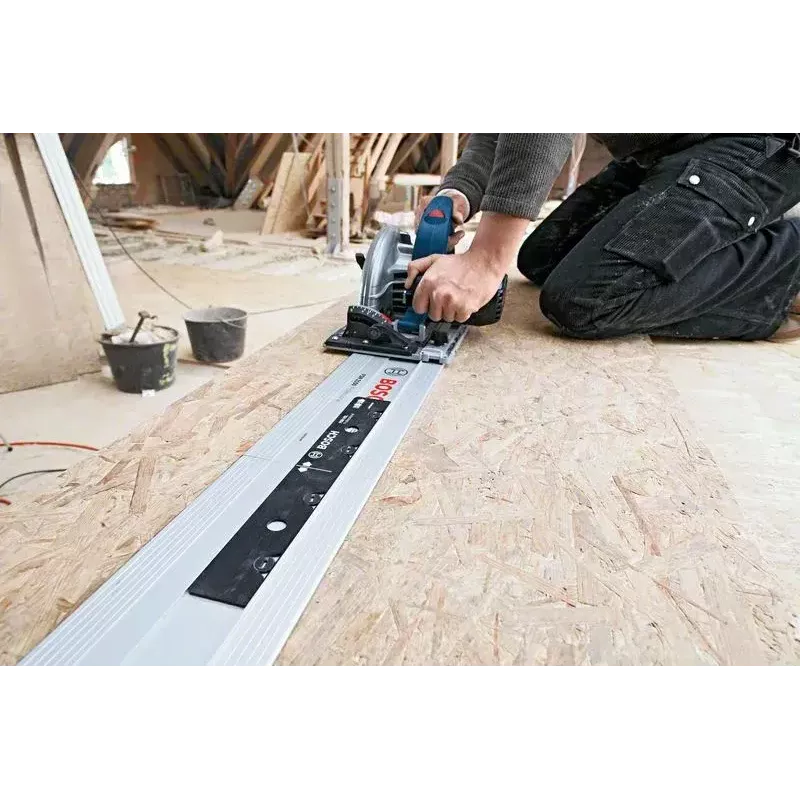

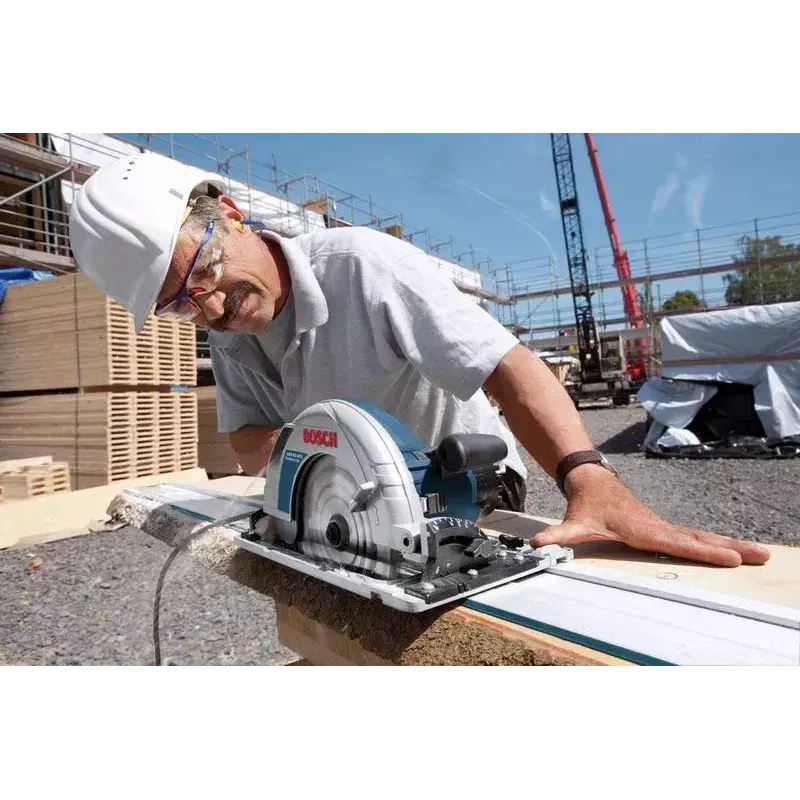

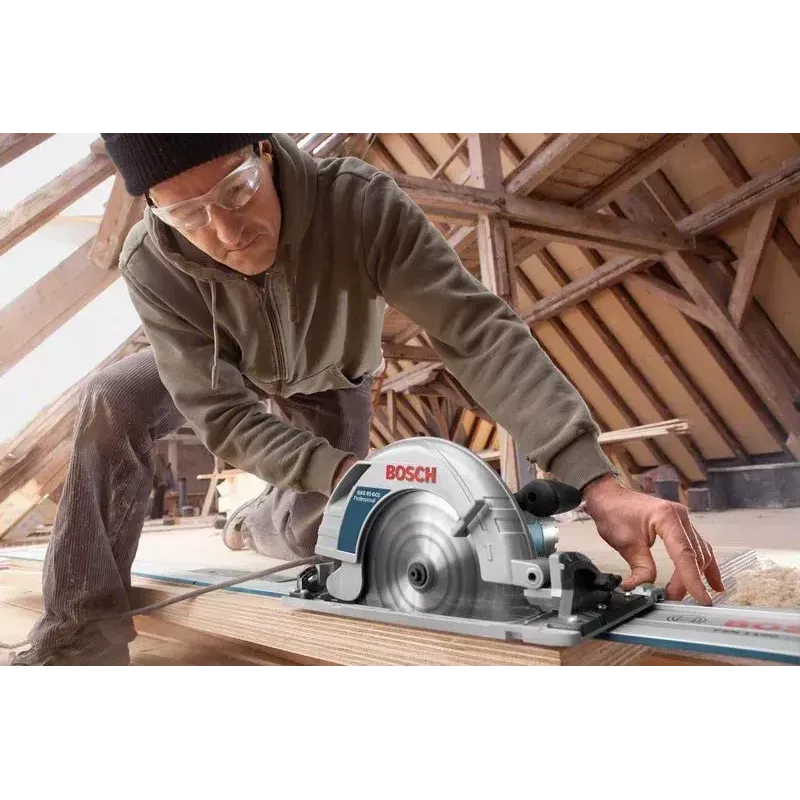

Mount a compatible guide rail onto the workpiece and position the circular saw so its base plate engages the guide grooves. Ensure the blade is correctly fitted and that the blade guard and other safety features are functional. Set the required cutting depth and angle (the saw supports up to 85 mm at 90°), start the motor and feed the saw along the guide rail at a steady pace to achieve a clean, straight cut. For mitre cuts, set the required angle and use the rail alignment to maintain accuracy without an adapter.

Recommendations

Use appropriate personal protective equipment (eye and hearing protection, gloves). Select the correct blade type for the material being cut and ensure the guide rail is securely fixed. Allow the motor to reach full speed before engaging the workpiece and avoid forcing the saw; let the motor power perform the cut for optimal blade life and finish quality.
