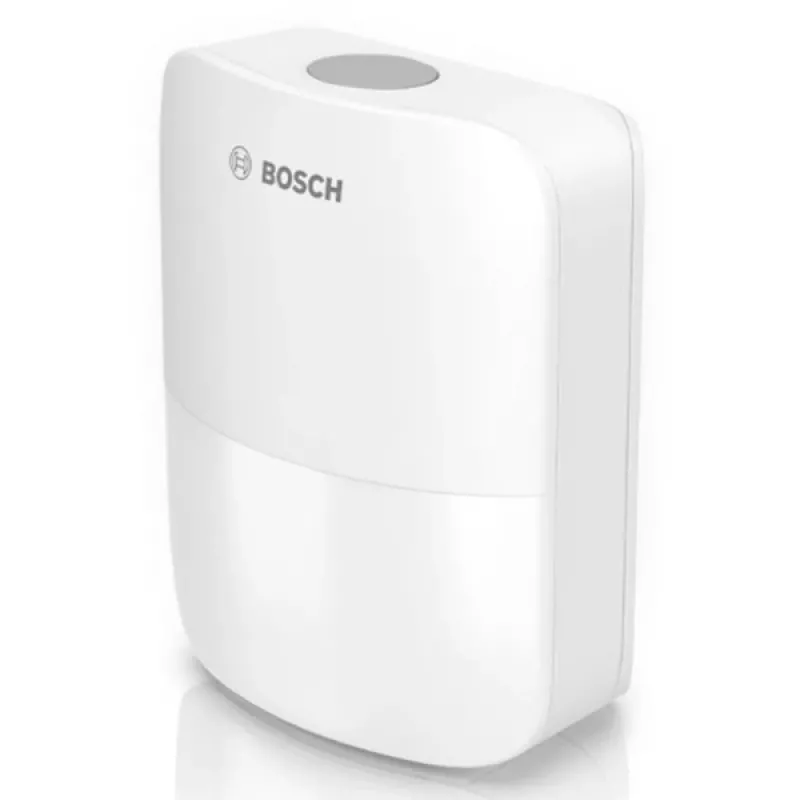

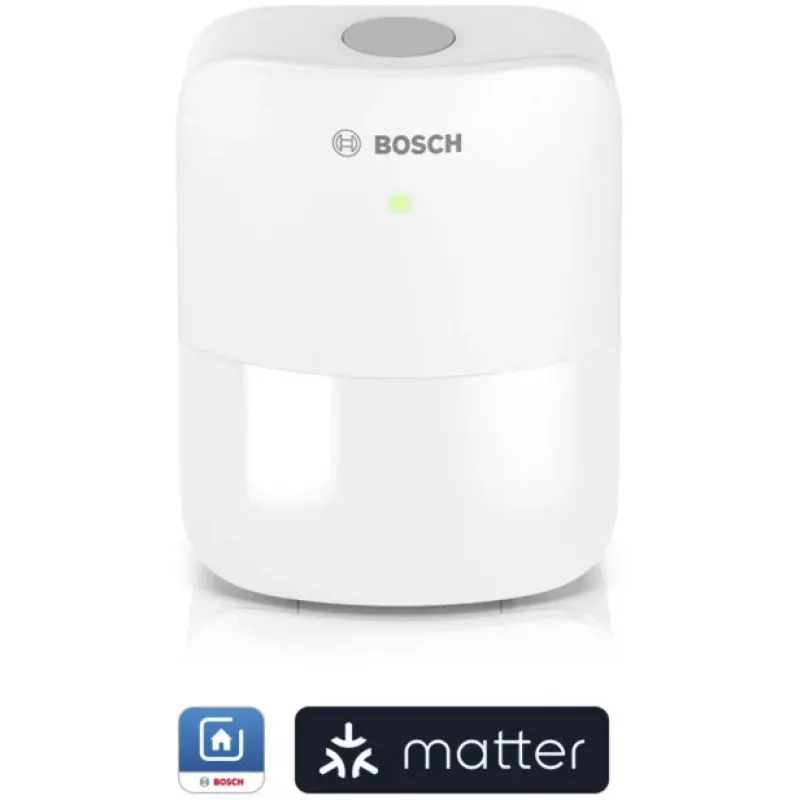

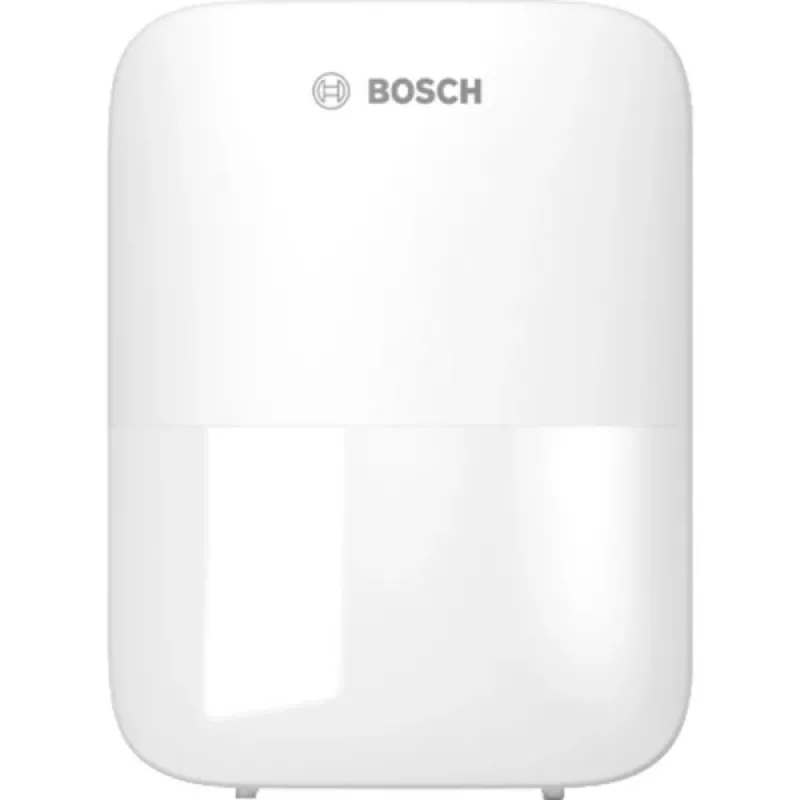

Bosch Smart Home Motion Detector II [+M]

The Bosch Smart Home Motion Detector II [+M] is a high-performance passive infrared (PIR) sensor designed for reliable motion detection in smart home environments. It seamlessly integrates with the Bosch Smart Home Controller II via Zigbee 3.0, enabling automated lighting, alarm systems, and energy-saving scenarios.

Advantages

This motion detector offers a detection range of up to 12 meters with a 90° horizontal and 80° vertical angle, ensuring comprehensive coverage. Its pet immunity (up to 25 kg) reduces false alarms from pets, while the integrated light sensor allows for daylight-dependent automation. The tamper protection feature enhances security against unauthorized removal.

Suitable for

• Indoor security and automation systems
• Smart lighting control based on occupancy
• Energy management by detecting room usage
• Integration with Bosch Smart Home ecosystem

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Detection Angle: 90° horizontal, 80° vertical
• Detection Range: Up to 12 meters
• Wireless Protocol: Zigbee 3.0
• Power Source: 2x AAA batteries (included)
• Battery Life: Up to 5 years
• Mounting Type: Wall or ceiling (adhesive pad or screws)
• IP Rating: IP20 (indoor use only)
• Product Colour: White
• Housing Material: PC/ABS Plastic

Recommendations

For optimal performance, mount the detector at a height of 2.2 to 2.7 meters. Ensure the Bosch Smart Home Controller II is installed and configured for full functionality. This device is designed for indoor use only.
