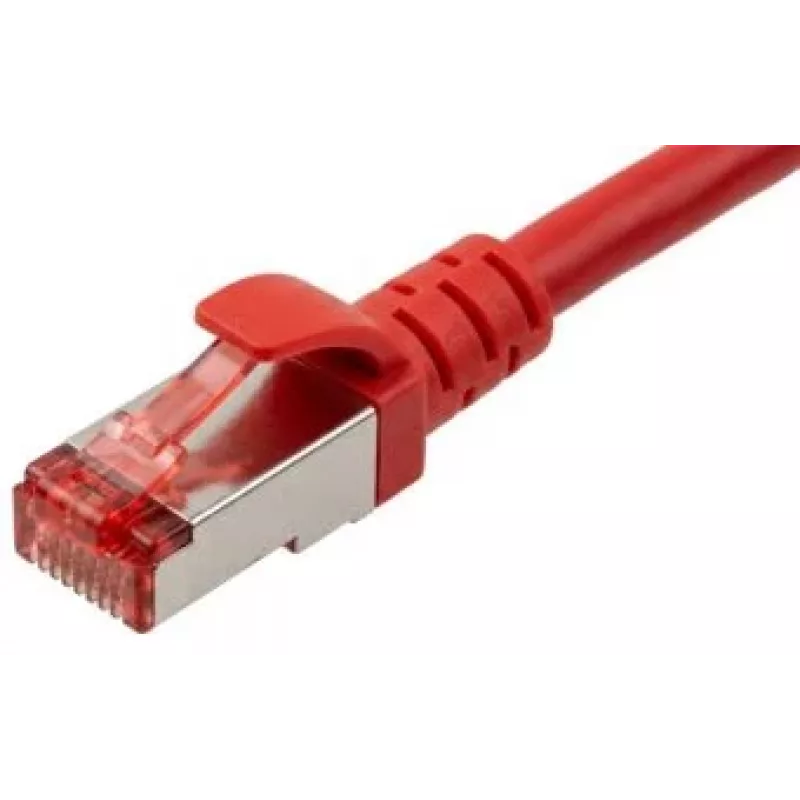

Brackton Patch SF/UTP 1m CAT 6a punainen

The Brackton Patch SF/UTP 1m CAT 6a Red is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections in data centers and LAN environments. With SF/UTP shielding and gold-plated connectors, it ensures minimal interference and optimal signal integrity.

Advantages

This patch cable offers superior shielding against electromagnetic interference (EMI) and crosstalk, thanks to its overall braid and foil screen (SF/UTP). The snagless molded boot protects the RJ45 connectors during installation and removal, while the 50µm gold-plated contacts provide corrosion resistance and reliable connectivity. It supports Power over Ethernet (PoE, PoE+, PoE++) for flexible device powering.

Suitable for

• Data centers and server rooms
• Enterprise LAN networks
• High-speed workstation connections
• 10GBASE-T applications
• PoE devices such as IP cameras, access points, and VoIP phones

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: Cat 6a (Class EA)
• Shielding Type: SF/UTP
• Length: 1 meter
• Color: Red
• Connector Type: RJ45 (8P8C)
• Connector Plating: Gold-plated (50µm)
• Conductor Material: Oxygen-Free Copper (OFC)
• Conductor Gauge: AWG 26/7 (Stranded)
• Max Bandwidth: 500 MHz
• Max Data Transfer Rate: 10 Gbps
• Jacket Material: PVC
• Wiring Standard: TIA/EIA-568B
• PoE Support: Yes (PoE, PoE+, PoE++)
• Boot Type: Snagless, molded
• Outer Diameter: Approx. 6.2 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with Cat 6a compatible switches and network interfaces. Ensure proper cable management to avoid kinking or sharp bends.
