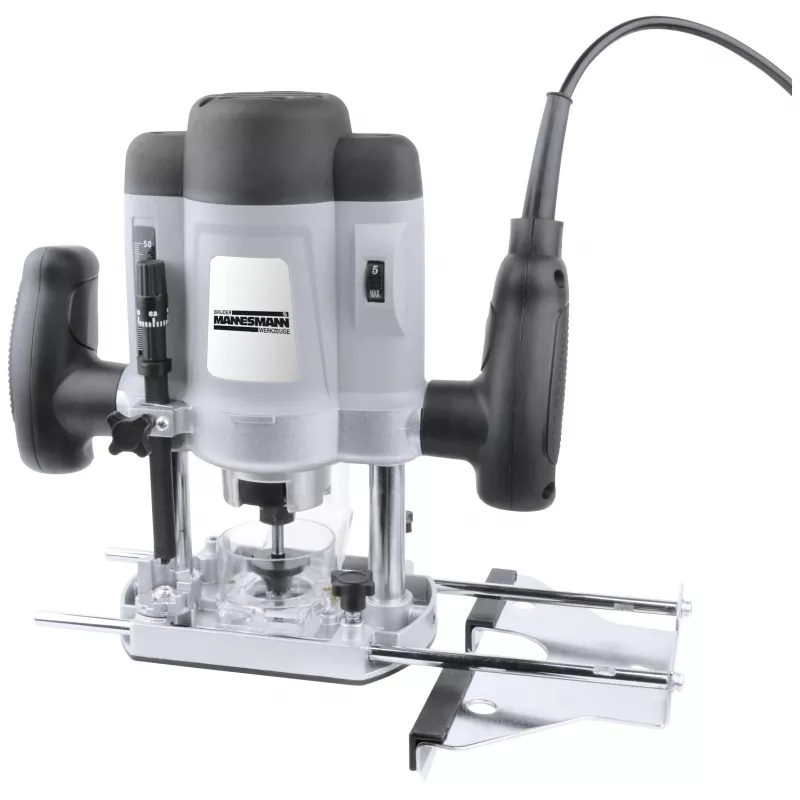

Brüder Mannesmann M12868 1200 W yläjyrsin

For precise plunge routing in wood and wood-based materials, the Brüder Mannesmann M12868 router delivers 1200 W of power with variable speed control from 11,000 to 30,000 rpm. The aluminum base plate and fine depth adjustment with depth stop enable accurate cuts, while the transparent chip protection improves visibility and safety. The spindle lock allows quick bit changes, and the dust extraction adapter keeps the work area clean. Included parallel and circle guides expand routing capabilities, and the ergonomic soft grip handle enhances control during extended use.

Who is it for

Carpenters, cabinet makers, and serious DIY enthusiasts who need a reliable plunge router for edge profiling, grooving, and template work.

Main features

• 1200 W motor with variable electronic speed control
• No-load speed: 11,000 - 30,000 rpm
• Collet chuck diameters: 6 mm and 8 mm
• Maximum plunge depth: 55 mm
• Aluminum base plate with fine depth adjustment and depth stop
• Spindle lock for easy bit changes
• Dust extraction via adapter
• Transparent chip protection
• Ergonomic soft grip handle
• Includes parallel guide and circle guide

Specifications

• Power consumption: 1200 W
• Operating voltage: 230 V
• Frequency: 50 Hz
• No-load speed: 11000 - 30000 rpm
• Collet chuck diameter: 6 mm, 8 mm
• Max. plunge depth: 55 mm
• Speed control: Variable electronic speed control
• Spindle lock: Yes
• Dust extraction: Yes (via adapter)
• Depth adjustment: Fine adjustment with depth stop
• Base plate material: Aluminum
• Handle features: Ergonomic soft grip
• Included guides: Parallel guide, Circle guide

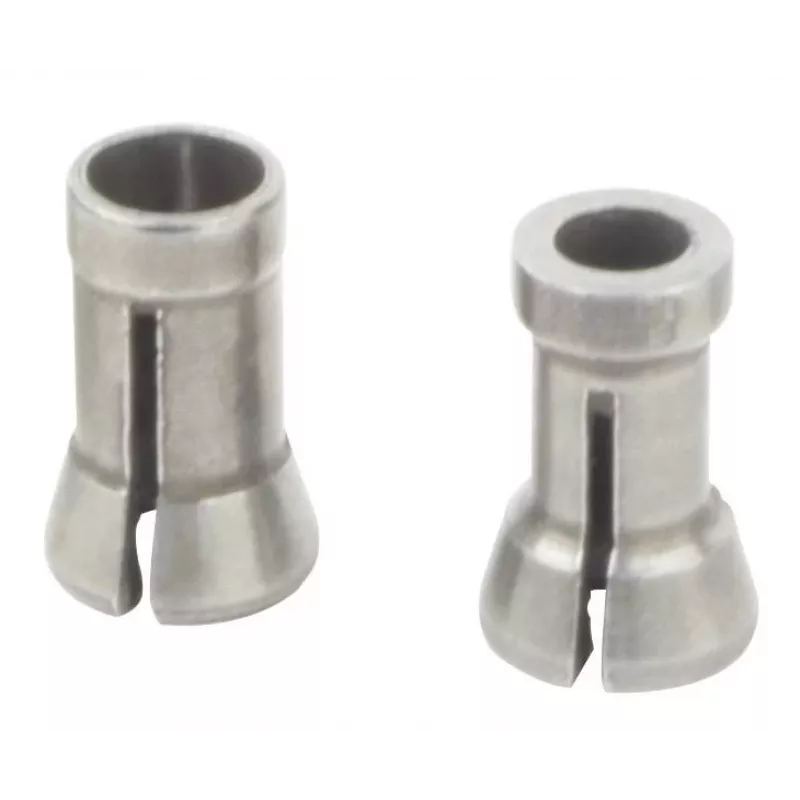

• Included collets: 6 mm, 8 mm
• Safety features: Transparent chip protection

Tips

Use the appropriate collet for your router bit shank size (6 mm or 8 mm). For clean cuts, adjust the speed according to the material and bit diameter. Connect a vacuum to the dust extraction adapter to minimize cleanup.
