Brüder Mannesmann renkaantäyttölaite painemittarilla 1543

This tire inflator delivers a pressure range of 0-12 bar / 0-174 psi, making it suitable for car, motorcycle, and bicycle tires as well as inflatables. The analog manometer shows readings in both bar and psi, so you can work with your preferred unit.

Overview

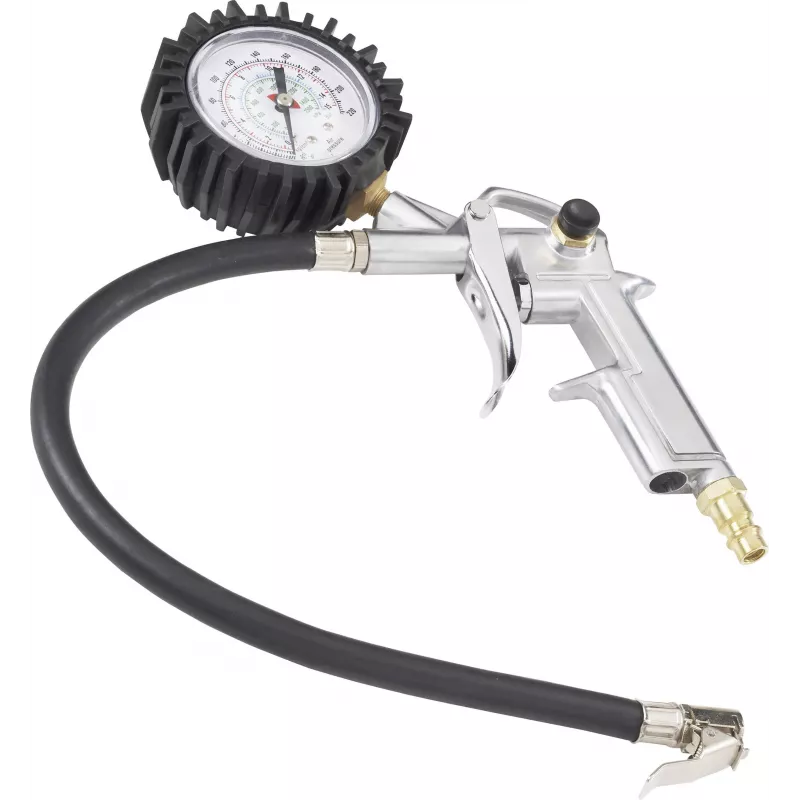

The Brüder Mannesmann 1543 is a pistol-grip tire inflator with a built-in pressure gauge. It connects to a standard compressor via a 1/4 inch quick coupling and features a 350 mm hose with a clip-on Schrader valve connector. A pressure release valve allows fine adjustment or deflation.

What stands out

• Wide measurement range up to 12 bar / 174 psi
• Dual-scale analog manometer (bar and psi)
• Rubberized manometer protection for durability
• Comfortable one-hand operation with pistol grip
• Metal housing for long service life

Technical details

• Measurement range: 0-12 bar / 0-174 psi
• Display type: Analog manometer
• Hose length: 350 mm
• Valve connector: Clip-on (Schrader valve)
• Air inlet: 1/4 inch quick coupling
• Functions: Inflate, deflate, measure pressure
• Pressure release valve: Yes
• Housing material: Metal
• Manometer protection: Rubberized
• Handle type: Pistol grip

Our verdict

A reliable analog tire inflator with a clear dual-scale gauge and robust build, ideal for workshop or home use.
