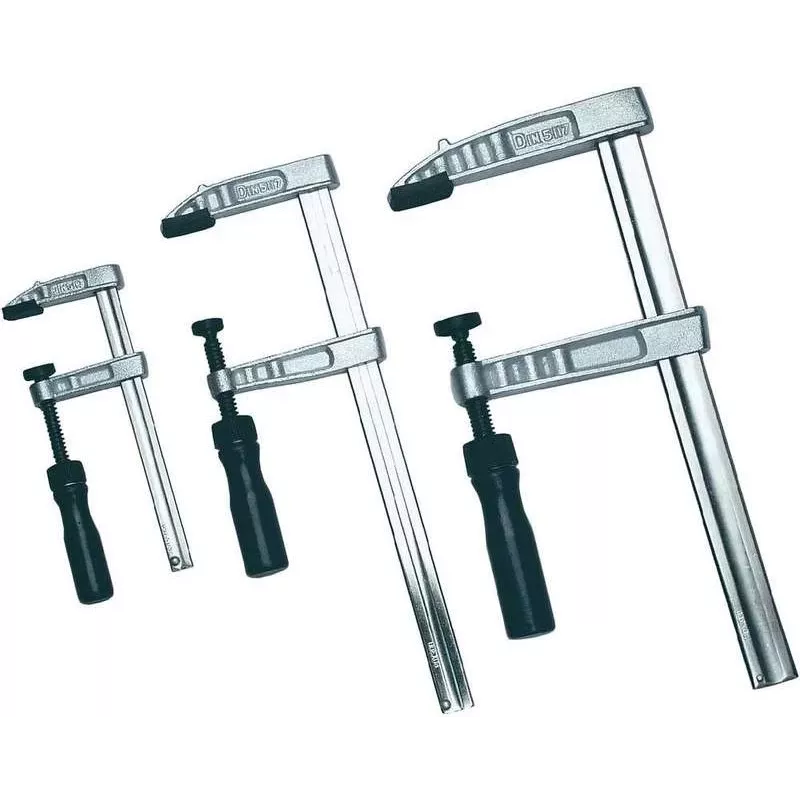

Brüder Mannesmann teollisuusruuvipuristin DIN 5117 600 mm 90422

This industrial screw clamp stands out with its DIN 5117 conformance, a guarantee of dimensional and strength standards for professional clamping tasks. The solid steel rail profile of 30 x 8 mm provides the rigidity needed for heavy-duty applications, while the trapezoidal thread spindle ensures smooth and powerful clamping action.

Highlights

• DIN 5117 compliant for reliable performance
• Maximum clamping width of 600 mm and throat depth of 120 mm
• Forged steel jaws for durability under high pressure
• Swiveling pressure plate adapts to angled workpieces
• Wooden handle for comfortable grip and control

In daily use

Whether in a workshop, on a construction site, or for woodworking and metalworking projects, this clamp delivers secure holding power. The galvanized steel spindle resists corrosion, and the trapezoidal thread allows precise adjustment. The fixed and sliding jaws are forged from steel, ensuring they withstand the demands of industrial environments.

Full specifications

• Product type: Industrial Screw Clamp
• Standard conformance: DIN 5117
• Clamping width (max.): 600 mm
• Clamping depth (throat): 120 mm
• Rail profile: Solid steel profile, 30 x 8 mm
• Fixed jaw material: Forged steel
• Sliding jaw material: Forged steel
• Spindle material: Steel, galvanized
• Spindle thread type: Trapezoidal thread
• Handle material: Wood
• Pressure plate: Swiveling
• Application: Industrial, workshop, woodworking, metalworking
• Construction: Heavy-duty

Final note

A robust clamping solution engineered for professionals who demand precision and strength.
