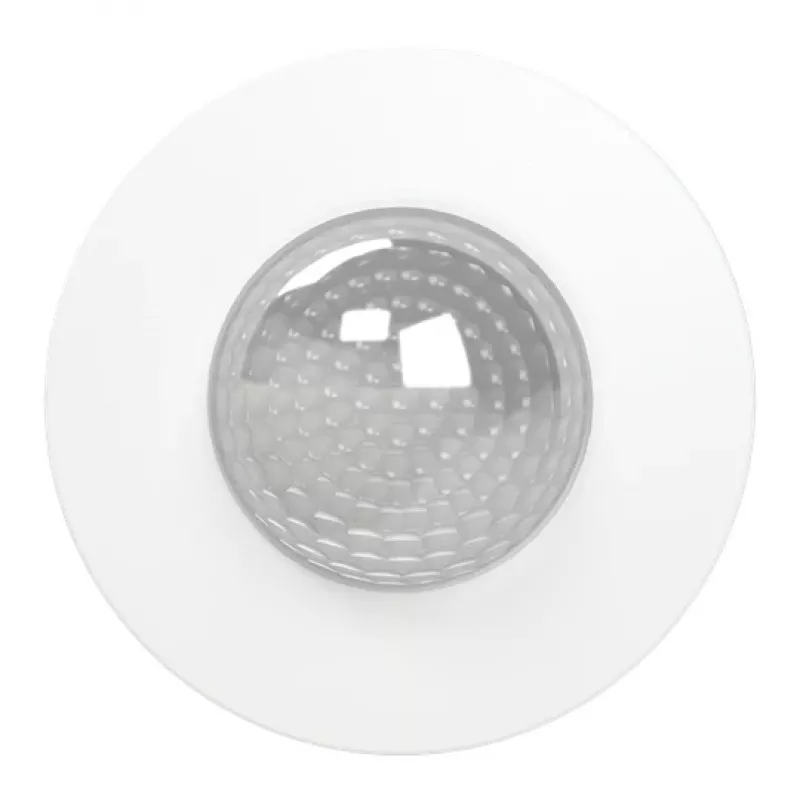

BUSCH-JAEGER 6817-916 läsnäolotunnistin BasicLINE leveä tunnistusalue 24 m 2CKA006800A3240

In open-plan offices, corridors, and large meeting rooms, the BUSCH-JAEGER 6817-916 presence detector automatically controls lighting based on occupancy and ambient brightness. Its wide 24 m detection range covers expansive areas from a single ceiling-mounted point, reducing energy waste and manual switching.

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection range: 24 m diameter at 3 m mounting height
• Detection angle: 360°
• Mounting type: Ceiling flush-mounted
• Recommended mounting height: 2.5 – 4 m
• Operating voltage: 230 V AC, 50/60 Hz
• Switching output: 1x NO contact (relay)
• Max. ohmic load: 2300 W
• Max. LED load: 500 W
• Integrated light sensor: Yes, adjustable 5 – 1000 Lux
• Time delay adjustable: 10 s – 30 min
• Protection class: IP20
• Ambient temperature range: -5 to +45 °C
• Standby power consumption: approx. 0.5 W
• Colour: White
• Visible diameter: 94 mm
• Installation depth: 50 mm

Why choose it

The BasicLINE presence detector combines a generous detection area with precise light-level and time-delay settings. Its flush ceiling installation keeps the design unobtrusive, while the relay output supports a wide range of lighting loads, including LED lamps up to 500 W.

Ideal use cases

• Automatic lighting control in offices and meeting rooms
• Corridors and stairwells with intermittent occupancy
• Large open areas where a single sensor can cover the entire space
• Energy-saving retrofits in commercial buildings

Good to know

The detector is designed for indoor use only (IP20). It operates directly on 230 V AC mains and requires a neutral connection. The integrated light sensor prevents switching when sufficient daylight is available, further reducing energy consumption.
