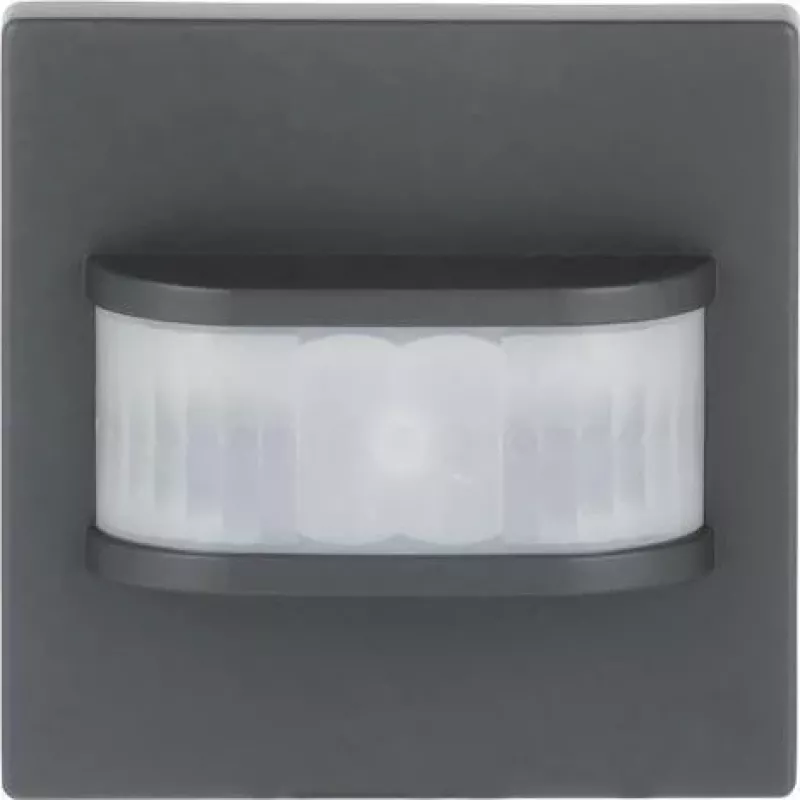

Busch-Jaeger Basic Sensor BW180 64761-885 (2CKA006800A2932) PIR-liiketunnistin, 180°, 8 m, uppoasennus, 230 V

The Busch-Jaeger Basic Sensor BW180 stands out with its wide 180° detection angle and 8-metre reach, making it a practical choice for hallways, stairwells and utility rooms. Its flush-mounted design integrates neatly with Busch-Jaeger cover plates and frames, including BasicLINE and future® linear ranges.

Highlights

• Passive infrared (PIR) motion detection
• 180° detection angle, 8 m range at 2.2–2.5 m mounting height
• Adjustable time delay from approx. 10 s to 30 min
• Brightness threshold adjustable from approx. 5 lux to daylight
• Switching capacity up to 2300 W for incandescent/halogen loads
• Flush-mounted installation, IP20 rated

In daily use

The sensor switches lighting automatically when movement is detected and ambient light falls below the set threshold. It suits 230 V AC mains operation and handles mixed lighting loads: up to 2300 W for resistive loads and 1150 VA/W for fluorescent or LED lighting. The time delay and twilight settings allow customisation for different spaces.

Full specifications

• Product type: Motion detector / PIR sensor
• Detection angle: 180°
• Detection range: 8 m
• Mounting type: Flush-mounted
• Sensor technology: Passive infrared (PIR)
• Supply voltage: 230 V AC, 50 Hz
• Max. switching capacity (incandescent/halogen): 2300 W
• Max. switching capacity (fluorescent/LED): 1150 VA / 1150 W
• Max. switching current: 10 A (cos φ = 0.6)
• Time delay setting: approx. 10 s – 30 min
• Brightness threshold setting: approx. 5 lux – 1000 lux (daylight)
• IP rating: IP20
• Installation height: 2.2–2.5 m
• Operating temperature: 0 °C to +45 °C
• Housing material: Thermoplastic (PC)
• Compatibility: Busch-Jaeger cover plates and frames (e.g., BasicLINE, future® linear)

Final note

The BW180 offers straightforward motion-activated lighting control with flexible settings, designed for flush-mounted installation in Busch-Jaeger switch ranges.
