BUSCH-JAEGER BJ 83170-660-101 sormenjälkimoduuli (2CKA008300A0515)

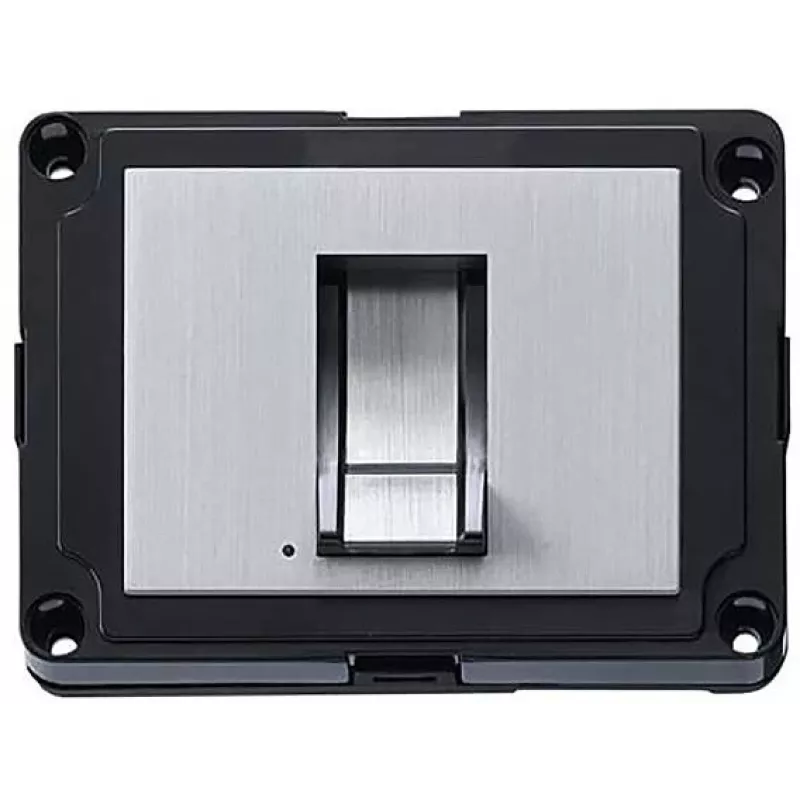

Controlling access to a building or room often requires keys or cards that can be lost, forgotten, or duplicated. The BUSCH-JAEGER BJ 83170-660-101 Fingerprint Module replaces those with a biometric solution that is unique to each user. It reads a fingerprint and activates a relay to unlock a door or gate, integrating directly into Busch-Jaeger switch ranges for a clean, flush-mounted installation.

Who is it for

This module is intended for electricians, system integrators, and building owners who need a reliable access control point in residential, commercial, or industrial settings. It suits anyone who wants to eliminate the hassle of physical credentials and improve security with fingerprint recognition.

Main features

• Capacitive line sensor for fast and accurate fingerprint reading
• Stores up to 64 fingerprints for 32 different users
• Two potential-free relay outputs, configurable as normally open or normally closed
• Two binary inputs for external control or status monitoring
• USB interface for programming via PC software
• LED status indication and tamper contact for security
• Flush-mounted design compatible with Busch-Jaeger switch ranges

Specifications

• Operating voltage: 20-30 V DC
• Current consumption: max. 100 mA
• Relay switching capacity: 24 V AC/DC, 1 A
• Operating temperature: -25 °C to +55 °C
• Storage temperature: -25 °C to +70 °C
• Protection class: IP20
• ABB order code: 2CKA008300A0515

Tips

For best performance, mount the module at a comfortable height and ensure the sensor surface is kept clean. Use the USB connection and PC software to enroll fingerprints and configure relay behavior before final installation.
