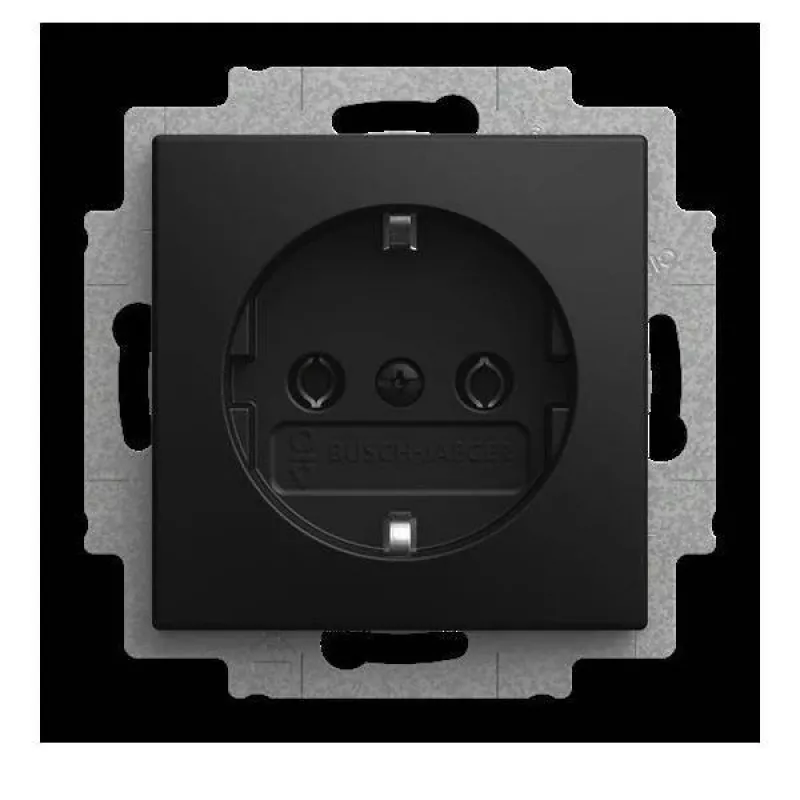

Busch-Jaeger Busch-balance SI SCHUKO pistorasiaosa ruuviliittimillä 2CKA002011A6347

This SCHUKO socket outlet insert from the Busch-balance SI design line provides a reliable 250 V, 16 A power connection for residential and commercial installations. Its screw terminals accept rigid conductors from 1.5 to 2.5 mm², ensuring a secure and durable connection.

Advantages

The flush-mounted design integrates seamlessly into standard wall boxes with an installation depth of approximately 32 mm. The halogen-free thermoplastic housing (PC/ABS) offers robust mechanical protection and long-term stability. The insert is compatible with Busch-balance SI cover plates, allowing for a coordinated appearance.

Suitable for

• Residential electrical installations
• Commercial buildings
• Use with Busch-balance SI cover plates

Key specifications

• Socket type: SCHUKO (Type F)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Number of poles: 2P+E
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductors)
• Mounting type: Flush-mounted
• Material: Thermoplastic (PC/ABS)
• Halogen-free: Yes
• Overvoltage category: III
• Ambient temperature: -5 °C to +45 °C
• Installation depth: 32 mm
• Colour: White/Cream

Recommendations

Pair with Busch-balance SI cover plates in a matching colour to complete the installation. For optimal performance, ensure wiring is carried out by a qualified electrician according to local regulations.
