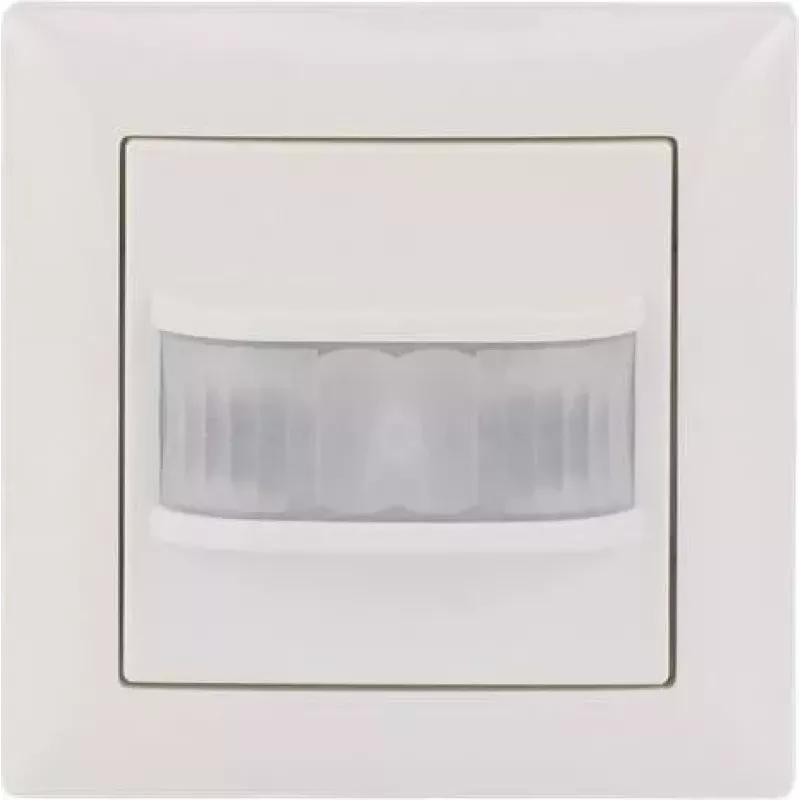

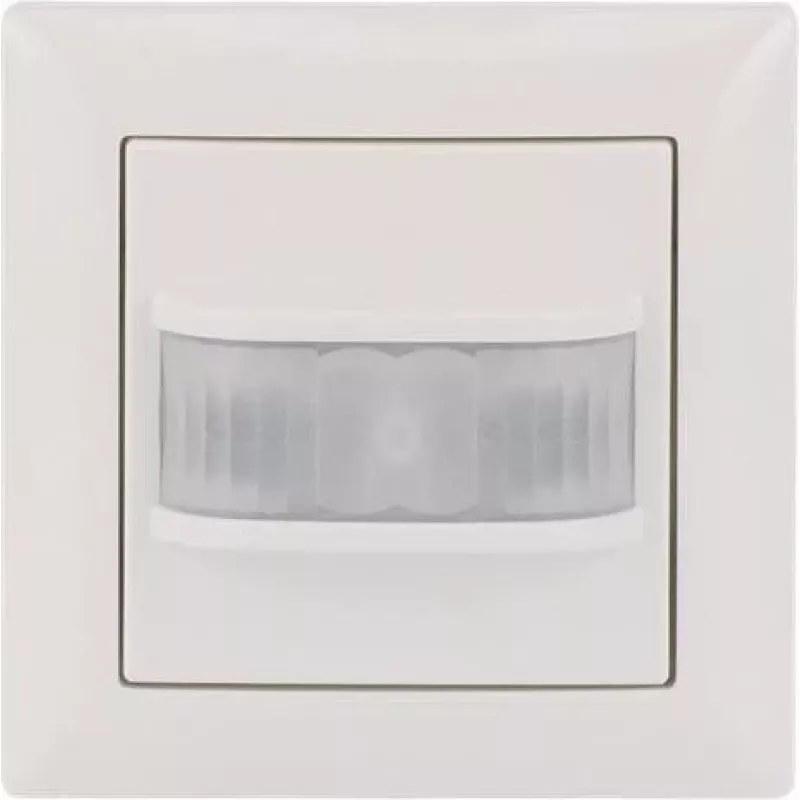

Busch-Jaeger Flex-Set Comfort BW180 64762 UJ-914 liiketunnistinosa, Studio White

The Busch-Jaeger Flex-Set Comfort BW180 64762 UJ-914 is a high-quality motion detector insert designed for flush-mounted installation. It features passive infrared (PIR) sensor technology with a 180° detection angle and a maximum range of 12 meters (diameter) at a mounting height of 2.5 meters. This device is ideal for automatic lighting control in residential and commercial environments, offering reliable presence detection and energy-saving functionality.

Advantages

Energy-efficient standby power consumption of less than 0.5 W. Versatile time settings from approximately 10 seconds to 30 minutes. Adjustable brightness threshold from approximately 5 Lux to 1000 Lux. Includes staircase light function, short-term ON, test function, and teach-in function for flexible operation.

Suitable for

• Indoor use in hallways, staircases, bathrooms, and living areas
• Automatic lighting control for energy savings
• Integration with Busch-Jaeger cover frames and central plates

Key specifications

• Product Type: Motion Detector Insert
• Mounting Type: Flush-mounted
• Detection Angle: 180°
• Detection Range: Max. 12 m (diameter) at 2.5 m mounting height
• Recommended Mounting Height: 1.1 m
• Sensor Technology: Passive Infrared (PIR)
• Operating Voltage: 230 V AC, 50 Hz
• Switching Capacity (Incandescent/Halogen): 2300 W
• Switching Capacity (LED): 250 VA (RC LED), 100 VA (RL LED)
• Time Setting Range: Approx. 10 seconds to 30 minutes
• Brightness Threshold: Approx. 5 Lux to 1000 Lux
• Protection Class: IP20
• Color: Studio White
• Material: Thermoplastic (PC, halogen-free)
• Power Consumption (Standby): < 0.5 W
• Ambient Temperature: -5 °C to +45 °C
• Functions: Presence detection, staircase light function, short-term ON, test function, teach-in function
• Compatibility: Requires Busch-Jaeger cover frame and central plate
• Switching Output: 1-channel (light)

Recommendations

For optimal performance, mount the detector at the recommended height of 1.1 m and ensure the detection area is free of obstructions. Pair with compatible Busch-Jaeger cover frames for a seamless finish.
