Busch-Jaeger free@home Wireless ikkunakontakti Studio White Matt 6222/1 AP-64-WL

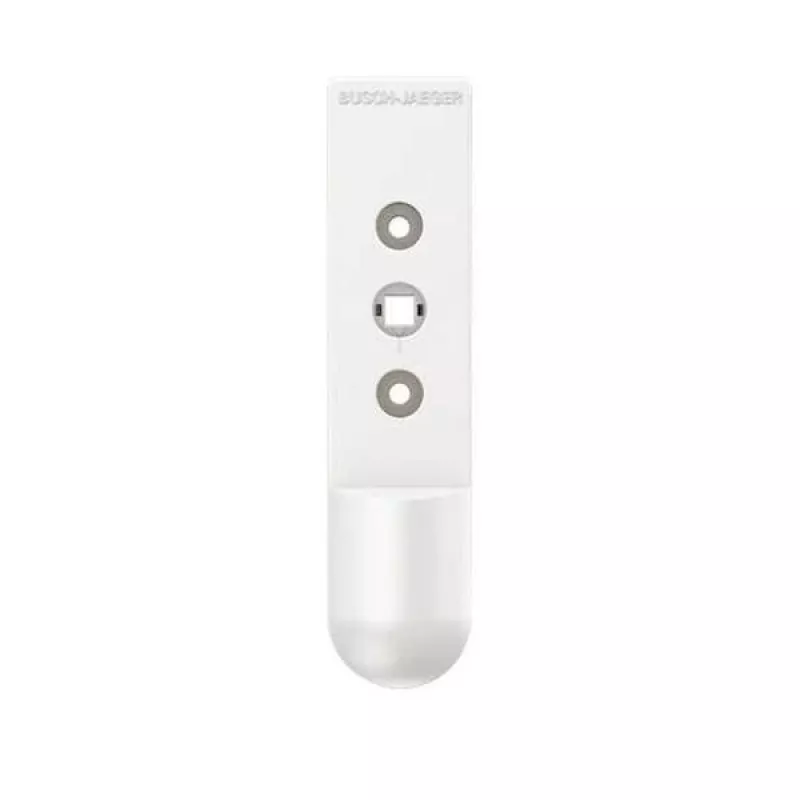

The Busch-Jaeger free@home Wireless Window Contact (model 6222/1 AP-64-WL) is a surface-mounted magnetic contact sensor designed for detecting open/closed status of windows, doors, and skylights. It integrates seamlessly into the Busch-Jaeger free@home smart home system via 868 MHz RF communication, enabling automated scenarios such as heating control, alarm triggering, or lighting adjustments based on window status.

Advantages

Battery-powered with a typical lifespan of 5 years (CR2032), easy installation via self-adhesive or screw mounting, and a compact design in studio white matt finish. The LED indicator provides clear status feedback for pairing, battery, and operation.

Suitable for

• Windows and doors in residential and commercial buildings
• Skylights and roof windows
• Integration with Busch-Jaeger free@home automation systems

Key specifications

• Product Type: Wireless Window Contact
• System Compatibility: Busch-Jaeger free@home
• Mounting Type: Surface-mounted (AP)
• Colour: Studio White Matt
• Wireless Technology: free@home RF
• Radio Frequency: 868 MHz
• Power Supply: 1x CR2032 Lithium Battery
• Battery Life: Approx. 5 years (typical)
• Detection Principle: Magnetic Contact
• Functionality: Open/Closed Status Detection
• Operating Temperature: 0 °C to +45 °C
• Protection Class: IP20
• Housing Material: Plastic
• Dimensions (Sensor Unit): 50 x 25 x 10 mm (L x W x H)
• Dimensions (Magnet Unit): 25 x 10 x 10 mm (L x W x H)
• Installation: Self-adhesive or screw mounting
• Status Indication: LED (for battery, pairing, status)
• Application: Windows, doors, skylights

Recommendations

For optimal performance, ensure the sensor and magnet are aligned within 10 mm distance. Use only CR2032 batteries. Compatible with all Busch-Jaeger free@home accessories.
