Busch-Jaeger huonelämpötilasäädin 6-osainen, studiovalkoinen SBR-F-6.0.1-84 2CKA006220A0864

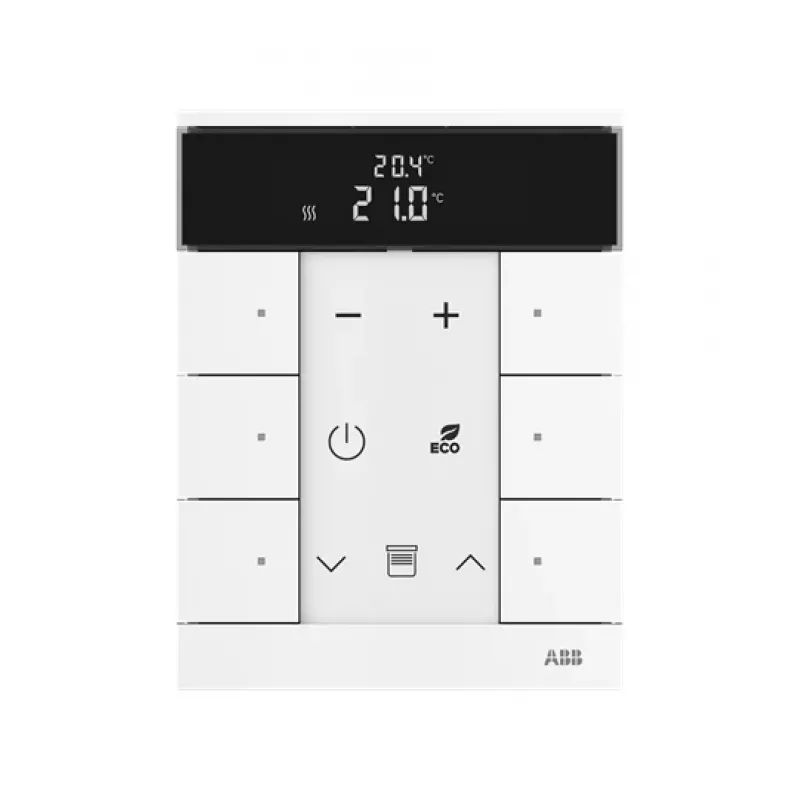

Control up to six independent heating and cooling zones with the Busch-Jaeger Room Temperature Controller 6-fold, designed for the Busch-free@home® system. The monochrome LCD with backlight provides clear status and setpoint readouts, while push-button operation allows direct adjustment of comfort, eco, night, and frost protection modes.

Overview

This flush-mounted controller integrates a temperature sensor (0 °C to 50 °C measurement range) and supports setpoint adjustment from 5 °C to 30 °C. Power is supplied via the Busch-free@home® bus (24 V DC), with a typical current consumption of 15 mA. The unit is made of thermoplastic (PC) and rated IP20 for indoor use.

What stands out

• Six independent control channels for heating and cooling zones
• Monochrome LCD with backlight for easy reading
• Push-button operation with four operating modes
• Integrated temperature sensor with wide measurement range
• Bus-powered via Busch-free@home® system

Technical details

• System compatibility: Busch-free@home®
• Product type: Room temperature controller
• Control channels: 6
• Colour: Studio White
• Mounting: Flush-mounted
• Display: Monochrome LCD with backlight
• Operating modes: Comfort, Eco, Night, Frost Protection
• Control interface: Push-button
• Temperature measurement range: 0 °C to 50 °C
• Temperature adjustment range: 5 °C to 30 °C
• Power supply: Via Busch-free@home® bus (24 V DC)
• Current consumption: 15 mA (typical)
• Protection class: IP20
• Material: Thermoplastic (PC)
• Functions: Heating control, cooling control, fan control (via system), setpoint adjustment, timer functions
• Installation: Standard flush-mounted box
• Required accessories: Busch-free@home® system access point, compatible Busch-Jaeger cover frame

Our verdict

A versatile multi-zone controller for Busch-free@home® installations, offering precise temperature management with straightforward push-button operation.
