Busch-Jaeger SCHUKO-pistorasia 20 EUCB-44M Safety+ uppoasennuspistorasia, alppivalkoinen

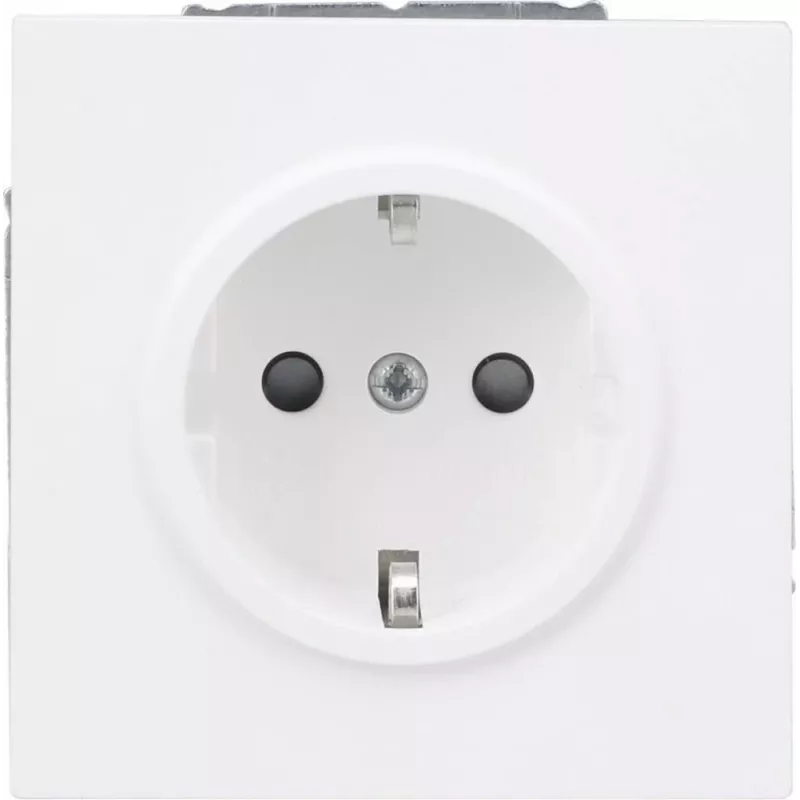

The Busch-Jaeger SCHUKO Socket 20 EUCB-44M Safety+ is a high-quality flush-mounted socket outlet designed for reliable and safe electrical connections. Part of the renowned Busch-Duro 2000® SI design line, this socket combines robust thermoplastic construction with enhanced safety features, making it ideal for residential and commercial installations.

Advantages

This socket offers increased touch protection (child safety) to prevent accidental contact, ensuring a secure environment for homes with children. The plug-in terminals allow for quick and easy installation, while the halogen-free material contributes to fire safety. Its timeless Alpine White finish (RAL 9010) blends seamlessly with any interior decor.

Suitable for

• Standard flush-mounted boxes in walls
• Residential living areas, bedrooms, and kitchens
• Commercial offices and retail spaces
• Installations requiring VDE-certified components

Key specifications

• Socket Type: Schuko (Type F) – 1-gang
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Frequency: 50/60 Hz
• Connection: Plug-in terminals (up to 2.5 mm² rigid conductors)
• Material: Thermoplastic, halogen-free
• Protection Class: IP20
• Installation Depth: Approx. 32 mm
• Colour: Alpine White (RAL 9010)
• Certification: VDE

Recommendations

For a complete and safe electrical installation, pair this socket with compatible Busch-Jaeger frames and switches from the Busch-Duro 2000® SI series. Always ensure installation by a qualified electrician and adhere to local electrical codes.
