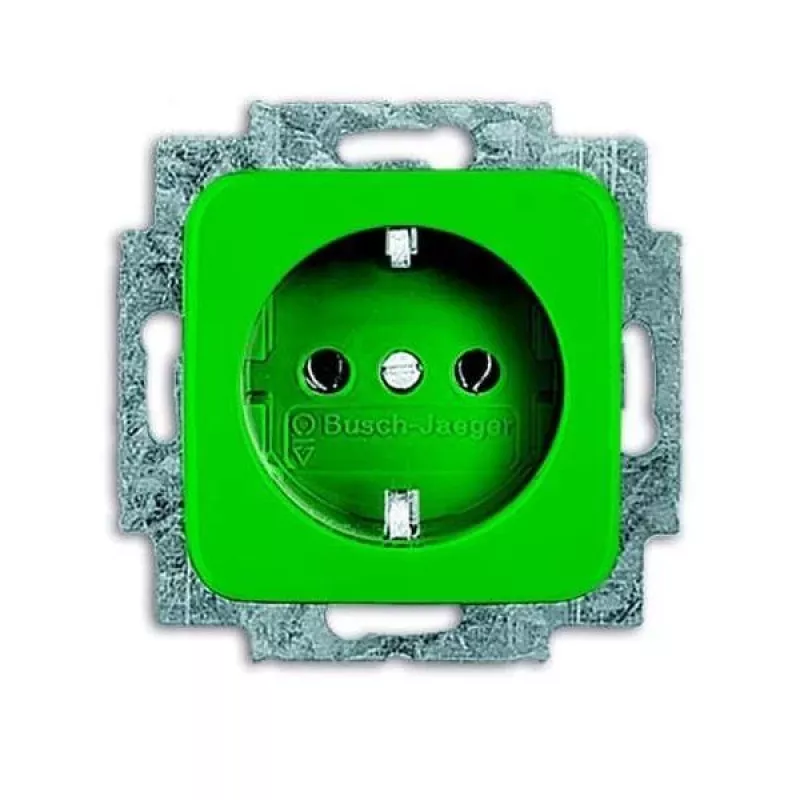

Busch-Jaeger SCHUKO pistorasiaosa vihreä RAL 6032 20 EUCKS-13-212-101 2CKA002013A5468

This SCHUKO socket outlet insert stands out with its green RAL 6032 finish, a colour that blends into protected outdoor settings or adds a distinctive accent indoors. Unlike standard white inserts, it offers a hinged cover for enhanced protection in damp locations.

Highlights

• SCHUKO socket type with earth contact
• Rated at 250 V AC, 16 A
• Hinged cover for IP44 protection when closed
• Flush-mounted installation
• Halogen-free thermoplastic material

In daily use

The insert is designed for flush mounting and connects via screw terminals. It is suitable for indoor and protected outdoor environments where a cover is beneficial. The matt green surface resists fingerprints and blends with coloured switch ranges.

Full specifications

• Socket type: SCHUKO
• Colour: Green (RAL 6032)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• IP protection class: IP44 (with hinged cover)
• Mounting method: Flush-mounted
• Number of sockets: 1
• Cover feature: Hinged cover
• Material: Thermoplastic (PC)
• Halogen-free: Yes
• Surface type: Matt
• Earth contact: Yes
• Application area: Indoor and protected outdoor environments
• Compatibility: Busch-Jaeger switch ranges

Final note

A colour-matched socket insert with a hinged cover, built for reliable power in protected outdoor and indoor areas.
