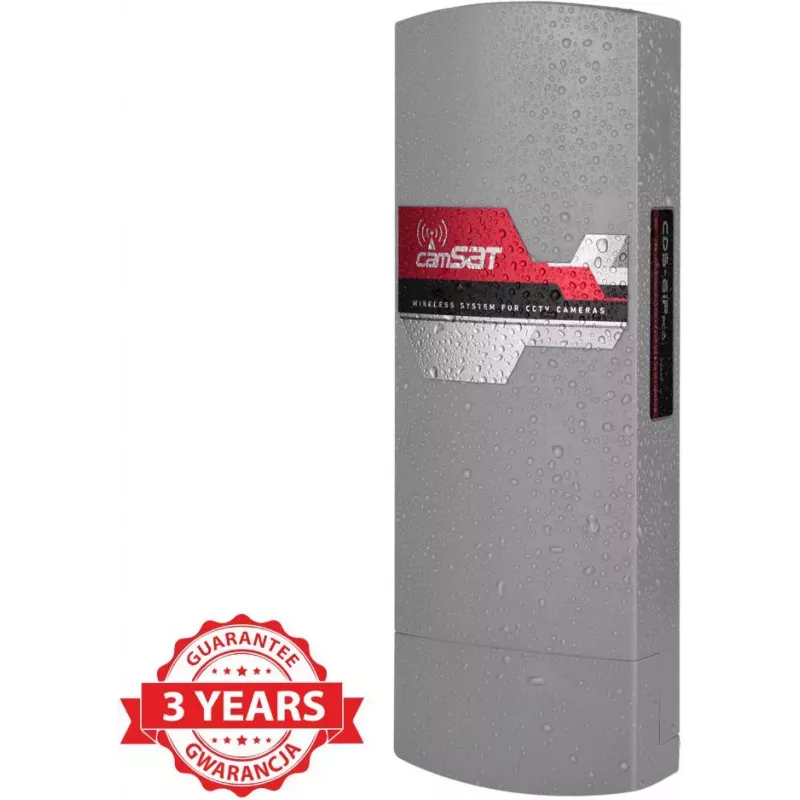

CAMSAT CDS-6IP eco 5,8 GHz tukiasema

The CAMSAT CDS-6IP eco is a 5.8 GHz access point designed for wireless video transmission. It operates in point-to-point and point-to-multipoint modes, supporting IP cameras with resolutions up to 16 Mpix. With a built-in 14 dBi MIMO antenna and a range of up to 2 km, it provides reliable connectivity for surveillance systems.

Key features

• 2 LAN ports (RJ45 10/100 Base-TX)
• 300 Mbps in the air
• 12-63 M bitrate from cameras to recorder
• 5.2-5.6-5.8 GHz frequency, 16 operating channels
• Power supply: 12-24V DC and PoE 24V
• Built-in 14 dBi antenna with 60° angle
• Power 27 dBm (500 mW)
• Range up to 2 km
• IP55 rating
• Supports any IP camera up to 16 Mpix
• WPA-2PSK radio encryption

Specifications

• Brand: Camsat
• MPN: CDS-6IP eco
• Operating modes: point-to-point, point-to-multipoint
• Working mode: VIDEO BRIDGE, MASTER / SLAVE
• Radio band: CE: 5180-5350 MHz; 5470-5725 MHz
• Number of CE operating channels: 16
• Supported resolutions: all IP camera resolutions up to max bitrate 63M, e.g. 16Mpix, 4k, UHD, HD 1080p, others
• IP cameras: 1-16 Mpix (up to 63M bitrate)
• Max. bitrate (total transmission): 63M bitrate – 100m, 59M bitrate – 500m, 48M bitrate – 1000m, 33M bitrate – 1500m, 12M bitrate – 2000m
• LAN inputs/outputs: 2 x LAN (RJ45 10/100 Base-TX)
• PoE - camera power from LAN ports: No (option available in models: CDS-6IP Multi 4PoE, CDS-6IP 3PoE, CDS-EasyIP)
• PoE IN - radio unit powered from PoE switch: No (option available in models: CDS-6IP 3PoE, entire CDS-EasyIP xx family)
• Transmission encryption: 64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK
• Antennas: internal, integrated 14 dBi MIMO (dual polarization H-V), antenna working angle: H-60°, V-25°
• Standard range (with integrated antennas): 2 km
• Output power: 27 dBm (500 mW e.i.r.p.)
• Modulation: digital OFDM
• Power consumption: 11 W
• Power supply: 12V DC 1A and PoE in 24V standard (PoE24 power supply included)
• Operating temperature: -20°C to 70°C
• Ingress protection: IP55
• Dimensions: 88 x 235 x 40 mm
• Camera resolution: 16 Mpix, 30 Mpix, Full HD
• LAN ports: 2
