CCTV-monitori Hikvision DS-D5027F3-2P2S 27" LED 1920 x 1080

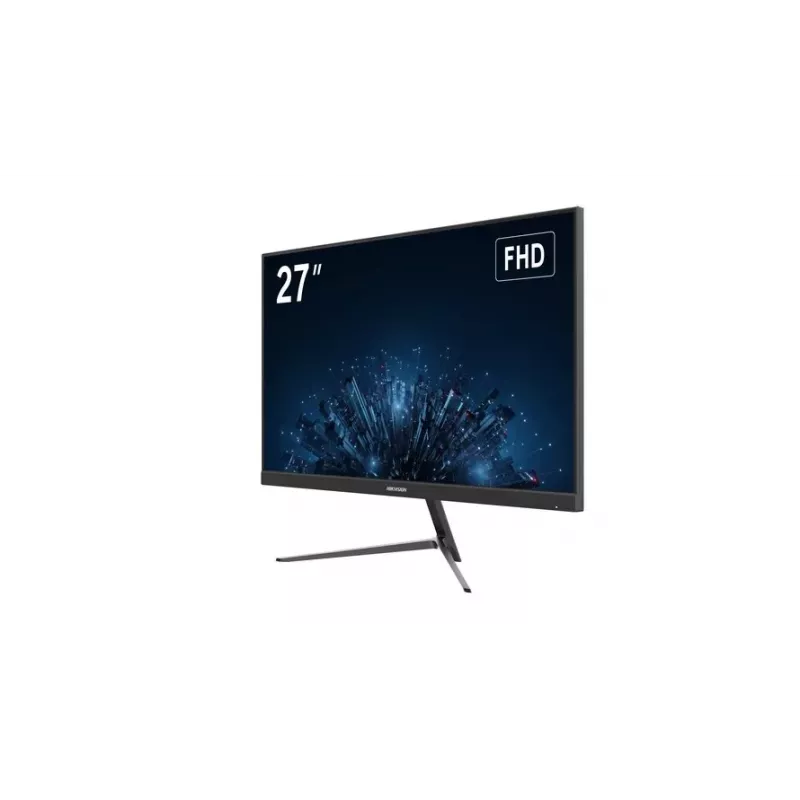

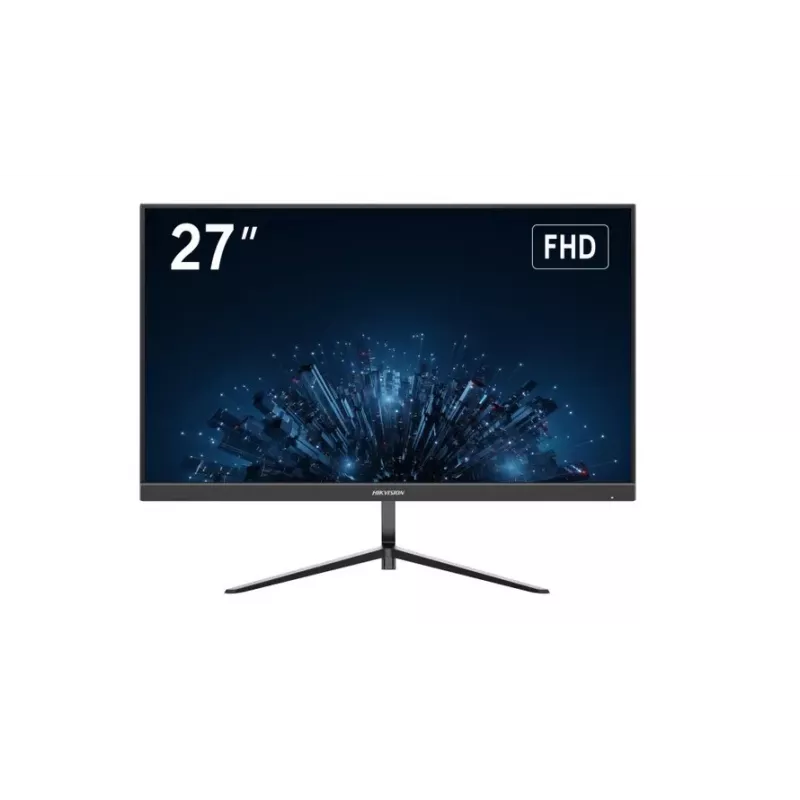

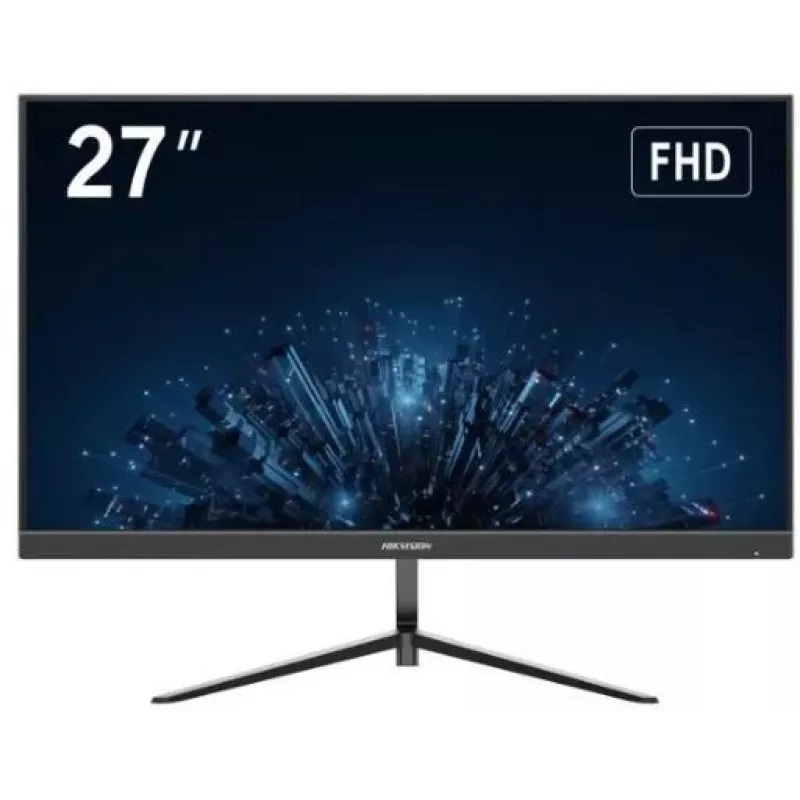

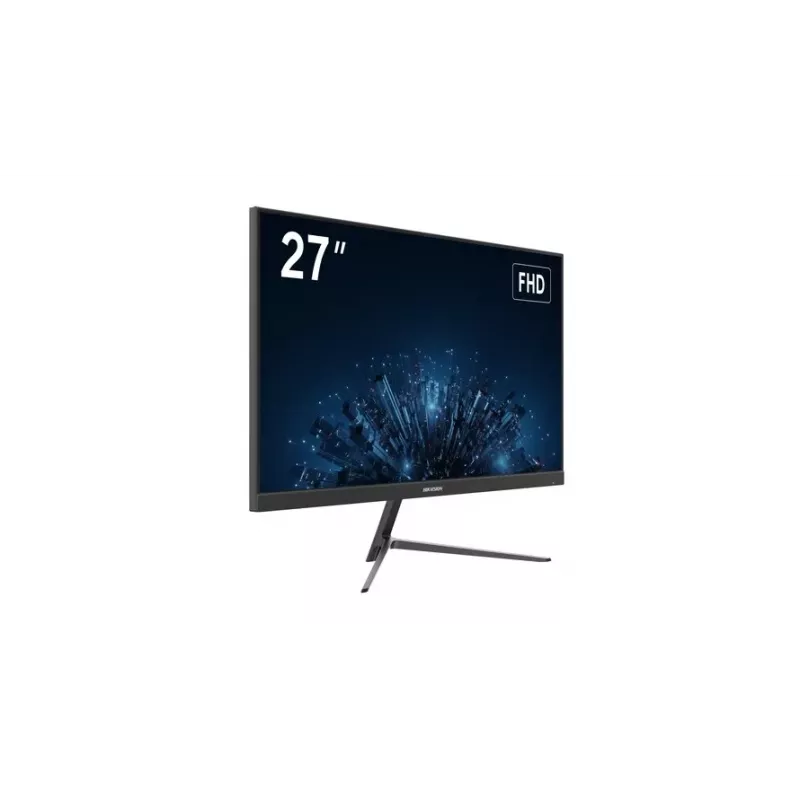

The Hikvision DS-D5027F3-2P2S is a 27" CCTV monitor with an LED IPS panel and a native 1920 x 1080 (Full HD) resolution. Designed for continuous surveillance use, the monitor delivers consistent image clarity and a wide 178° viewing angle suitable for control rooms, security desks and monitoring stations. The unit comes in a freestanding black enclosure, supports VESA mounting and integrates a built-in speaker for basic audio needs.

Advantages

This monitor combines an IPS panel and Full HD resolution to provide accurate color reproduction and wide viewing angles, reducing color shift when observed from different positions. With a typical power consumption of 30 W and a low standby consumption of 0.5 W, it is energy efficient for 24/7 operation. The thin bezel design and flat panel simplify multi-monitor installations and mounting, while the built-in speaker and multiple video inputs increase installation flexibility.

Suitable for

• Security control rooms and surveillance stations
• Reception desks and building monitoring points
• Small to medium CCTV operator workstations
• Wall- or desk-mounted video display for live camera feeds

Key specifications

• Display diagonal: 27"
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS with 178° viewing angle
• Pixel pitch: 0.311 x 0.311 mm
• Response time: 14 ms
• Contrast ratio (typical): 1300:1
• Refresh rate: 100 Hz
• Speakers: built-in (4 W total reported as 2W*2)
• Power consumption (typical): 30 W; standby: 0.5 W
• Product colour: Black

How to use

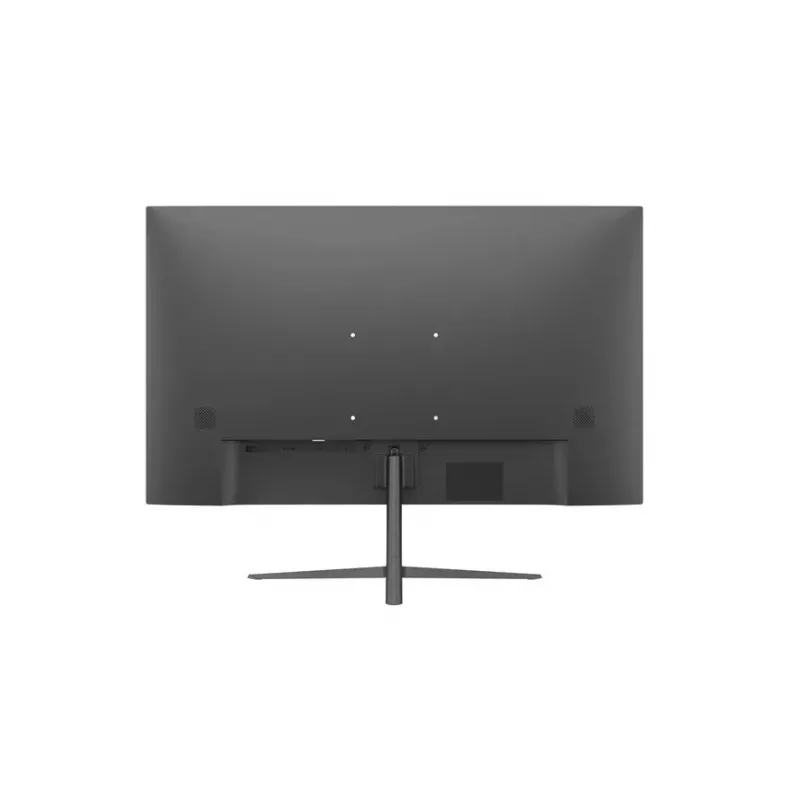

Place the monitor on a stable desk surface or attach it to a VESA-compatible mount using the 100 x 100 mm interface. Connect video sources via the available HDMI or VGA input(s) and power the unit using the supplied power cable. Adjust on-screen settings such as brightness, contrast and input selection through the monitor's on-screen display menu to match ambient lighting and camera signal characteristics. Use the built-in speaker for basic audio monitoring or integrate external audio if higher fidelity is required.

Recommendations

For extended 24/7 surveillance operation, set brightness and contrast to levels that provide clear image detail while minimizing power use and heat. Position the monitor to take advantage of the wide viewing angle and avoid direct reflections from overhead lighting. Perform periodic firmware and cable checks and allow adequate ventilation around the enclosure to maintain stable performance.
