Chief RLT3 TV-teline 2,18 m musta enintään paino 90,7 kg

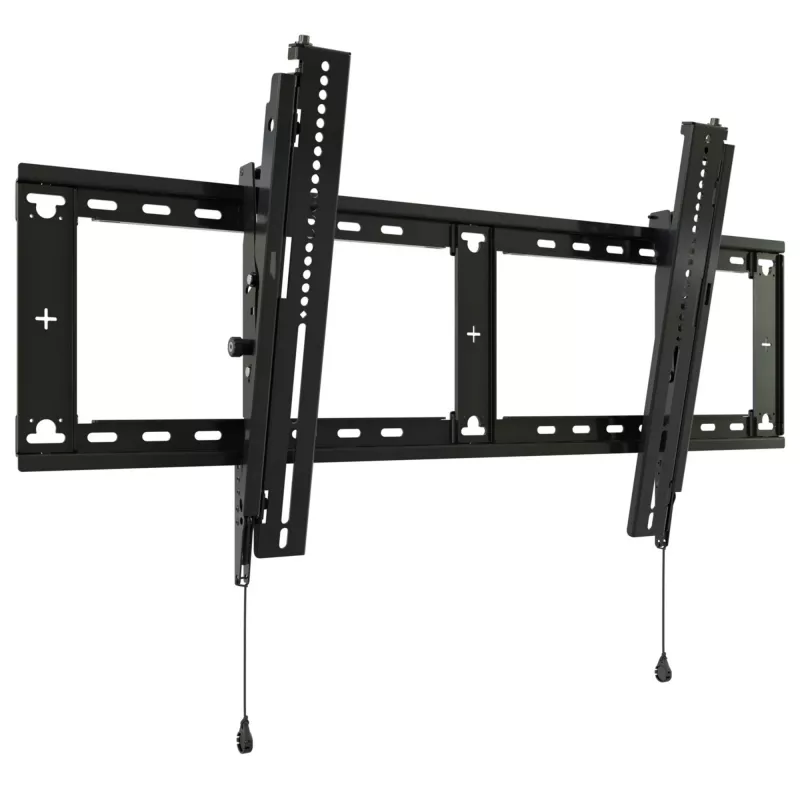

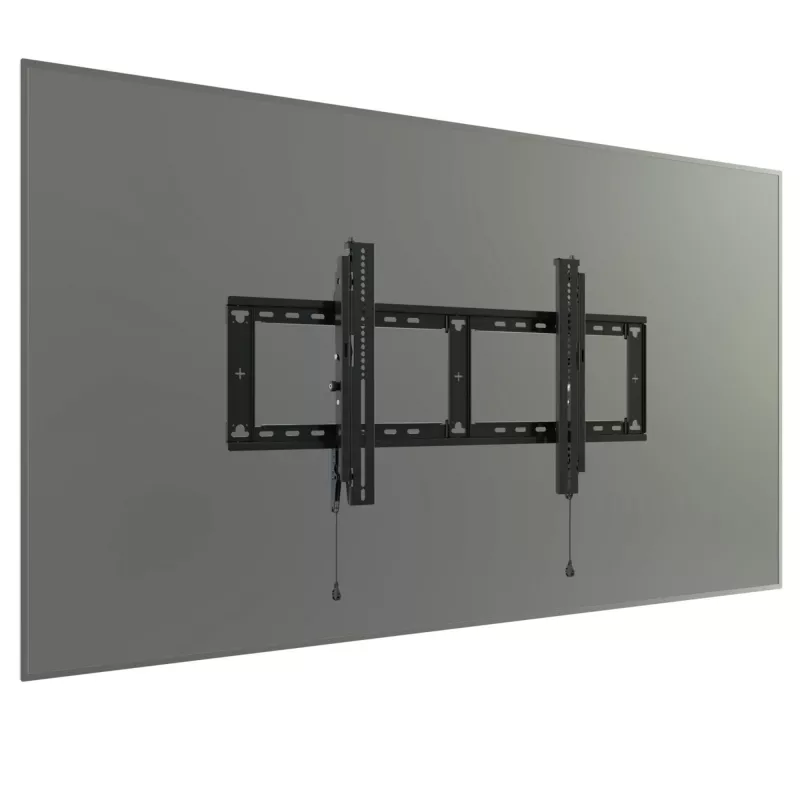

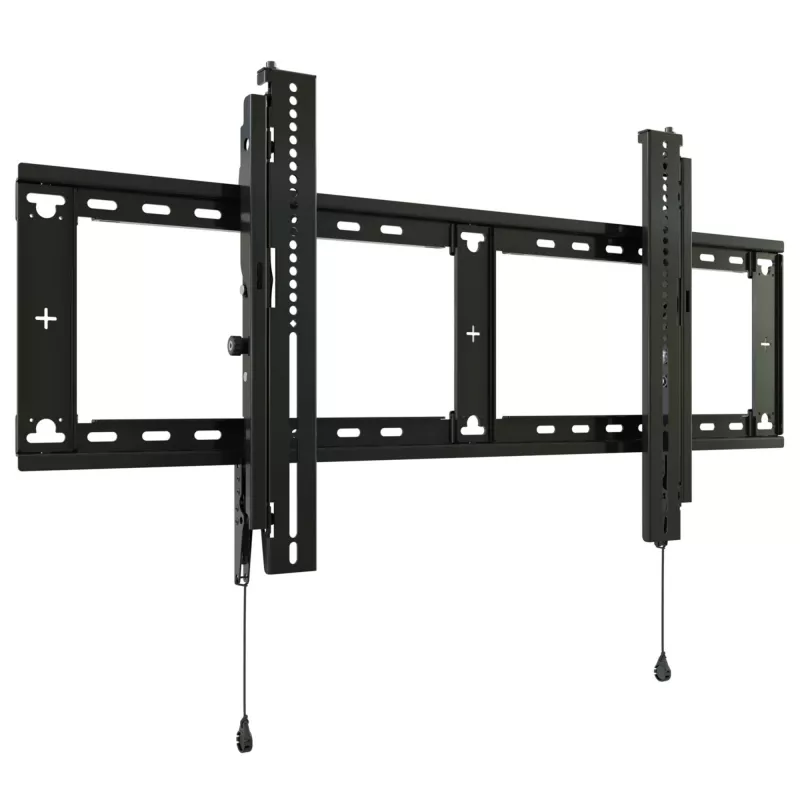

The Fit series RLT3 is a large tilt display wall mount designed for 43" to 86" displays, supporting VESA mounting patterns up to 915 x 450 mm. The mount has a low-profile 2" (51 mm) depth and a robust wall plate capable of supporting up to 200 lbs (90.7 kg). It is certified to UL and TUV safety standards and provides post-installation leveling for precise alignment.

Advantages

The Chief RLT3 offers tool-free post-installation leveling of up to 0.75" (19 mm), a sturdy wall plate constructed to handle heavy displays, and a slim profile that reduces the distance between the display and the wall. The design allows a tilt range of up to 12° for optimized viewing angle and is compatible with large VESA patterns up to 915 x 450 mm.

Suitable for

• Mounting large LED/LCD screens from 43" to 86"
• Professional AV installations in offices, meeting rooms, and public spaces
• Home theatres and residential wall-mounted displays
• Environments requiring certified safety standards (UL, TUV)

Key specifications

• Maximum screen size: 86"
• Maximum VESA mount: 915 x 450 mm
• Maximum weight capacity: 90.7 kg (200 lbs)
• Depth from wall: 51 mm (2")
• Tilt range: up to 12° (tilt down -12° to 0°)
• Colour: Black
• Supported displays: 1

How to use

Install the wall plate on a suitable structural surface following local building codes. Attach the compatible VESA brackets to the display, hang the display on the mounted wall plate, then use the post-installation leveling feature to adjust up to 0.75" (19 mm) for precise alignment. Finally, set the tilt within the available range (up to 12°) to achieve the desired viewing angle and verify all fasteners are secure.

Recommendations

Ensure the mounting surface and anchors are rated for the combined weight of the mount and display. For safety and warranty compliance, follow UL and TUV guidelines and consult a qualified installer when mounting heavy or large-format displays.
