Cimco 187441 johdinpääteholkki 6 mm² eristämätön tinattu 250 kpl

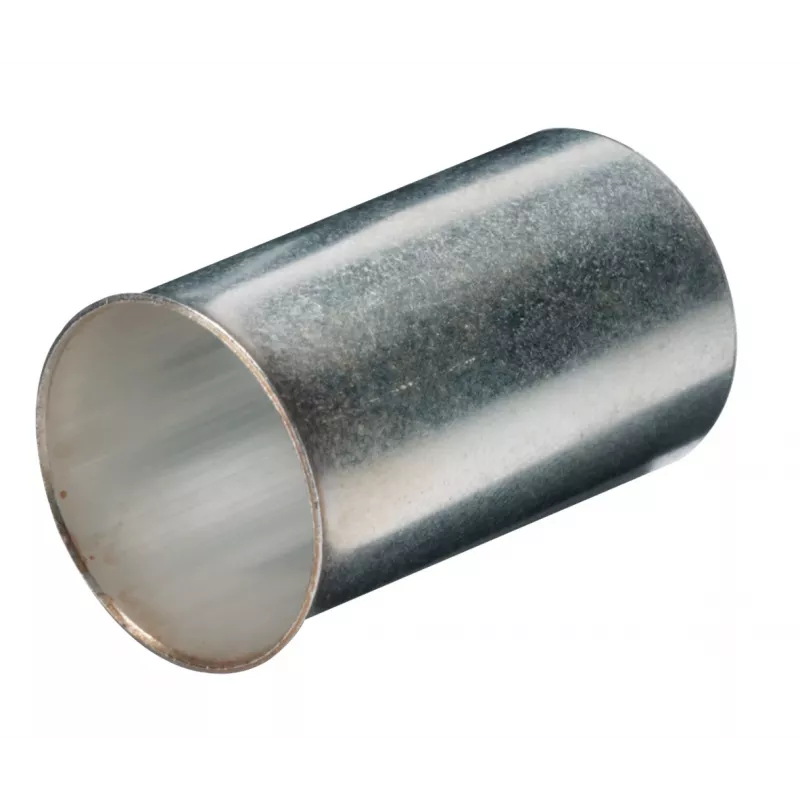

For secure, gas-tight terminations on fine-stranded copper conductors, this Cimco wire end ferrule features a flared entry that guides individual strands smoothly into the barrel. Unlike standard ferrules, the tin-plated surface offers enhanced corrosion resistance and reliable crimping without insulation, making it suitable for compact terminal spaces.

Highlights

• Uninsulated tubular ferrule for 6 mm² conductors
• Tin-plated electrolytic copper for corrosion resistance
• Flared entry simplifies wire insertion
• Pack of 250 pieces

In daily use

When preparing flexible conductors for screw terminals or spring-clamp connections, the ferrule prevents strand splaying and ensures a durable, vibration-resistant joint. Its compact 12 mm length fits easily into tight wiring spaces, and the tin plating maintains low contact resistance over time.

Full specifications

• Product Type: Wire End Ferrule
• Insulation Type: Uninsulated
• Nominal Cross-Section: 6 mm²
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Length: 12 mm
• Standard: DIN 46228 Part 1
• Connection Method: Crimp
• Conductor Compatibility: Fine-stranded and multi-stranded copper conductors
• Color: Metallic (Tin)
• Pack Quantity: 250 pieces
• Shape: Tubular
• Application: Electrical wiring termination, preventing splaying of wire strands
• Corrosion Resistance: Yes (due to tin plating)
• RoHS Compliant: Yes
• Flared Entry: Yes (for easy wire insertion)

Final note

A reliable choice for professional electrical installations where uninsulated ferrules are required.
