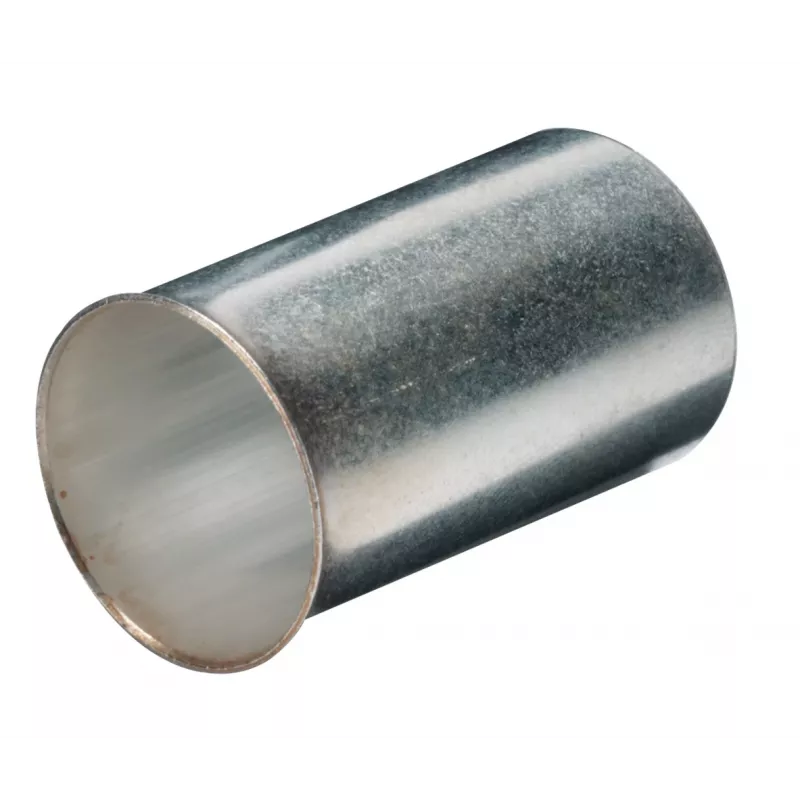

Cimco 187453 eristämätön johdinpääteholkki 16 mm², tinattu kupari, 100 kpl

Electricians and panel builders rely on these uninsulated tubular ferrules to terminate fine-stranded conductors up to 16 mm². The tin-plated electrolytic copper sleeve is pressed with a crimping tool to form a gas-tight connection that prevents strand breakage and ensures reliable contact in terminal blocks and industrial controls.

Key specifications

• Conductor cross-section: 16 mm²
• Insulation: uninsulated
• Material: electrolytic copper, tin-plated
• Sleeve length: 12 mm
• Overall length: 18 mm
• Inner diameter: 5.8 mm
• Outer diameter: 6.5 mm
• Colour: metallic silver
• Packaging quantity: 100 pieces
• Standard: DIN 46228 Part 1
• Application: fine-stranded and super fine-stranded conductors
• Temperature range: -40 °C to +105 °C
• Voltage rating: max. 600 V

Why choose it

The tin plating provides corrosion resistance, and the copper construction ensures excellent conductivity. The ferrule is halogen-free and RoHS compliant, making it suitable for use in environments where material restrictions apply.

Ideal use cases

• Terminating flexible conductors in industrial control panels
• Preparing wire ends for screw, spring, or plug-in connections
• Preventing strand breakage in vibrating environments

Good to know

The ferrule complies with DIN 46228 Part 1 for dimensions and performance. It is designed for use with fine-stranded conductors and requires a suitable crimping tool for proper installation.
