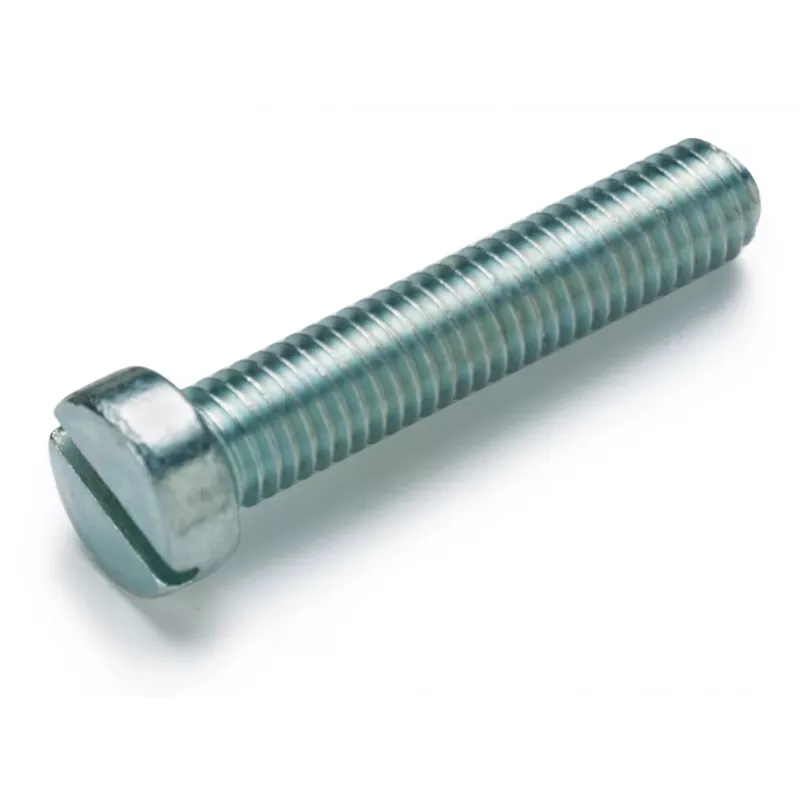

CIMCO 190862 lieriökantainen ruuvi M5 x 16 mm DIN 84a sinkitty uraruuvi

For securing components in machinery, electrical panels, and general assembly work, the CIMCO 190862 cylinder head screw provides a reliable fastening solution. Its M5 metric coarse thread and 16 mm shank length suit a wide range of applications where a low-profile, slotted drive head is preferred.

Key specifications

• Thread size: M5
• Shank length: 16 mm
• Standard: DIN 84a
• Drive type: Slotted
• Material: Steel, zinc-plated
• Head diameter: 9.5 mm
• Head height: 3.3 mm
• Thread pitch: 0.8 mm
• Tensile strength class: 4.8

Why choose it

The zinc-plated finish offers moderate corrosion resistance, making the screw suitable for indoor use and protected environments. The slotted drive allows tightening with a standard flat-blade screwdriver, and the cylinder head provides a clean, finished appearance.

Ideal use cases

• General-purpose fastening in metal and plastic
• Electrical and mechanical assembly
• Repair and maintenance tasks

Good to know

Sold as a single unit. The screw conforms to DIN 84a, ensuring consistent dimensions and interchangeability.
