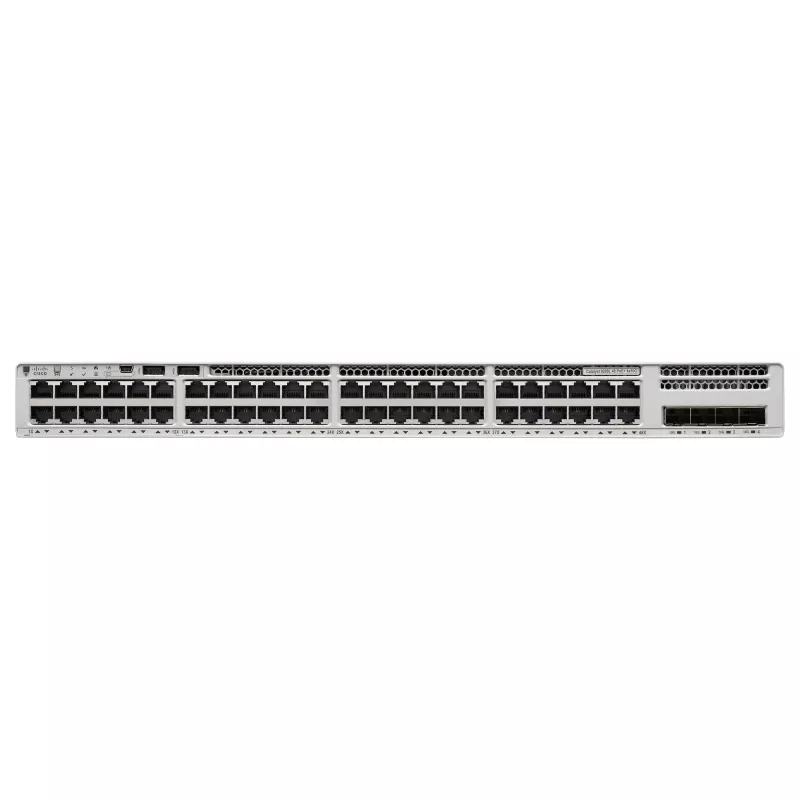

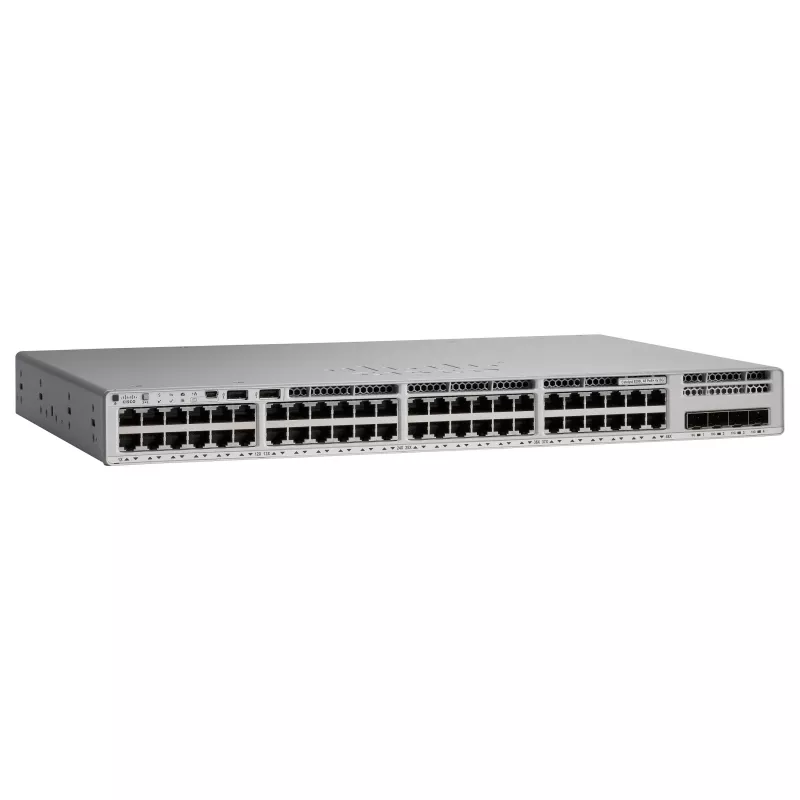

Cisco Catalyst 9200L 48-porttinen Partial PoE+ 4x10G Network Essentials -kytkin

Modern enterprise access networks face increasing demands for power delivery, performance, and security. The Cisco Catalyst 9200L 48-port switch addresses these challenges by combining 48 Gigabit Ethernet ports with partial PoE+ support and four 10G uplinks, all managed through Cisco's Network Essentials software.

Who is it for

This switch is ideal for medium to large enterprise branch offices, campus access layers, and distributed sites that require reliable connectivity for endpoints such as IP phones, wireless access points, and surveillance cameras, while maintaining a cost-effective footprint.

Main features

• 48 x 10/100/1000Base-T ports with IEEE 802.3at PoE+ support and a 370 W power budget
• 4 x 10G SFP+ uplink ports for high-speed aggregation
• Layer 3 managed capabilities with Network Essentials license
• Stackable design with Cisco StackWise-160 technology (optional module)
• Advanced security including MACsec, TrustSec, DHCP snooping, and Dynamic ARP Inspection
• Comprehensive management via CLI, SNMP, web, NETCONF, and RESTCONF

Specifications

• Switching capacity: 104 Gbps
• Forwarding performance: 154.76 Mpps
• MAC address table: 16000 entries
• Jumbo frame support: 9198 bytes
• RAM: 2 GB, Flash: 4 GB
• Form factor: Rack-mountable 1U
• Power supply: Internal AC 120/230 V (50/60 Hz)
• Routing protocols: OSPF, EIGRP, RIP, PIM, VRRP, HSRP

Tips

To fully leverage the switch's capabilities, plan your PoE budget carefully and consider stacking multiple units for simplified management and increased resiliency.
