CLUB3D 1–4 HDMI™ -jakaja 4K120Hz

The Club 3D CSV-1385 is a compact, metal-housed HDMI™ splitter that distributes a single HDMI input to four identical HDMI outputs. It supports high-performance audio and video transmission up to 4K at 120Hz and requires an external 5V 2A DC power supply (100–240VAC input). The device preserves the input signal characteristics and outputs four duplicated streams simultaneously.

Advantages

The HDMI Splitter CLUB3D 1 to 4 4K120Hz provides four mirrored HDMI outputs from one source without scaling or format conversion, maintaining up to 4K@120Hz where supported by the source and displays. Its metal casing and compact design offer durable protection and a small footprint for installation in home or office setups. Hot-plug support allows displays to be connected or disconnected without powering down the source.

Suitable for

• Home cinema setups where one player or console feeds multiple TVs or projectors
• Gaming environments requiring the same HDMI output on several screens
• Retail or exhibition displays that show identical content on multiple monitors

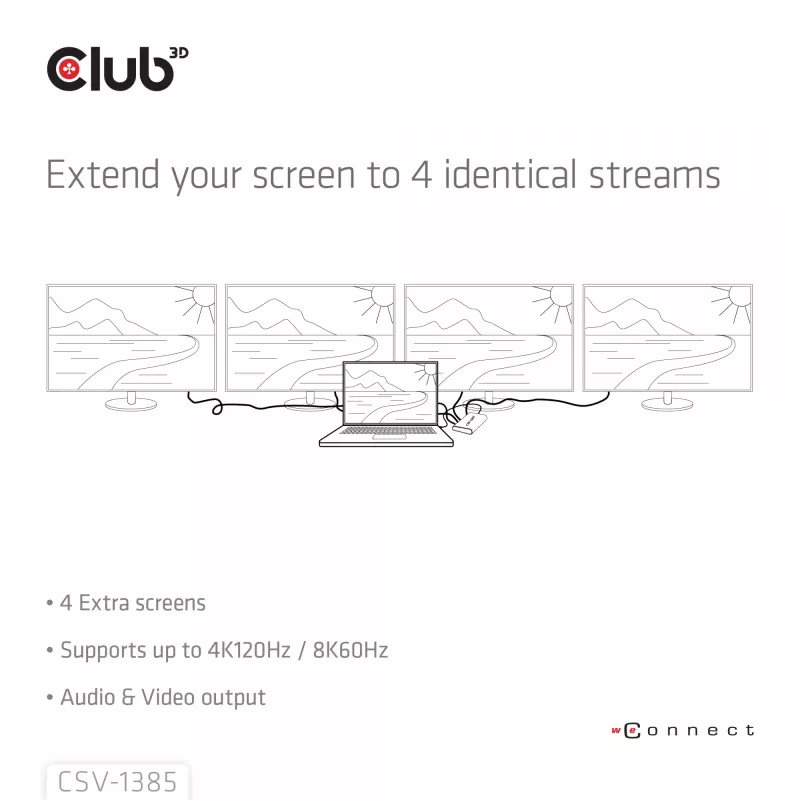

• Offices or meeting rooms distributing a presentation from one laptop to several displays

Key specifications

• Model: CSV-1385
• Brand: club 3d
• Inputs: 1 × HDMI
• Outputs: 4 × HDMI
• Maximum resolution: up to 4K (3840 × 2160) at 120Hz (where supported)
• Power: external 5V ⎓ 2A DC (100–240VAC input adapter)

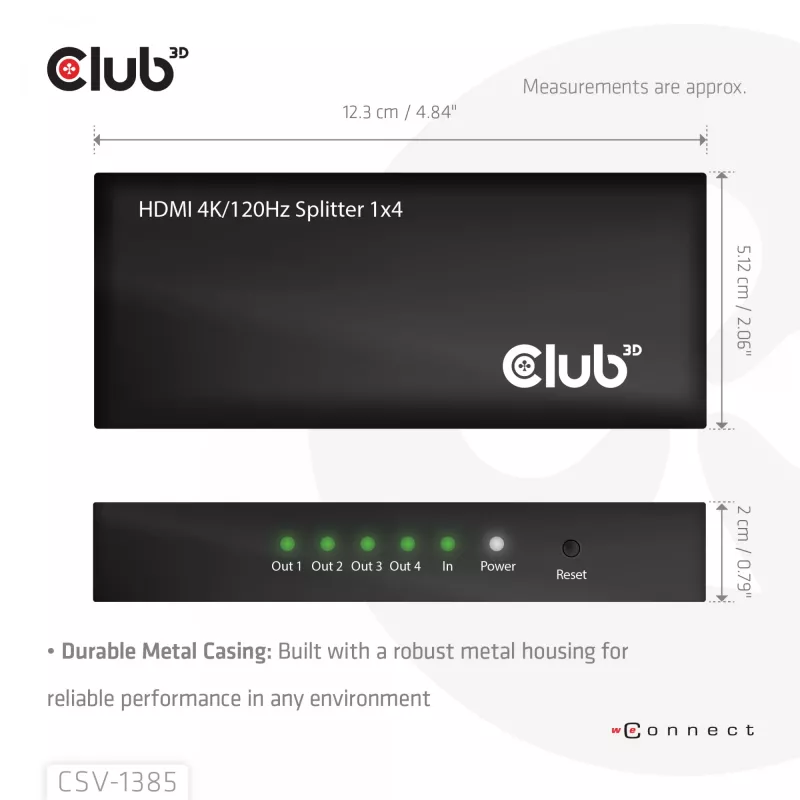

• Housing: metal (black)
• EAN: 8719214473198

How to use

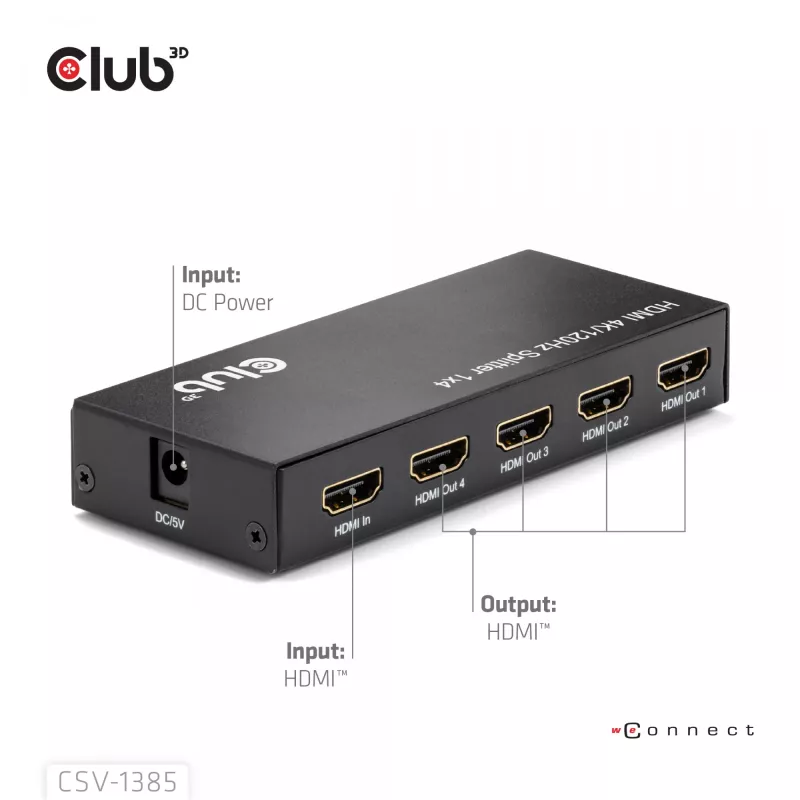

Connect an HDMI source (Blu‑ray player, console, PC, etc.) to the splitter's HDMI input, then connect up to four displays to the HDMI output ports using HDMI cables. Attach the supplied external power adapter to the splitter and connect it to mains power. Turn on the source and displays; the splitter will duplicate the input signal to all connected outputs. Ensure cables and displays support the target resolution and refresh rate for best results.

Recommendations

Use high-quality HDMI cables rated for the desired resolution and refresh rate (HDMI 2.1 or equivalent for 4K@120Hz). Verify that both the source and displays support 4K@120Hz; if not, the splitter will output at the highest common supported resolution. Place the splitter in a ventilated location and avoid exposing it to moisture or extreme temperatures.
