CLUB3D DisplayPort - Dual Link DVI-D HDCP ON versio aktiivinen sovitin M/F

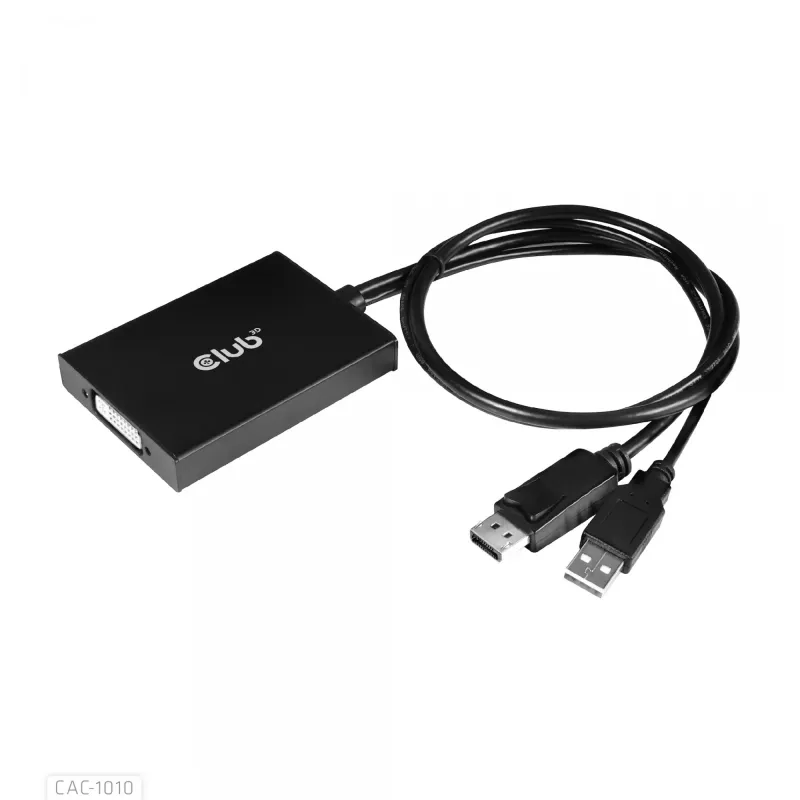

The CAC-1010 is a DisplayPort™ to Dual Link DVI signal format converter that includes a USB Type A connection for power. It allows a DisplayPort™-based source to connect to conventional DVI displays such as CRTs, LCD monitors and projectors, and supports resolutions up to 2560 x 1600 @ 50Hz for 30-inch Apple™ Cinema Display or 2560 x 1440 @ 60Hz on other compatible displays.

Advantages

The adapter provides compatibility between modern DisplayPort™ sources and legacy Dual Link DVI displays without requiring display hardware changes. It supports high-resolution output for widescreen and professional monitors and is powered via USB Type A for easy integration into setups without extra power supplies. The device is suitable for use in home entertainment systems, conference rooms, classrooms and corporate training environments.

Key specifications

• Input: DisplayPort™
• Power: USB Type A (for power only)
• Output: Dual Link DVI
• Maximum supported resolution: 2560 x 1600 @ 50Hz (e.g., 30" Apple™ Cinema Display)
• Alternative high resolution: 2560 x 1440 @ 60Hz on other compatible displays
• Compatible displays: CRT, LCD monitors, projectors

How to use

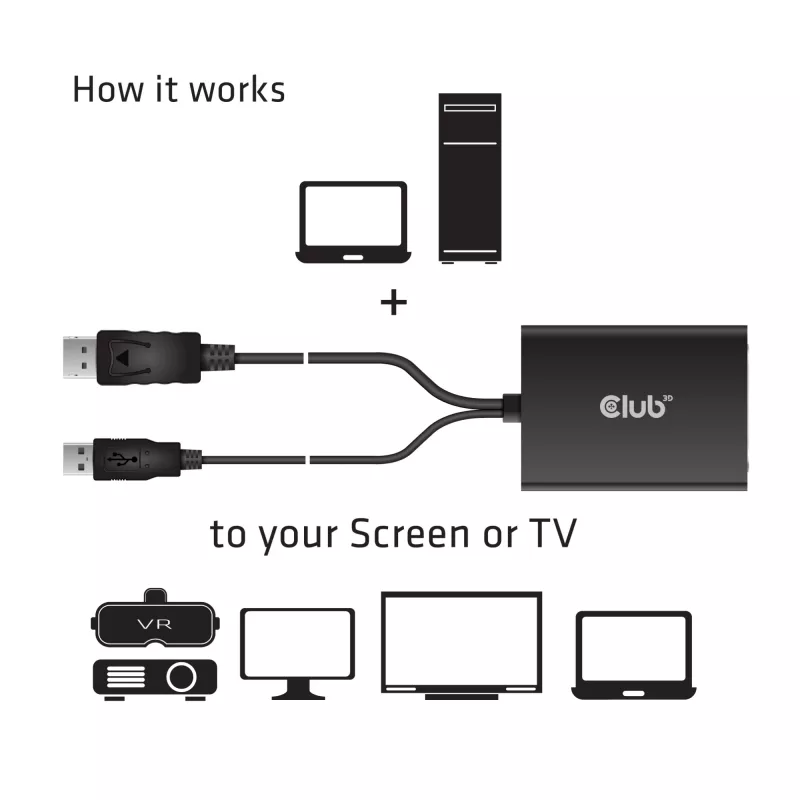

Connect the CAC-1010 DisplayPort™ end to the source device, connect the Dual Link DVI end to the DVI input on the display, and plug a USB Type A cable into the adapter and a USB power source to supply power. After connections are made, select the appropriate input on the display and adjust the display resolution in the source device settings to one of the supported resolutions.

Recommendations

Use a quality Dual Link DVI cable to ensure reliable high-resolution transmission and confirm that the target display supports the requested resolution and refresh rate. For stable operation, use a USB port or power adapter that can supply sufficient current as specified by the adapter manufacturer.
