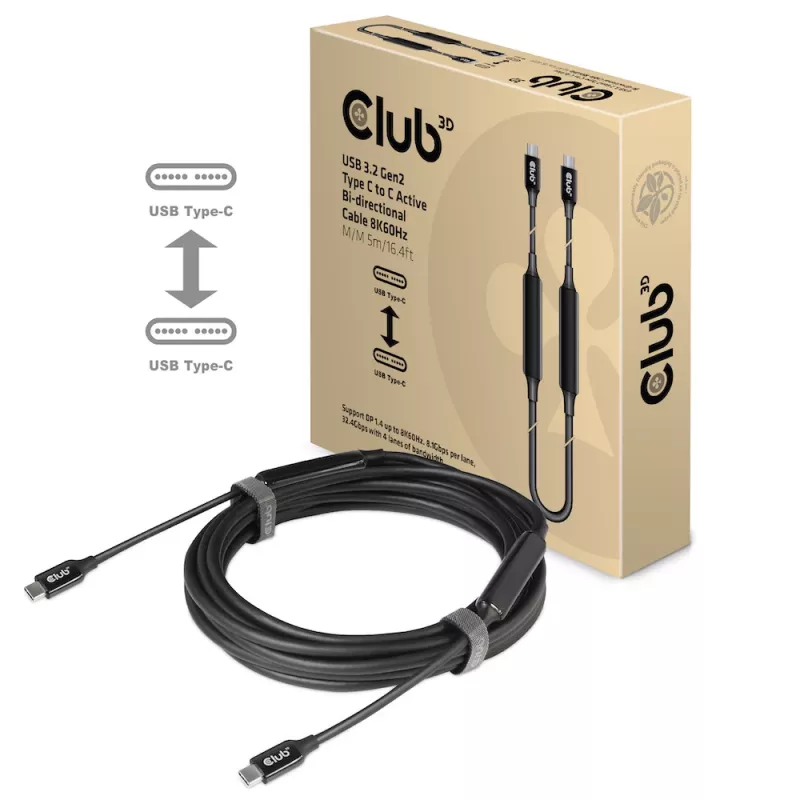

CLUB3D USB 3.2 Gen2 Type C to C Active Bi-directional kaapeli 8K60Hz M/M 5m/16.4ft

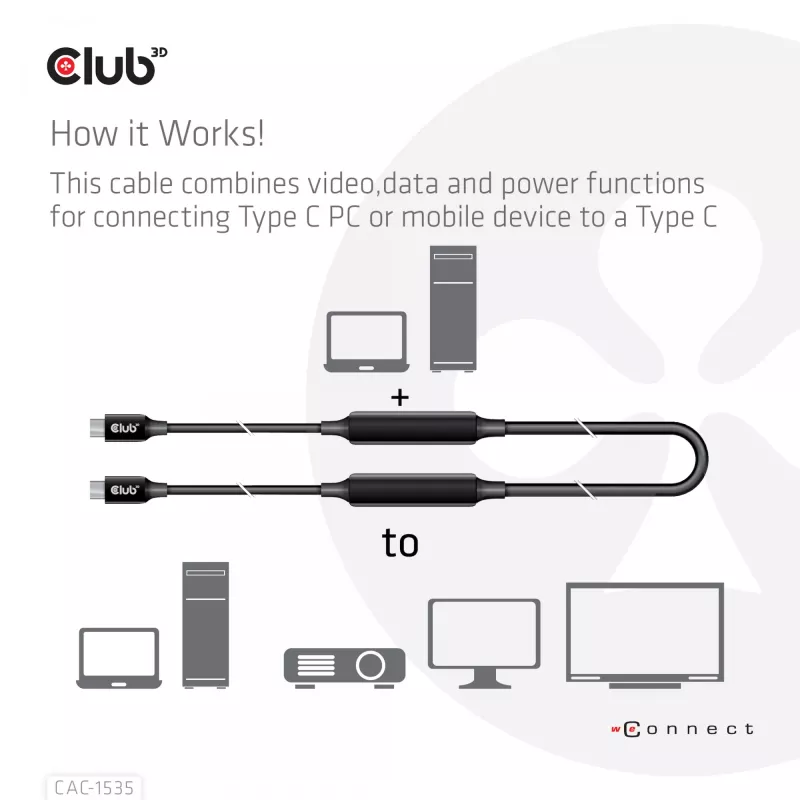

The CLUB3D CAC-1535 is a 5 m USB Type-C to USB Type-C active bi-directional cable with an integrated re-timer chipset. It combines video, data and power over a single cable and is designed to connect USB-C hosts or mobile devices to USB-C displays, VR headsets, external drives, docks or PD chargers. The cable supports DisplayPort Alt Mode 1.4 (downwards compatible) for video, USB 3.2 Gen 2 for data, and Power Delivery up to 60 W (20 V / 3 A).

Advantages

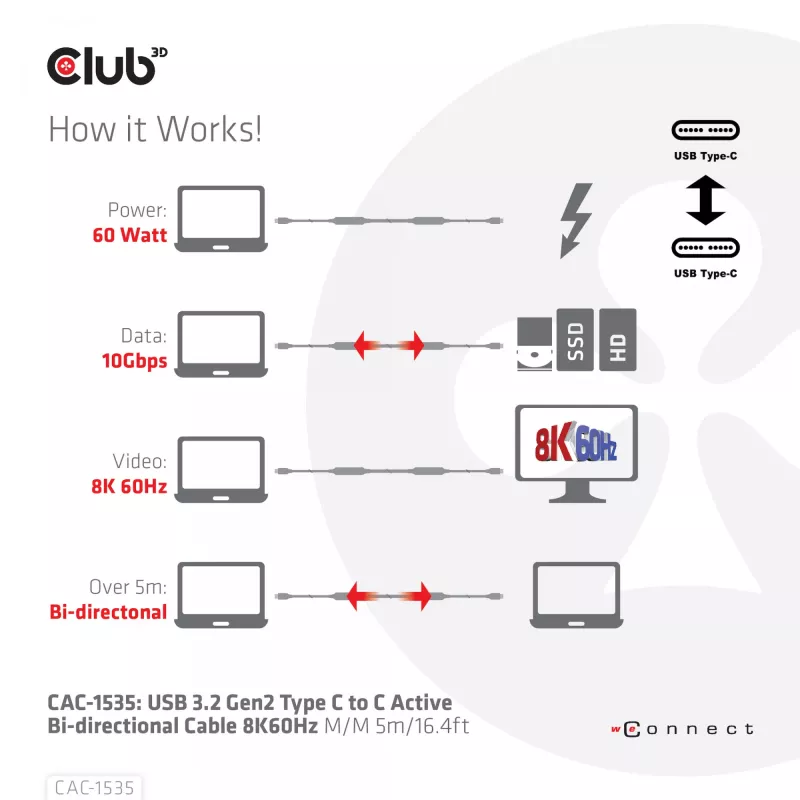

The active cable uses a re-timer chipset to maintain signal integrity over a 5 m length, enabling up to 8K@60Hz video (theoretical, limited by connected devices) while providing up to 10 Gbps data transfer via USB 3.2 Gen 2 and up to 60 W PD charging. Being bi-directional, it can be used in either direction between host and device, and its USB-C to USB-C connectors offer a single-cable solution for video, data and power.

Suitable for

• Connecting a USB-C laptop or mobile device to a USB-C monitor or VR headset that supports DisplayPort Alt Mode
• Connecting external USB-C storage or docks requiring USB 3.2 Gen 2 speeds
• Powering or charging devices up to 60 W from a PD-capable charger or dock

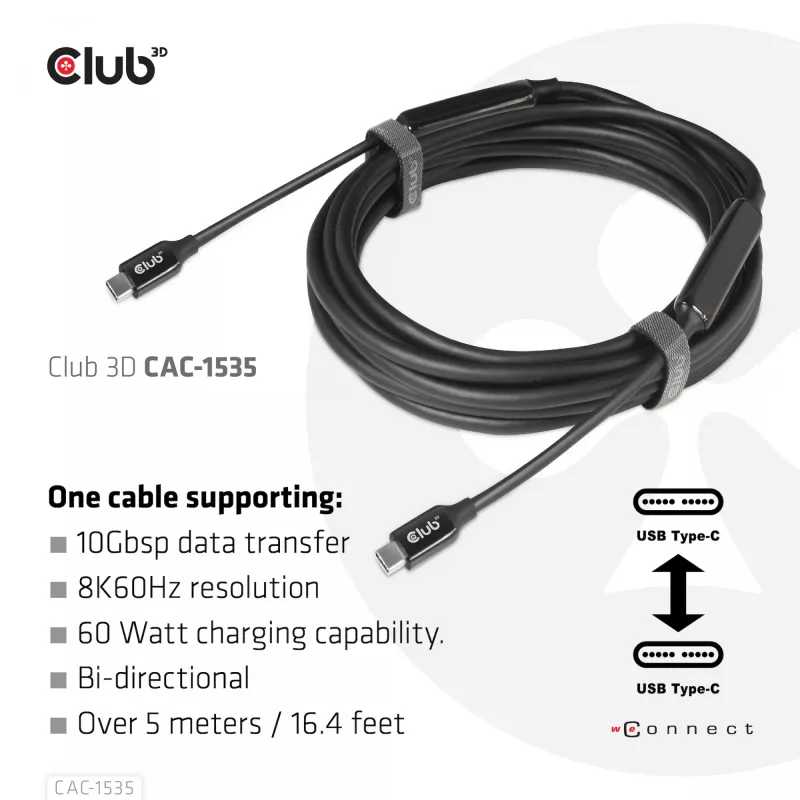

Key specifications

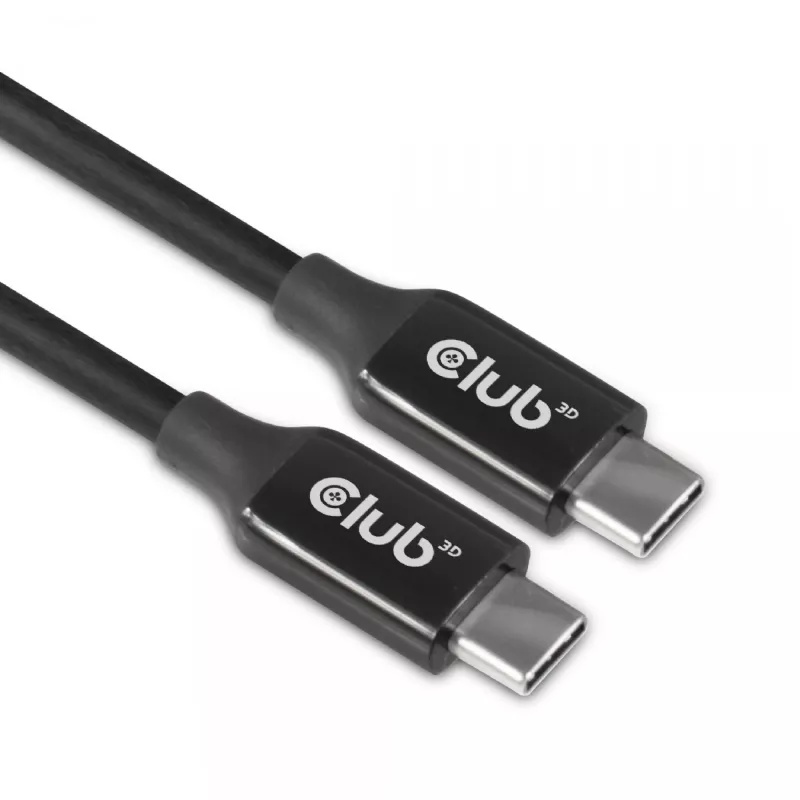

• Connector type: USB Type-C to USB Type-C

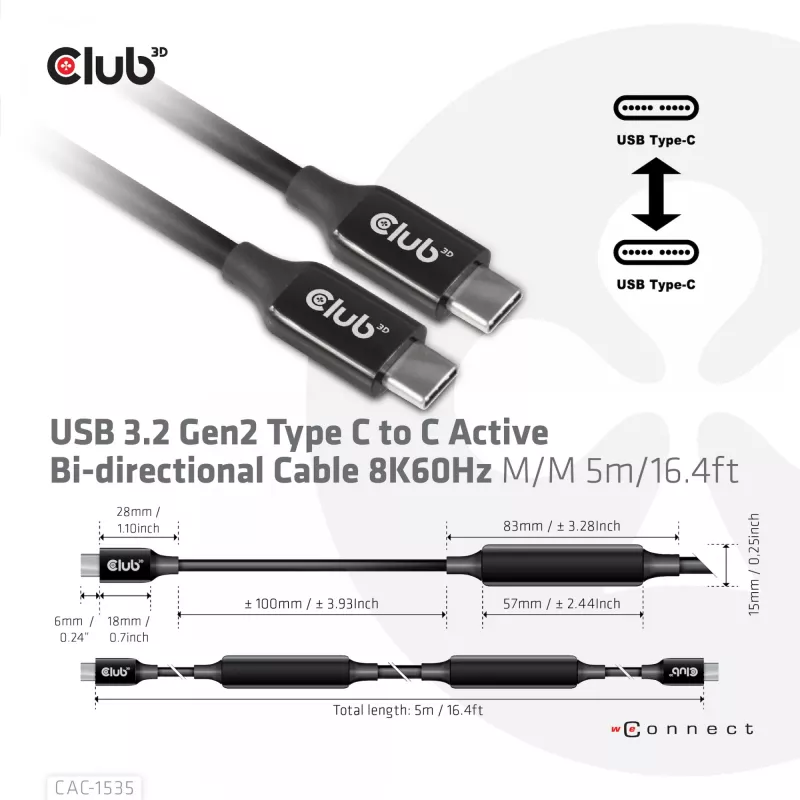

• Length: 5 m
• Video: DisplayPort Alt Mode 1.4, up to 8K@60Hz (theoretical, device-dependent)
• Data: USB 3.2 Gen 2 (up to 10 Gbps)
• Power Delivery: up to 60 W (20 V / 3 A)

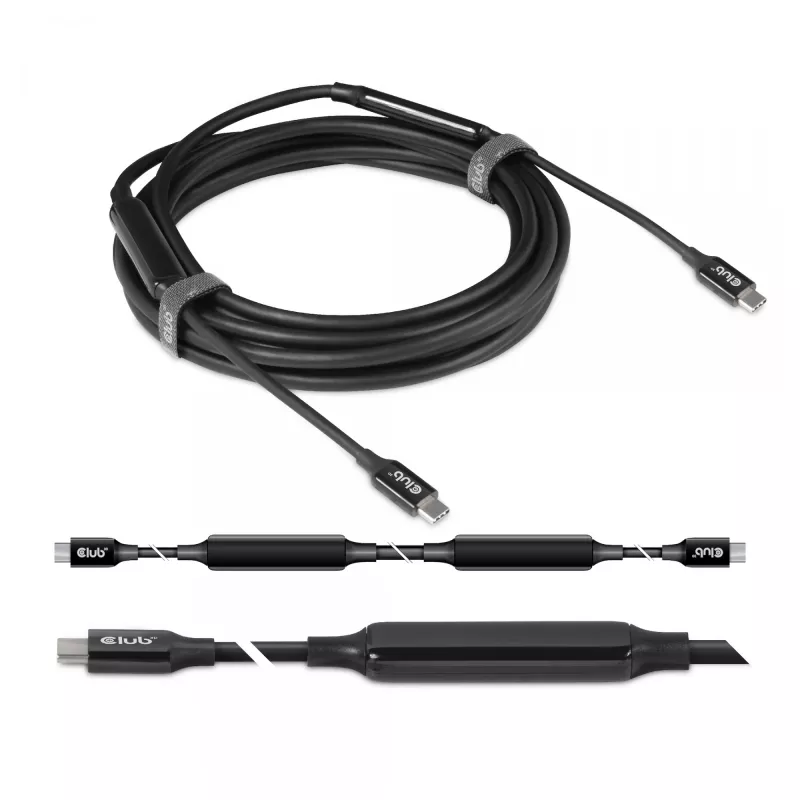

• Bi-directional active cable with re-timer chipset
• Color: Black

How to use

Ensure both connected devices support the required functions (for video, DisplayPort Alt Mode 1.4 or compatible). Plug one USB-C connector into the host (laptop, phone, or source) and the other into the target device (monitor, VR headset, dock, external drive or PD charger). The cable negotiates data and power automatically according to device capabilities; video output will follow DisplayPort Alt Mode if supported by both ends.

Recommendations

Use with devices that explicitly support DisplayPort Alt Mode 1.4 to achieve the described video performance; actual resolution, refresh rate and power delivery depend on the capabilities and settings of the connected devices.
