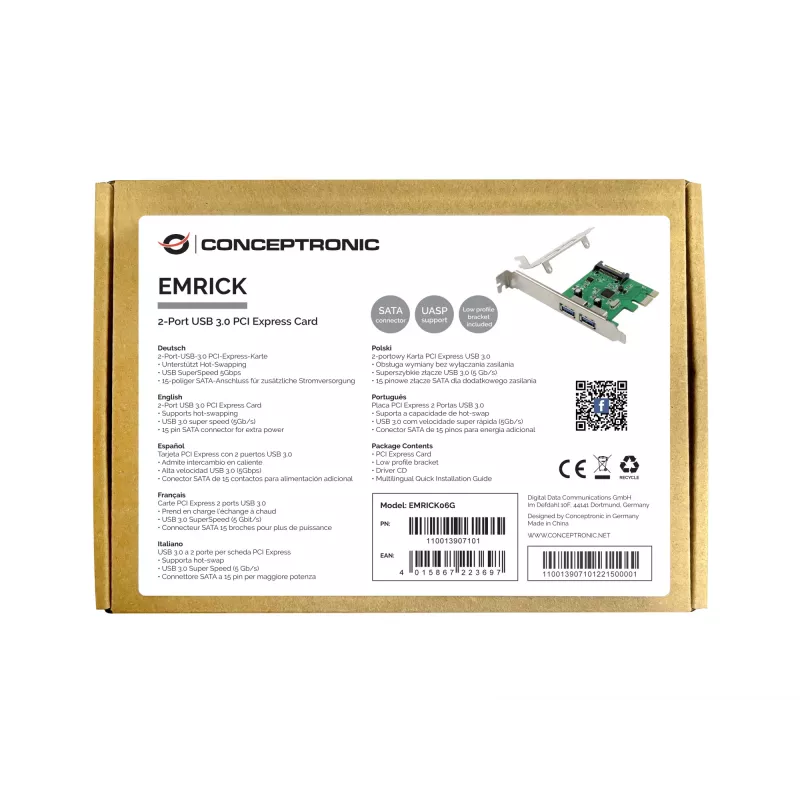

Conceptronic EMRICK 2-porttinen USB 3.0 PCIe-kortti

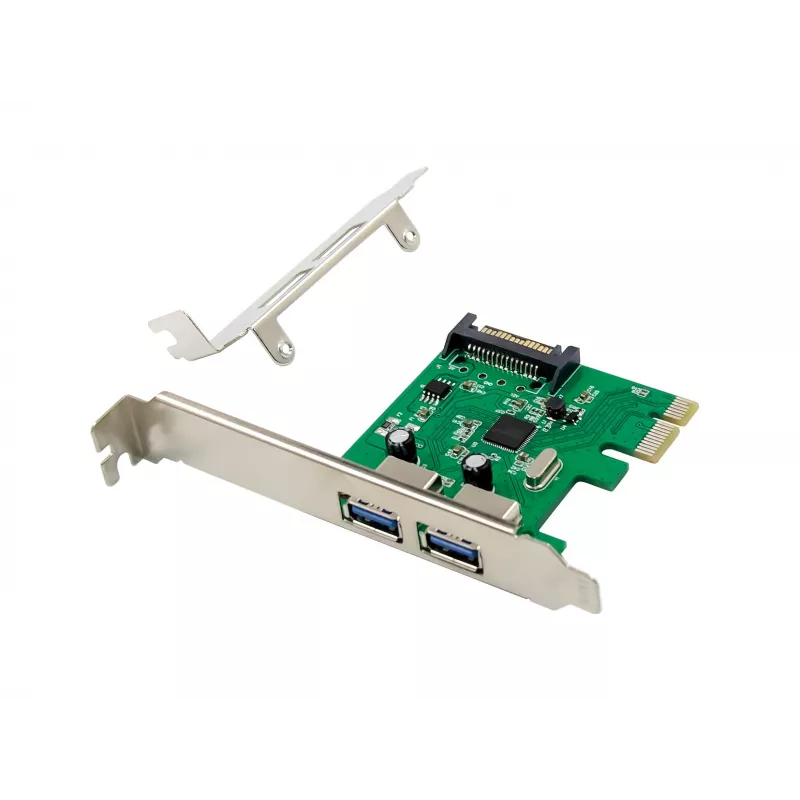

The Conceptronic EMRICK 2-Port USB 3.0 PCIe Card adds two SuperSpeed USB 3.0 ports to a desktop PC, providing up to 5 Gbit/s transfer rates. It uses a PCIe host interface and meets PCI 2.0 standards, with compact dimensions (61 × 65 × 20 mm) and an internal design in green colour. The card is compatible with common Windows operating systems, including Windows 10.

Advantages

This PCIe card expands a desktop computer with two USB 3.2 Gen 1 (USB 3.0) ports, enabling faster file transfers compared with USB 2.0. Its PCIe host interface ensures direct connectivity to the motherboard, while the small form factor fits standard PC slots without occupying much space. Drivers are included for straightforward installation.

Suitable for

• Adding external high-speed storage (external hard drives, SSDs)
• Connecting USB 3.0 peripherals (printers, scanners, webcams)
• Upgrading older PCs lacking USB 3.0 ports
• Desktop systems requiring additional internal USB ports

Key specifications

• Output interface: USB 3.2 Gen 1 (3.1 Gen 1 / USB 3.0)
• Maximum data transfer rate: 5 Gbit/s
• Host interface: PCIe (complies with PCI 2.0)
• Internal/External: Internal
• Dimensions (W × D × H): 61 × 65 × 20 mm
• Weight: 0.035 kg
• Product colour: Green
• Brand / MPN / EAN: CONCEPTRONIC / EMRICK06G / 4015867223697

How to use

Power down the desktop PC and open the case. Insert the PCIe card into an available PCI Express slot on the motherboard and secure it in place. Close the case and power on the PC. Install the included drivers following the provided instructions or download the latest drivers from the manufacturer if necessary. After driver installation, connect USB devices to the new SuperSpeed ports.

Recommendations

For optimal performance, connect USB 3.0 devices with compatible cables and use ports on the card rather than passing through hubs. Ensure the system BIOS and operating system are updated and install the latest Conceptronic drivers when available.
