CORAB USBC-38/300-H seinä-/parveke-kulmateline 38mm 300mm

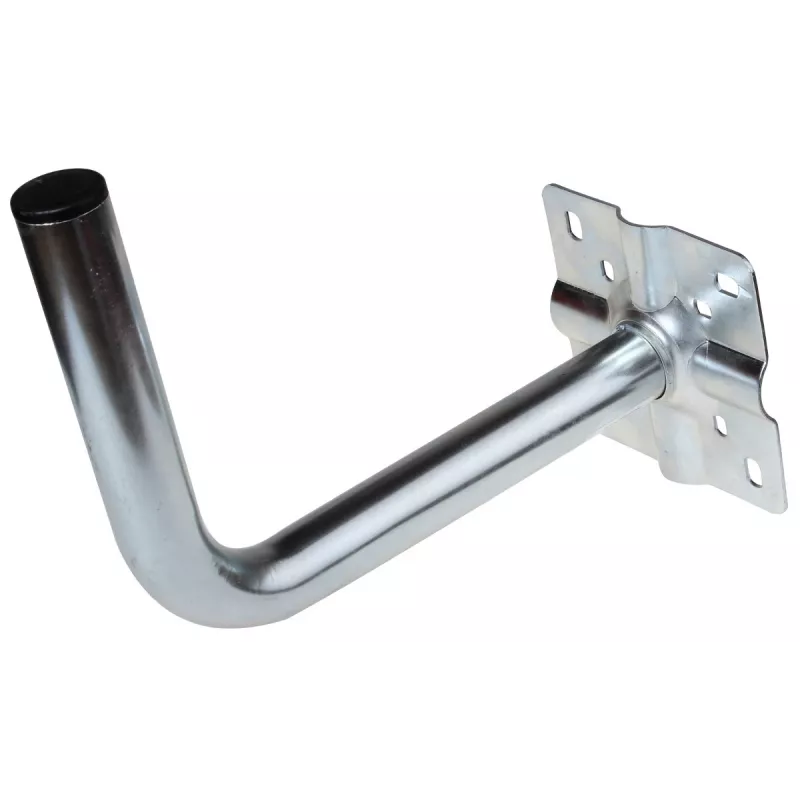

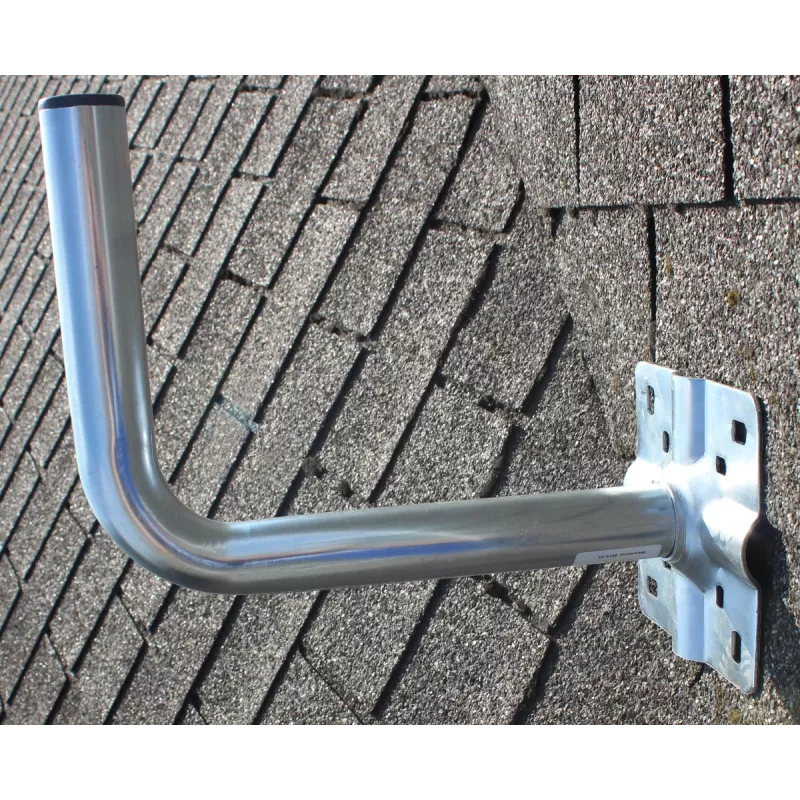

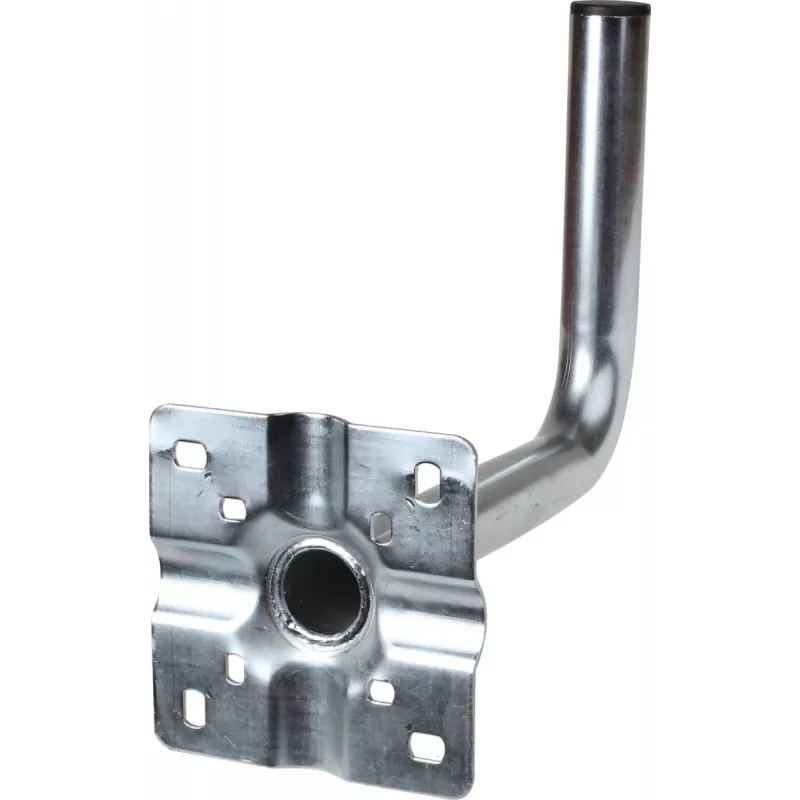

The CORAB USBC-38/300-H is a robust wall and balcony mounting bracket designed for secure installation of satellite dishes and terrestrial antennas. Its bent/curved design provides optimal positioning while maintaining a compact footprint. Hot-dip galvanized steel construction ensures exceptional corrosion resistance and long-term outdoor durability.

Advantages

High-strength steel with hot-dip galvanized finish offers superior weather resistance. The 300 mm offset from wall allows flexible placement, while the 38 mm mast diameter accommodates standard antennas. Easy to install with 4 mounting holes on a 100x100 mm plate.

Suitable for

• Satellite dishes up to 90 cm diameter
• Terrestrial antennas
• Wall or balcony mounting
• Outdoor installations

Key specifications

• Mounting Type: Wall / Balcony
• Bracket Design: Bent / Curved
• Material: Steel, Hot-dip Galvanized
• Mast/Pipe Diameter: 38 mm
• Offset from Wall: 300 mm
• Vertical Height: 250 mm
• Mounting Plate: 100 x 100 mm
• Mounting Holes: 4 x 10 mm
• Recommended Dish Size: Up to 90 cm
• Installation Location: Outdoor

Recommendations

Ensure the mounting surface is strong enough to support the antenna and bracket. Use appropriate fasteners for the wall material. For balcony installations, verify local regulations.
