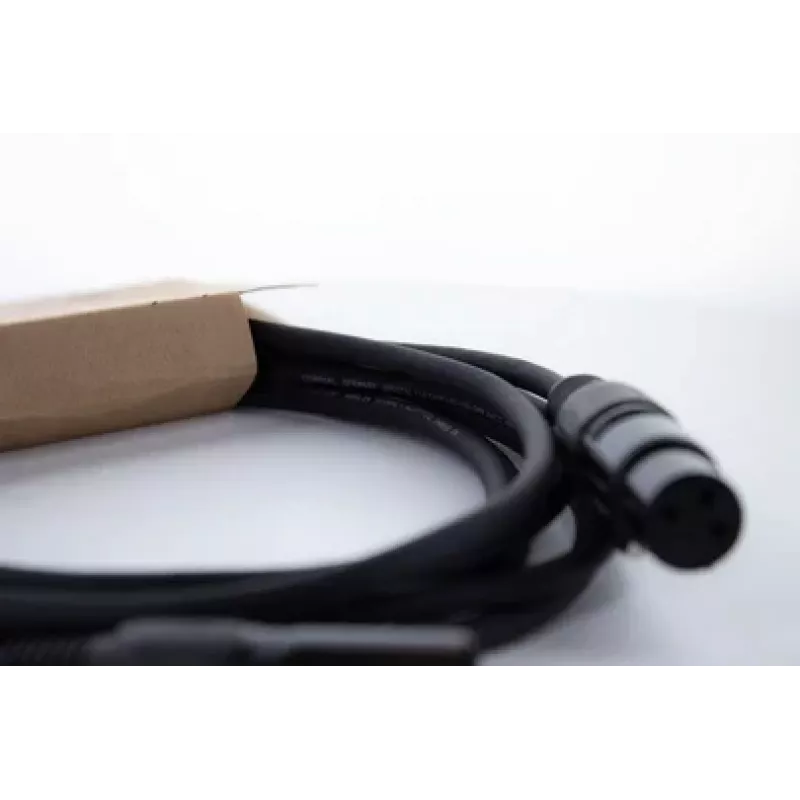

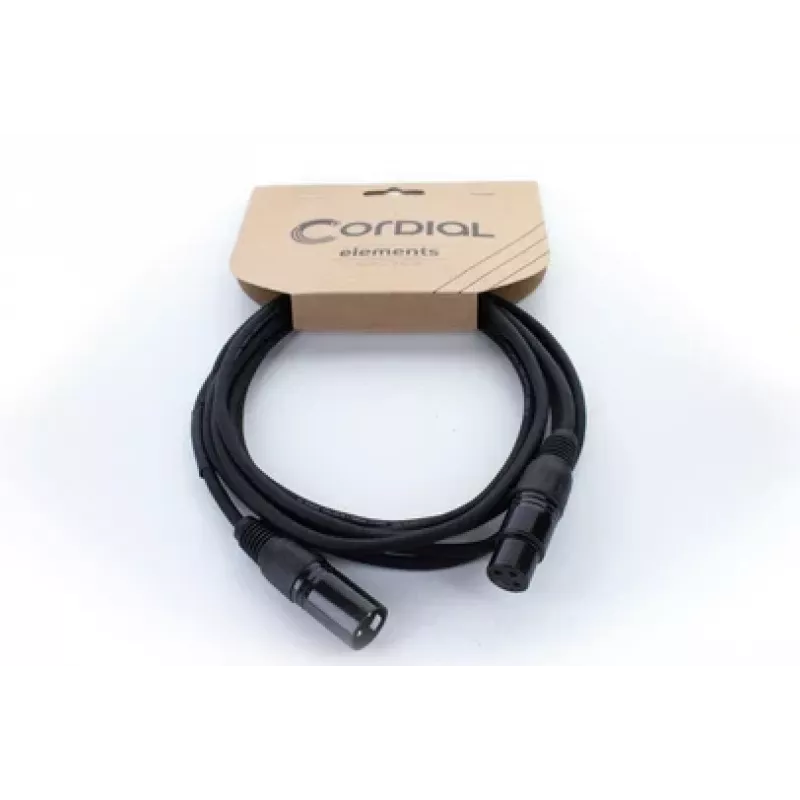

Cordial ED 5 FM XLR liitäntäkaapeli 5m musta 14902

Signal dropouts and interference are a constant risk in live audio and studio setups. The Cordial ED 5 FM XLR Connection Cable provides a stable, balanced link between microphones, line-level sources, and mixing consoles, ensuring clean signal transfer over a 5-meter run.

Who is it for

This cable is built for musicians, sound engineers, and AV technicians who need reliable XLR connectivity on stage, in the studio, or for fixed installations.

Main features

• 5-meter length for flexible routing between devices

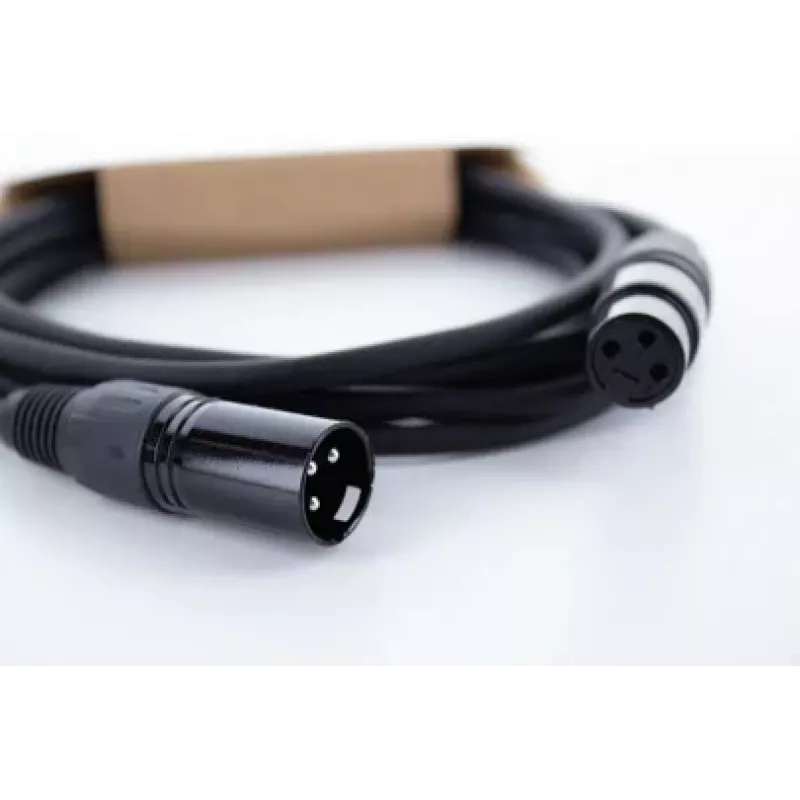

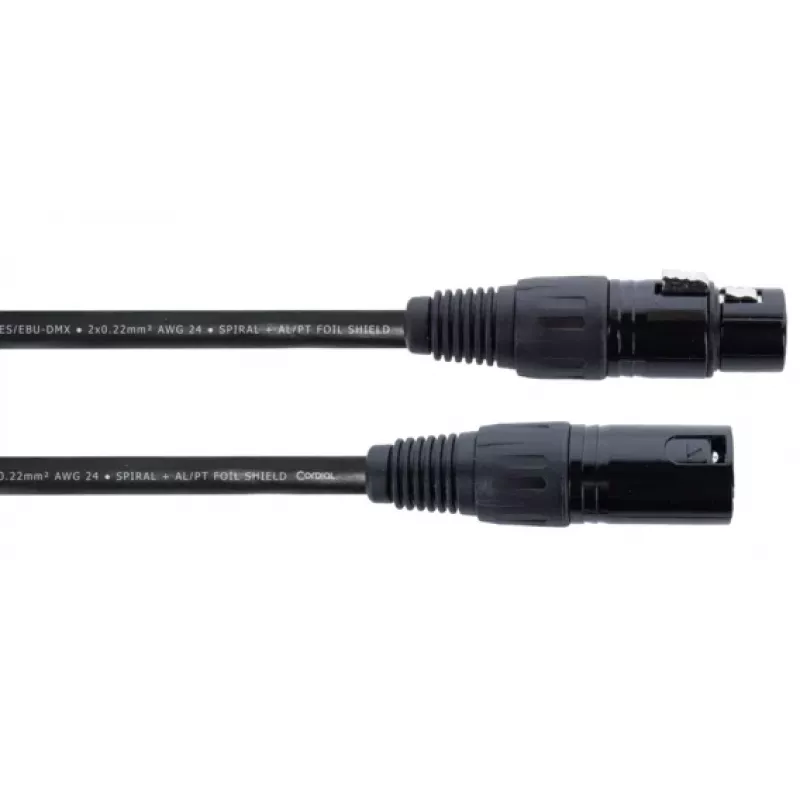

• 3-pin XLR female to 3-pin XLR male connectors
• Oxygen-free copper conductors (2 x 0.22 mm²) for low resistance
• Spiral copper shielding to reject electromagnetic interference
• Durable PVC jacket with 6.4 mm outer diameter
• REAN connectors by Neutrik for secure mating

Specifications

• Cable type: Microphone cable
• Connector 1: XLR female, 3-pin
• Connector 2: XLR male, 3-pin
• Cable length: 5 m
• Colour: Black
• Conductor cross-section: 2 x 0.22 mm² (AWG 24)
• Conductor material: Oxygen-free copper (OFC)
• Shielding: Spiral copper shield
• Jacket material: PVC
• Outer diameter: 6.4 mm
• Capacitance (cond./cond.): 60 pF/m
• Conductor resistance: 85 Ohm/km
• Intended use: Microphone, line-level, DMX
• Cable construction: Balanced
• Temperature range: -20°C to +70°C

Tips

For best results, coil the cable loosely after use to avoid kinks and extend its service life. The balanced design also makes it suitable for DMX lighting control when a 3-pin XLR connection is required.
