D-Sub HD 50-napainen uros metalli juotosversio 2 kpl DeLOCK 66705

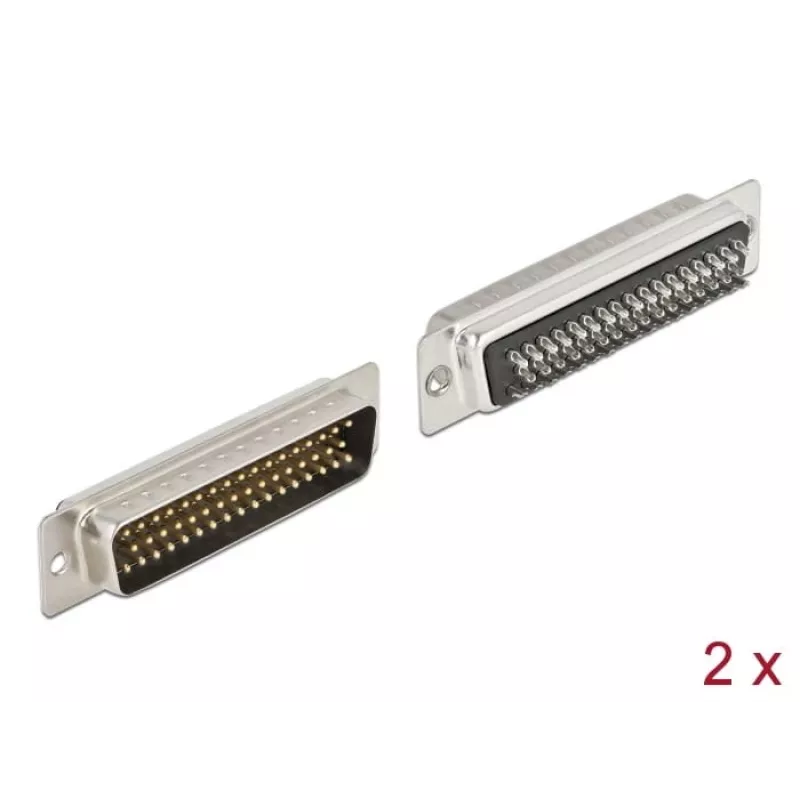

This DeLOCK D-Sub HD 50 pin male metal solder version is a compact high-density connector designed for solder assembly and cable assembly. The connector has 50 soldering pins and a durable metal housing with a silver finish, supplied as a pack of two. Its dimensions are 12.5 mm width, 67 mm depth and 11 mm height, making it suitable for a range of electronic connection tasks where a reliable D-Sub HD interface is required.

Advantages

The metal housing provides mechanical durability and a silver finish for corrosion resistance. Fifty soldering pins allow high-density signal connections in a small footprint. Supplied as two pieces per pack, the connectors support multiple assemblies or spare parts supply.

Suitable for

• Custom cable assembly for electronic equipment
• Repair or replacement of D-Sub HD interfaces
• Prototyping and small-series device connectors

Key specifications

• Connector type: D-Sub HD (High Density), male
• Contacts: 50 soldering pins
• Material/finish: metal housing, silver colour
• Pack contents: 2 pieces
• Dimensions: 12.5 mm (W) x 67 mm (D) x 11 mm (H)
• Brand: DELOCK, MPN: 66705, EAN: 4043619667055

How to use

Prepare the cable wires and PCB or mating connector points according to the pinout required. Place the connector for soldering, ensuring correct orientation, then solder each of the 50 pins with appropriate soldering tools and temperature settings for metal connectors. After soldering, inspect joints for secure connections and mount the connector into its housing or cable assembly as required.

Recommendations

Use appropriate ESD protection and soldering iron settings for small pins. Verify pinout and mechanical fit before final installation. Store unused connectors in a dry environment to prevent contamination or oxidation of contacts.
