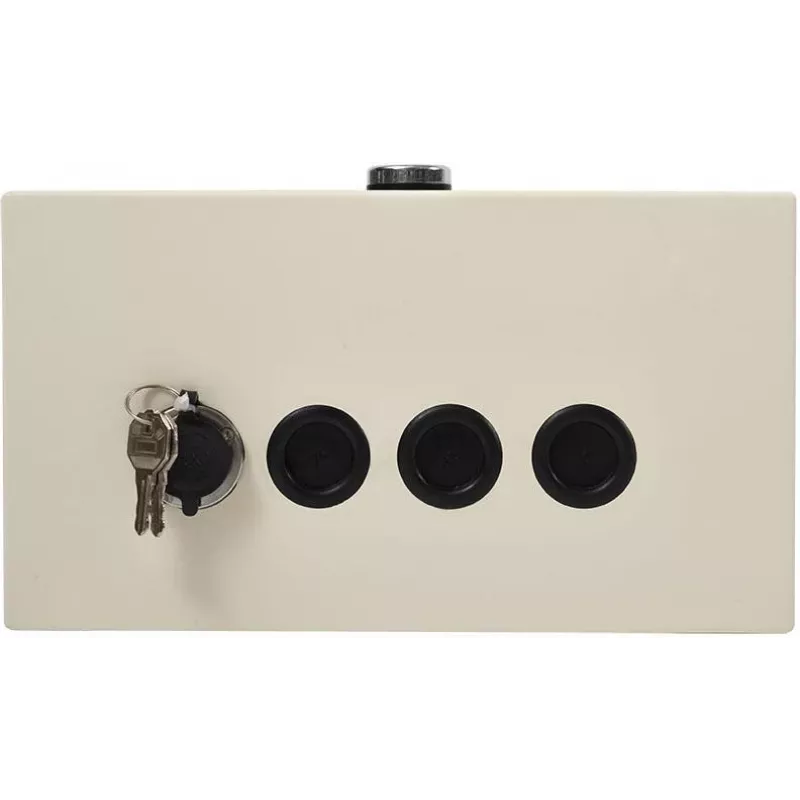

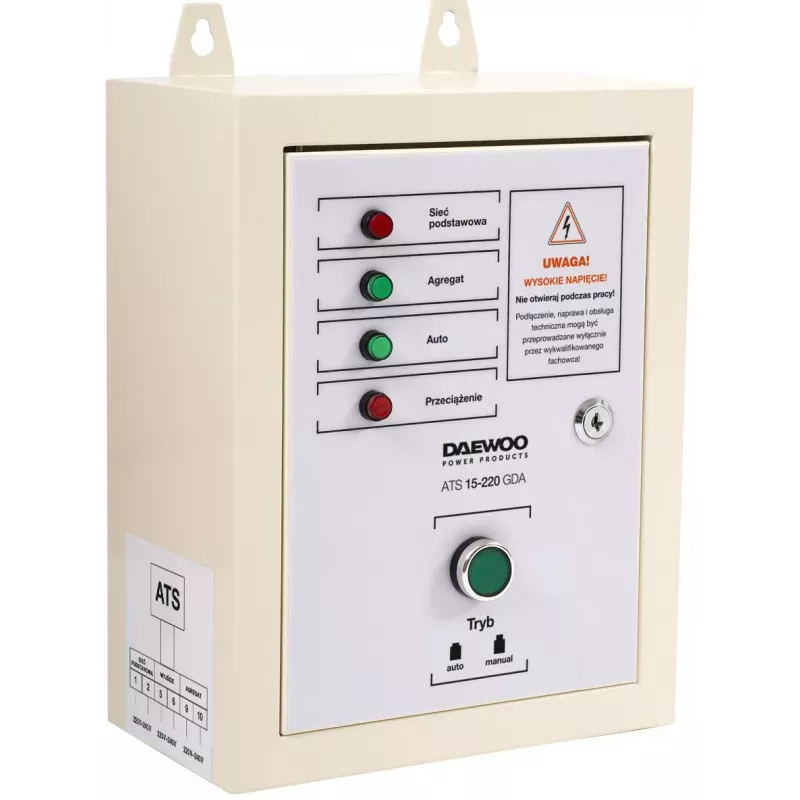

Daewoo ATS15-400GDA SZR-automaatiomoduuli

The Daewoo ATS15-400GDA is an SZR automation module designed for automatic transfer between mains and generator power. It operates with a rated mains voltage of 380 V and a maximum mains voltage of 400 V, supporting a maximum current of 25 A.

Key features

• Automatic transfer switch (SZR) module
• Rated mains voltage: 380 V
• Maximum mains voltage: 400 V
• Maximum current: 25 A
• Mains frequency: 50 Hz
• Generator output frequency: 50 Hz
• Generator voltage: 380 V
• Number of phases: 3
• Battery charging voltage: 12 V
• Control cable length: 2 m
• Rated power: 16.5 kW
• Weight: 5 kg

Specifications

• Brand: Daewoo
• MPN: ATS15-400GDA
• Rated mains voltage: 380 V
• Maximum mains voltage: 400 V
• Maximum current: 25 A
• Mains frequency: 50 Hz
• Generator output frequency: 50 Hz
• Generator voltage: 380 V
• Number of phases: 3
• Battery charging voltage: 12 V
• Control cable length: 2 m
• Rated power: 16.5 kW
• Weight: 5 kg
