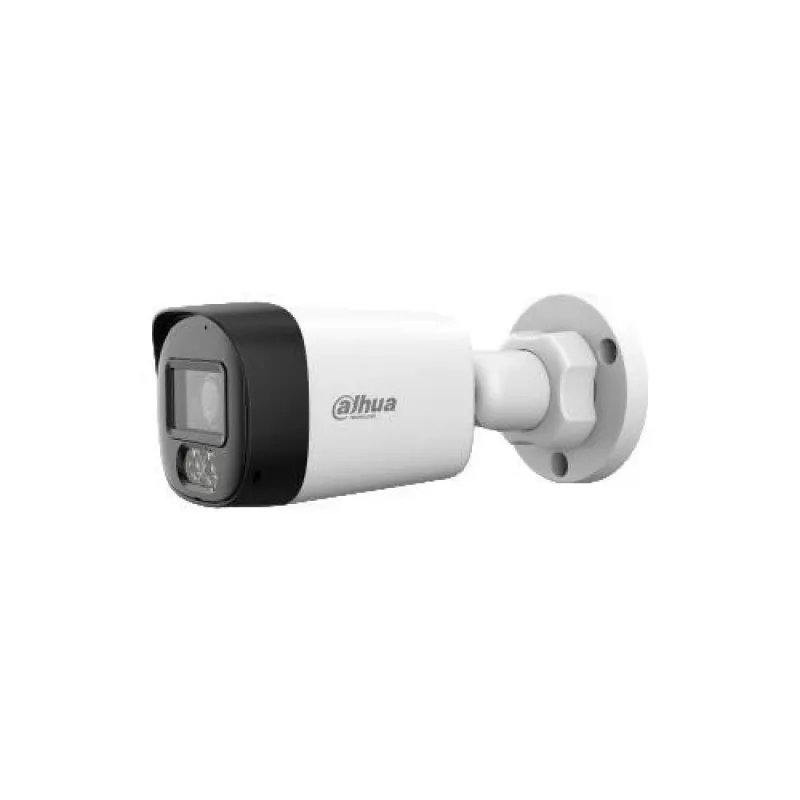

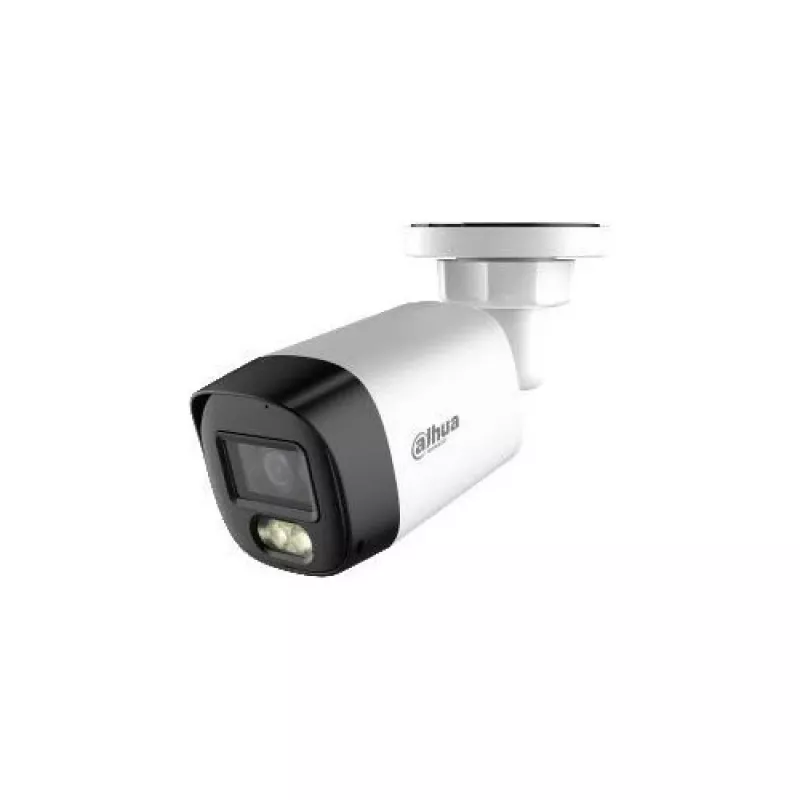

Dahua 5MP 4-in-1 IR luotikamera HAC-HFW1500RL-IL-A-0280B-S3-DIP

The Dahua HAC-HFW1500RL-IL-A-0280B-S3-DIP is a high-performance 5MP bullet camera designed for professional surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 5MP resolution at 20fps. With 4-in-1 video output (CVI/TVI/AHD/CVBS), it offers flexible integration with existing systems. The 2.8mm fixed lens provides a 111° horizontal field of view, ideal for wide-area monitoring. Equipped with Smart IR technology, it ensures clear night vision up to 30 meters. The IP67-rated metal and plastic housing withstands harsh outdoor conditions, operating from -40°C to +60°C. DWDR and 2D NR enhance image quality in challenging lighting. Power via 12V DC with low consumption of max 3.7W.

Advantages

This camera combines high-resolution 5MP imaging with versatile 4-in-1 output, making it compatible with most DVRs. The Smart IR adapts to scene brightness, preventing overexposure. Its robust IP67 design ensures reliable outdoor performance. Easy installation with fixed lens and simple power requirements.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Retail stores and warehouses
• Residential security

Key specifications

• Sensor: 1/2.7" CMOS, 5MP
• Lens: 2.8mm fixed, FOV 111°
• IR Distance: Up to 30m (Smart IR)
• Video Output: CVI/TVI/AHD/CVBS switchable
• Day/Night: Auto ICR, DWDR, 2D NR
• Power: 12V DC, max 3.7W
• Ingress Protection: IP67
• Operating Temperature: -40°C to +60°C
• Housing: Metal front cover, plastic body
• Certifications: CE, FCC, UL

Recommendations

For optimal performance, use with a compatible 12V DC power supply and a 4-in-1 DVR. Ensure proper mounting to achieve the desired field of view. Regular lens cleaning maintains image clarity.
