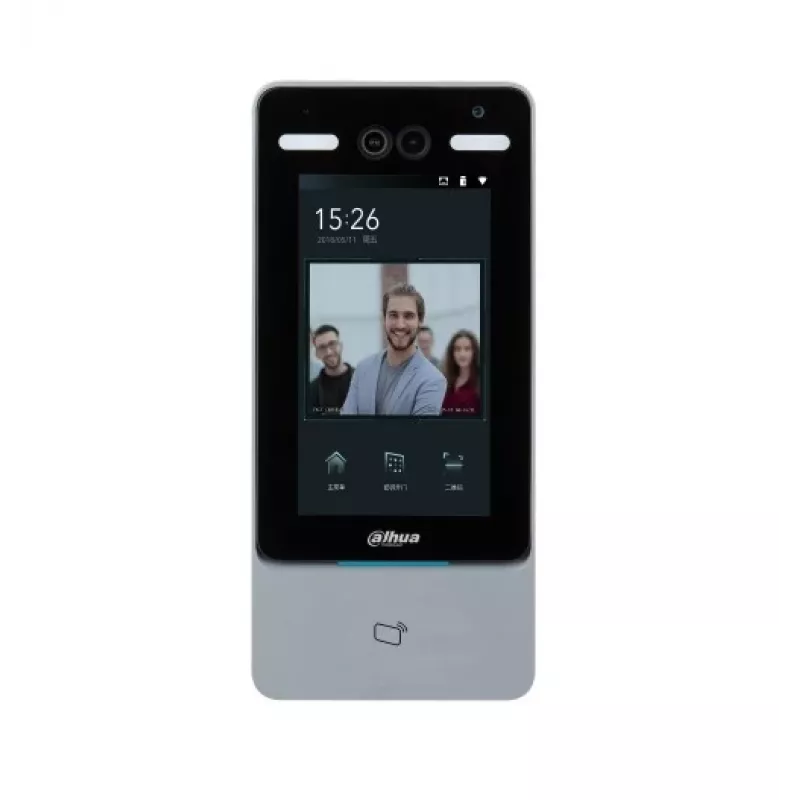

Kulunvalvonta- ja työajanseurantapääte DAHUA ASI7213Y — kasvojentunnistus

Features: • 7 inch LCD, touchscreen, resolution 1024 (H) × 600 (V). • Human face images, cards, and passowrds can be • Support unlock through face, card (ID/IC card), password, and their • With face detection box; the largest face among faces that appear at • Face recognition distance is 0.3 m–2 m, human • Face verification accuracy>99%; face comparison speed ?0.5s per • Profile faces can be recognized; face recognition angle can be • Supports 30, 000 users, 30, 000 cards, 30, 000 passwords, and 50 • Support liveness detection. • Supports duress alarm, tamper alarm, intrusion alarm, door contact • Has six user levels: general users, patrol users, blacklist users, VIP • Attendance records can be uploaded to the management platform. Technical Specifications: System Parameter • 7 inch touchscreen • Communication Method TCP/IP, Wi-Fi • Liquid Crystal Display 7 inch, 350 cd/m² • Screen Resolution 1024 (H) × 600 (V) • Lens 2 MP double lens • WDR Support • Light Compensation Adjustable white light Port • RS-485 Port 1 • Alarm Input 2 • Alarm Output 2 • Lock Control 1 set • Door Contact 1 set • Exit Button 1 • Tamper Switch 1 set • Network Interface 1 • USB Port 1 • Wiegand Protocol 26, 34, 66 Alarm Parameter • Tamper Alarm Support • Duress Alarm Support • Door Sensor Timeout Alarm Support • Illegal intrusion Support • Illegal Card Exceeding Time Alarm Support • User Parameter Support • Duress Card (user) Support • Patrol Card (user) Support • VIP Card (user) Support • Guest Card (user) Support • Card for the Disabled (user) Support • Black and White List Setting Support Unlock Mode • Face recognition, password, card and their combinations Card Reader Type • Model ASI7213Y: IC card • Card Reading Distance 1 cm–5 cm (0.03 ft–0.16 ft) • Human Height 1.1 m–2.4 m (3.61 ft–7.87 ft) • Face Recognition Configuration Support • Face Recognition Distance 0.3 m–2 m (0.98 ft–6.56 ft) • Face Recognition Accuracy Rate >99% • Face Recognition Speed ?0.5s/face • Face Image Quantity 10000 • Duress Card Support • Duress Password Support • Advertisement Display • Advertisements can be displayed • Network Update Online update • OSDP Protocol Support • Period List 128 • Holiday Period 128 • External Card Reader 1 set Wiegand and 1 set RS-485 • Real-Time Monitor Support • Remote Verification Support • Multiple Verification Support • Anti-Passback Support • First Card Unlock Support • Alarm Linkage Support • System Parameter Configuration Support • Rated Power 12V DC • Rated Current 2A Installation method • Hang-mounted • Dimensions 283 mm × 130 mm × 35 mm (11.14 × 5.12” × 1.38) • Working Temperature –10°C to + 55°C (+14°F to +131°F) • Working Humidity 5% RH–95% RH • Atmospheric Pressure 86 kPa–106 kPa • Power Consumption 15 W • Total Weight 1.5 kg (3.31 lb) • Environmental Requirement Indoor

How to use

Install the terminal at the required entry point and connect it to the local network according to site infrastructure. Configure system settings through the on-device interface or the supported management software, including user enrollment, access levels and attendance parameters. Enroll users by capturing facial data; the terminal will store templates and use them for subsequent authentication. During operation, users present their face to the sensor for rapid verification and the device records attendance and access events automatically.

Recommendations

Position the terminal at a height and angle that ensures frontal face capture and maintain consistent ambient lighting to improve recognition accuracy. Keep the device firmware and management software updated, and regularly back up attendance and access logs to the central server. For environments with PPE or face coverings, enroll users with representative samples to reduce recognition errors and combine with alternative authentication methods where necessary.
