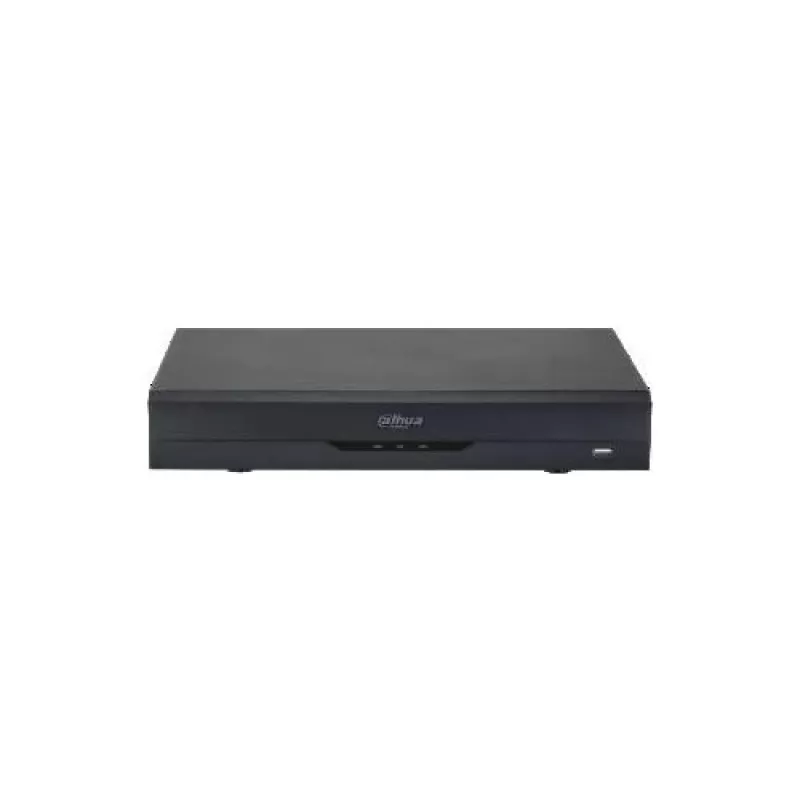

Dahua XVR5108HE-I3/T 8-kanavainen Penta-brid 5-in-1 DVR-tallennin tekoälyllä

The Dahua XVR5108HE-I3/T is a high-performance 8-channel penta-brid digital video recorder that supports HDCVI, AHD, TVI, CVBS, and IP cameras. With advanced AI features including perimeter protection, SMD Plus, and face recognition, this DVR delivers intelligent security for small to medium-sized installations. It offers flexible recording resolutions up to 5M-N and supports H.265+ compression for efficient storage.

Advantages

Penta-brid technology ensures compatibility with multiple camera types, making it ideal for system upgrades. AI-powered analytics reduce false alarms and enhance security monitoring. The unit supports up to 10TB of storage via a single SATA port and provides simultaneous HDMI and VGA output for local monitoring.

Suitable for

• Small to medium businesses requiring intelligent surveillance
• Retail stores, offices, and warehouses
• Residential properties with multiple camera zones
• System integrators upgrading from analog to hybrid systems

Key specifications

• 8 BNC channels (HDCVI/AHD/TVI/CVBS) + 8 IP channels (up to 16 total)
• Max IP camera resolution: 6MP per channel
• AI features: Perimeter Protection (2 Ch), SMD Plus (8 Ch), Face Recognition (2 Ch)
• Video compression: AI Coding, H.265+, H.265, H.264+, H.264
• Recording resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
• Audio: 1 RCA input, 1 RCA output, two-way talk support
• Storage: 1 SATA port, up to 10TB
• Network: 1 RJ-45 10/100 Mbps Ethernet port
• USB: 1x USB 2.0, 1x USB 3.0
• Power: DC12V/2A, consumption <7W (without HDD)
• Operating system: Embedded Linux
• Mobile app: DMSS

Recommendations

For optimal performance, pair with Dahua HDCVI or IP cameras that support AI features. Use a high-quality hard drive up to 10TB for extended recording. Ensure stable 12V DC power supply.
