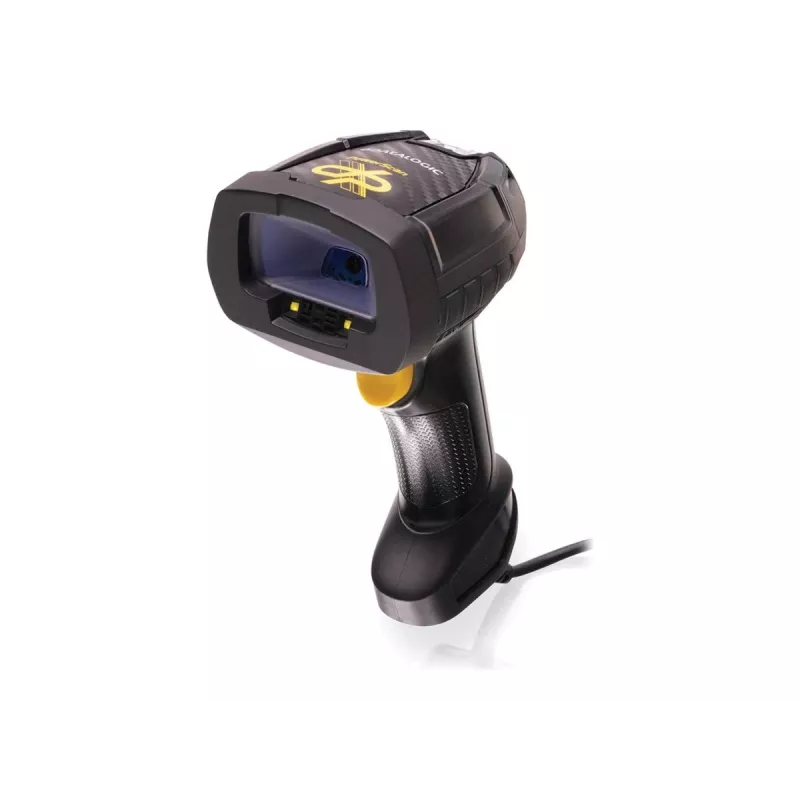

Datalogic PowerScan PD9630-DPX Direct Part Marking USB-sarja skannerilla ja kaapelilla - viivakoodiskanneri

For demanding traceability tasks where standard imagers fail, the PowerScan PD9630-DPX reads direct part marks on metal, plastic, and other reflective surfaces. This USB kit pairs the rugged industrial scanner with a cable, delivering reliable decoding of dot peen, laser etch, and inkjet codes in production, warehouse, and field service environments.

Highlights

• Direct Part Marking (DPM) imager decodes low-contrast and damaged 1D/2D codes
• Wired USB connectivity with HID Keyboard and USB COM modes
• IP65 sealed housing withstands dust, moisture, and 2.5 m drops onto concrete
• Datalogic 'Green Spot' and 4-dot aimer for fast, accurate targeting
• Kit includes PowerScan PD9630-DPX scanner and USB cable

In daily use

The PD9630-DPX excels in automotive, electronics, and metalworking applications. Its white and red LED illumination adapts to different marking types, while the high-resolution 1280 x 800 sensor captures even the most challenging codes. The rugged design ensures continuous operation from -20°C to 50°C, making it suitable for harsh industrial floors.

Full specifications

• Scanner type: Industrial handheld DPM imager
• Connectivity: Wired USB (HID Keyboard, USB COM)
• Decoding capability: 1D, 2D, Postal, Stacked, Direct Part Marking
• Sensor resolution: 1280 x 800 pixels
• Illumination: White LED (standard), Red LED (DPM)
• Aiming system: 4-dot aimer with center cross
• Field of view: 48° H x 30° V
• Drop specification: 2.5 m (8.2 ft) onto concrete
• IP rating: IP65
• Operating temperature: -20 to 50 °C (-4 to 122 °F)
• ESD protection: 16 kV
• Colour: Yellow/Black
• Kit contents: Scanner, USB cable

Final note

Backed by Datalogic's industrial heritage, the PD9630-DPX delivers the durability and decoding power needed for direct part marking applications where accuracy is non-negotiable.
