Datalogic Touchreader TD1100 Touch 90 Lite käsikäyttöinen viivakoodilukija (musta, USB)

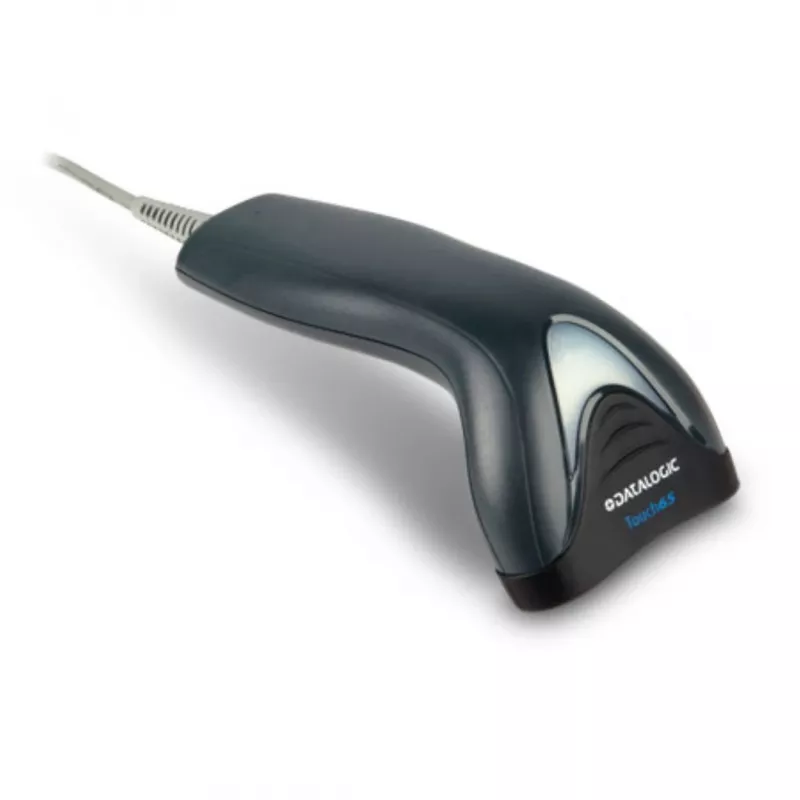

The Datalogic Touchreader TD1100 Touch 90 Lite (model TD1120-BK-90K1) is a reliable and compact handheld barcode scanner designed for efficient 1D barcode scanning in retail, logistics, and light industrial environments. With its linear imager technology and USB connectivity, it offers fast and accurate decoding of common barcodes such as EAN/UPC, Code 39, and Code 128. The scanner features a 90 mm scan window, red LED light source, and a durable design with 1.5 m drop resistance and IP30 rating.

Advantages

This scanner provides a cost-effective solution for businesses needing quick and reliable barcode scanning. Its compact form factor and 2.0 m cable offer flexibility, while the good read LED and beeper provide clear feedback. The device is easy to set up with USB keyboard wedge interface, making it compatible with most POS systems.

Suitable for

• Retail checkout counters
• Warehouse inventory management
• Light industrial applications
• Point-of-sale systems

Key specifications

• Scan Technology: Linear Imager
• Decoding Capability: 1D barcodes (EAN/UPC, Code 39, Code 128, GS1 DataBar)
• Interface: USB (Keyboard Wedge)
• Light Source: Red LED (640 nm)
• Minimum Resolution: 0.102 mm (4 mil)
• Depth of Field: 0 to 15 cm (0 to 6 in) for 13 mil EAN/UPC
• Drop Resistance: 1.5 m (5 ft) to concrete
• IP Rating: IP30
• Operating Temperature: 0 to 50 °C (32 to 122 °F)
• Storage Temperature: -20 to 70 °C (-4 to 158 °F)
• Humidity: 5 - 95% (non-condensing)
• Input Voltage: 5 VDC
• Current Consumption: 100 mA
• Cable Length: 2.0 m (6.5 ft)
• Color: Black
• Form Factor: Handheld
• Indicators: Beeper, Good Read LED
• Scan Window Width: 90 mm

Recommendations

For optimal performance, use this scanner with compatible USB ports and ensure proper cable management. Ideal for environments requiring reliable 1D scanning without the need for 2D or wireless capabilities.
