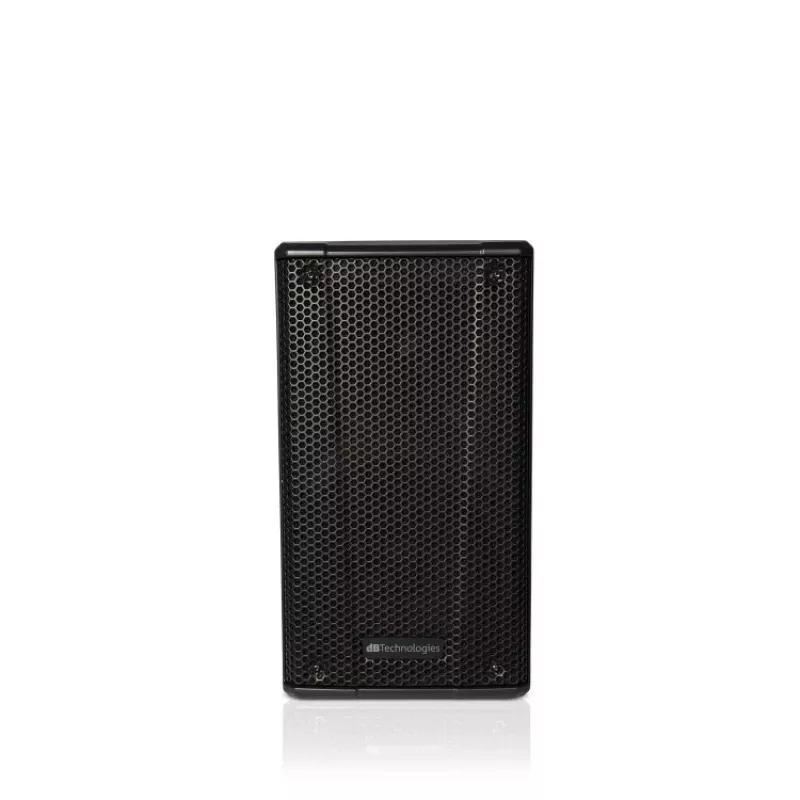

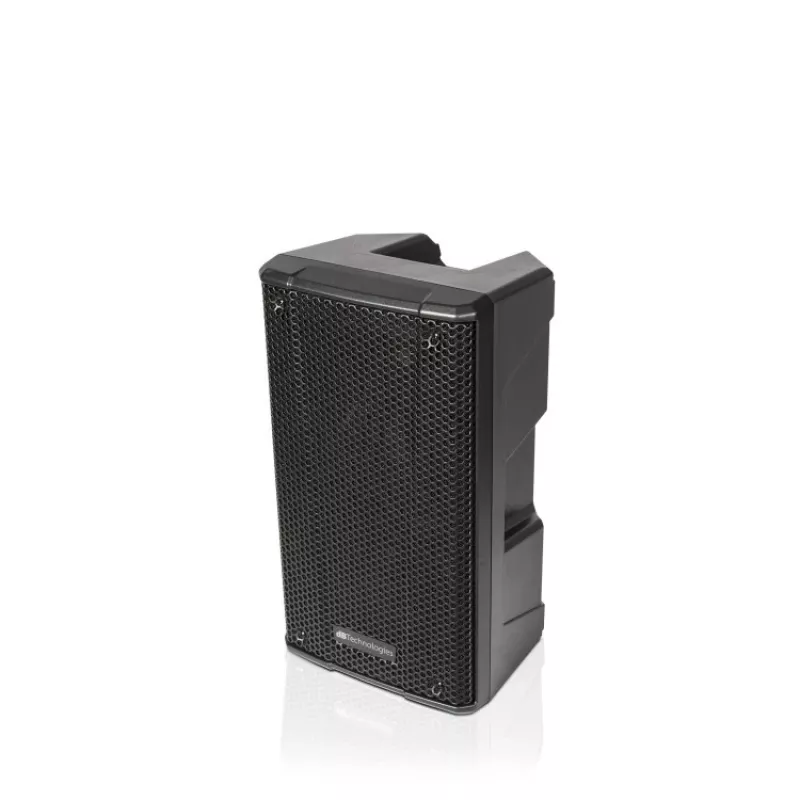

dB Technologies B-HYPE8 2-tie aktiivikaiutin 8 tuumaa

The dB Technologies B-HYPE8 is a compact 2-way active loudspeaker designed for portable PA and fixed installation applications. Featuring an 8" woofer and 1" compression driver, it delivers clear, powerful sound with a maximum SPL of 120 dB. The built-in Class D (LF) + Class AB (HF) amplifier provides 260 W peak power, while the 28/56 Bit DSP offers two presets (Flat/Boost) for easy tuning. The asymmetrical 90° x 40° horn ensures even coverage, and the rugged polypropylene cabinet with full metal grille guarantees durability. Ideal for live sound, presentations, and background music.

Advantages

Compact and lightweight design with high output; versatile DSP presets for quick setup; reliable protection circuitry (overheat, peak, RMS, thermal); dual-angle pole mount for flexible positioning.

Suitable for

• Portable PA systems for small to medium venues
• Live music performances and DJ sets
• Corporate events and conferences
• Fixed installations in bars, clubs, and houses of worship

Key specifications

• Speaker Type: 2-Way Active Loudspeaker
• Frequency Response (-10dB): 62 - 20,000 Hz
• Max SPL: 120 dB
• LF Driver: 8 inch (1.5 inch Voice Coil)
• HF Driver: 1 inch Compression Driver (1.4 inch Voice Coil)
• Amplifier: Class D (LF) + Class AB (HF)
• Peak Power: 260 W
• RMS Power: 130 W
• Dispersion: 90° x 40° (Asymmetrical Horn)
• Crossover Frequency: 2100 Hz
• Input Connectors: 1x Combo (XLR/TRS), 1x RCA Stereo
• Output Connectors: 1x XLR Male (Link Out)
• DSP: 28/56 Bit with 2 Presets (Flat/Boost)
• Housing Material: Polypropylene
• Grille: Full Metal Grille
• Pole Mount: 36mm Dual Angle (0°/7.5°)
• Rigging Points: 3x M8
• Protection: Overheat, Peak, RMS, Thermal

Recommendations

For optimal performance, pair with a subwoofer like the dB Technologies B-HYPE SUB and use the DSP presets to match the acoustic environment. Always ensure proper ventilation and avoid overdriving the amplifier.
