DEHN 314300 ristiliitin St/tZn pyöreälle johtimelle 8-10 mm

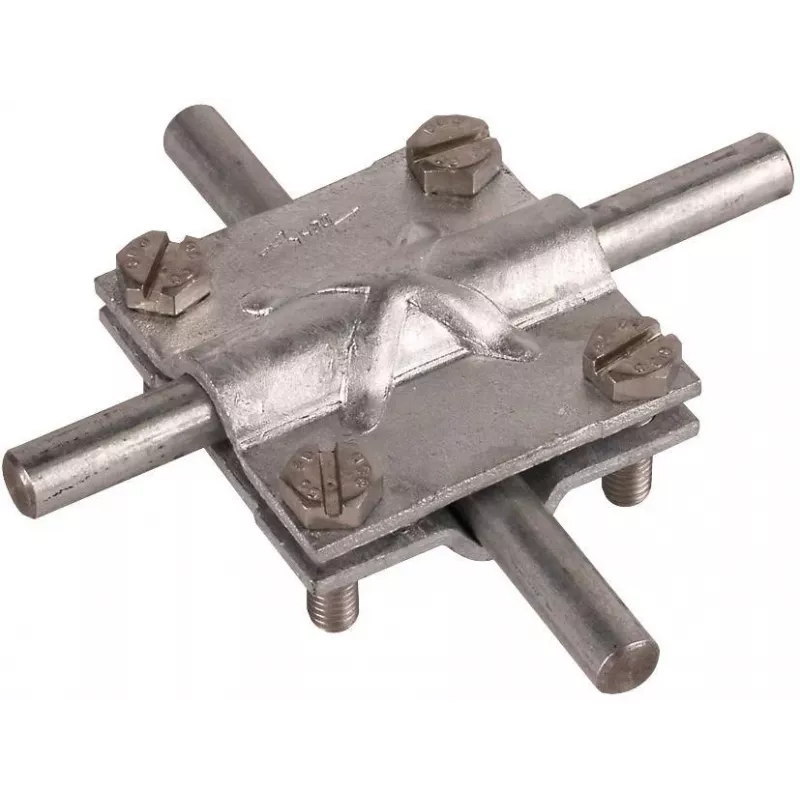

The DEHN 314300 cross connector is engineered for reliable cross connections of round conductors in lightning protection and earthing systems. Its hot-dip galvanized steel construction ensures high corrosion resistance, making it suitable for both indoor and outdoor use. The connector accommodates two round conductors with diameters from 8 to 10 mm, secured by clamping screws for a durable, low-resistance bond.

Highlights

• Hot-dip galvanized steel (St/tZn) for excellent corrosion resistance
• Accepts round conductors 8–10 mm in diameter
• Cross connection for two conductors
• Screw clamping for secure, maintenance-free connection
• Complies with EN 62561-1 for lightning protection components

In daily use

This cross connector is ideal for creating equipotential bonding or cross connections in lightning protection systems. Its robust design withstands mechanical stress and harsh environmental conditions, ensuring long-term performance. The metallic grey finish blends with standard galvanized installations.

Full specifications

• Product Type: Cross Connector
• Material: Steel, hot-dip galvanized (St/tZn)
• Conductor Type: Round wire/rod
• Conductor Diameter (min): 8 mm
• Conductor Diameter (max): 10 mm
• Number of Conductors: 2
• Connection Type: Cross connection
• Application: Lightning protection, Earthing, Equipotential bonding
• Standard Compliance: EN 62561-1
• Corrosion Resistance: High
• Mounting Method: Screw connection
• Usage Environment: Outdoor, Indoor
• Resistance to Mechanical Stress: High
• Resistance to Environmental Influences: High
• Color: Metallic Grey
• Conductor Fastening: Clamping screws

Final note

A reliable cross connector for professional lightning protection installations, combining durability with ease of use.
