DEHN 478129 NIRO V4A M10 yleiskiinnike pyöreille 8-10 mm ja litteille 30 mm johtimille

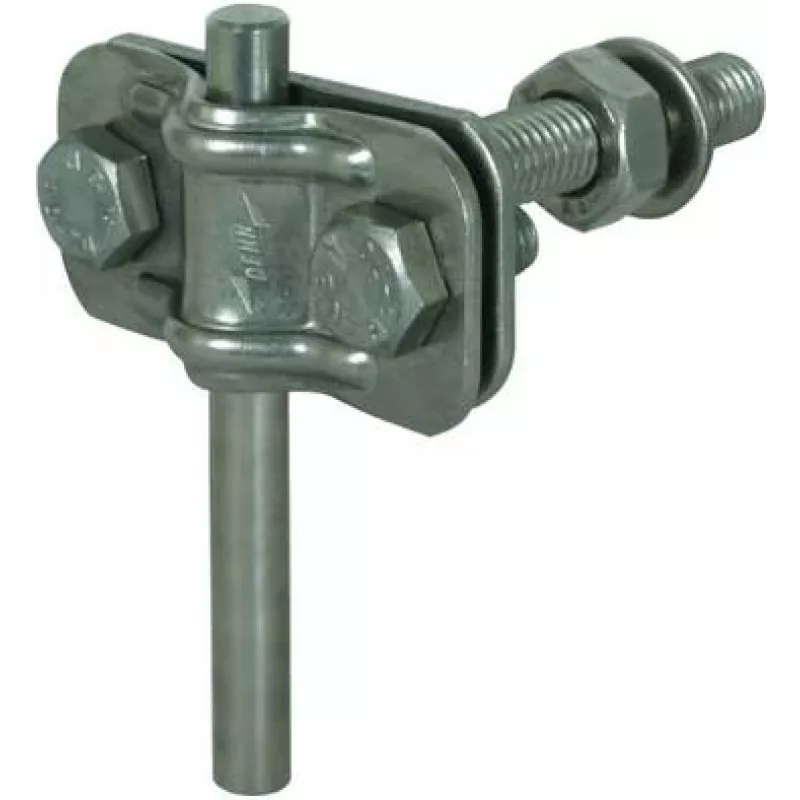

In lightning protection and earthing systems, connecting round and flat conductors securely in harsh environments is a challenge. The DEHN 478129 NIRO V4A M10 universal connection clamp solves this by providing a corrosion-resistant, high-strength connection for round conductors 8-10 mm diameter and flat conductors up to 30 mm width. Made from stainless steel V4A (AISI 316L), it withstands aggressive conditions including saltwater exposure, ensuring long-term reliability.

Who is it for

This clamp is intended for electricians, lightning protection installers, and maintenance professionals who need robust conductor connections in outdoor, industrial, or coastal environments. It suits applications in lightning protection, earthing, and equipotential bonding where corrosion resistance is critical.

Main features

• Stainless steel V4A (1.4404 / AISI 316L) for excellent corrosion resistance
• Accommodates round conductors 8-10 mm and flat conductors 30 mm wide
• M10 thread for secure screw connection
• Supports cross, parallel, and T-connections
• Complies with EN 62561-1

Specifications

• Material: Stainless Steel V4A (1.4404 / AISI 316L)
• Round conductor diameter: 8 - 10 mm
• Flat conductor width: 30 mm
• Connection thread: M10
• Application: Lightning protection, earthing, equipotential bonding
• Corrosion resistance: Very high (suitable for aggressive environments, saltwater)
• Standard compliance: EN 62561-1
• Clamp type: Universal connection clamp
• Mounting type: Conductor-to-conductor, conductor-to-structure
• Suitable for: Outdoor and indoor use, harsh environments
• Installation method: Screw connection
• Product series: DEHN 478
• Steel grade equivalent: AISI 316L
• Resistance to chemicals: Yes
• Connection capability: Cross, parallel, T-connection

Tips

For optimal performance, ensure the conductor surfaces are clean and free of oxidation before tightening the M10 screw to the recommended torque. Use in conjunction with other V4A components for a fully corrosion-resistant system.
