DEHN AK 7.10 FRM10X45 KBF0.4 12 TGTZN 1,2 cm liitäntäpidike (371009)

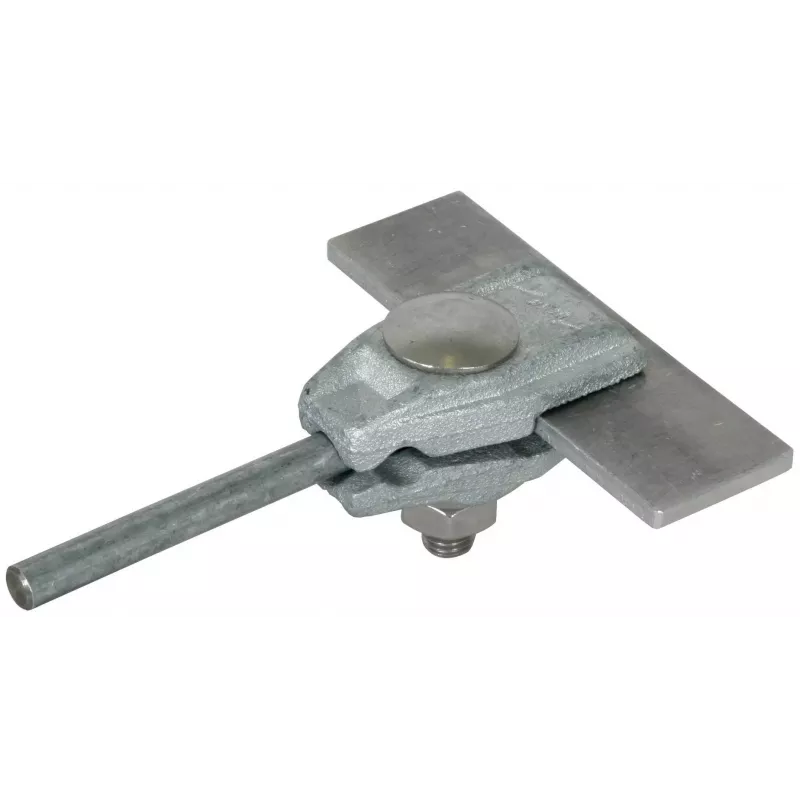

For lightning protection installers and electrical contractors working on building exteriors, the DEHN AK 7.10 connection clamp provides a reliable cross connection between round conductors and flat conductors. This clamp is hot-dip galvanized for high corrosion resistance, making it suitable for outdoor use in lightning protection systems.

Key specifications

• Product type: Connection clamp
• Material: Steel, hot-dip galvanized (St/tZn)
• Round conductor diameter range: 8 - 10 mm
• Max. round conductor diameter: 12 mm
• Flat conductor width range: 30 - 40 mm
• Flat conductor thickness: 0.4 mm
• Connection screw: M10 x 45 mm
• Clamping principle: Screw clamp
• Number of connections: 1x round to 1x flat
• Colour: Metallic grey (galvanized)

Why choose it

This clamp is designed for secure and durable connections in lightning protection systems. Its hot-dip galvanized steel construction ensures long-term performance in outdoor environments, while the screw clamp mechanism provides a firm grip on conductors.

Ideal use cases

• Cross connection of round conductors to flat conductors in lightning protection systems
• Outdoor installations where corrosion resistance is required

Good to know

The clamp is compliant with EN 62561-1 for lightning protection components, ensuring it meets industry standards for safety and reliability.
