DEHN alumiininen liitosholkki 8 mm pyöreälle langalle 385213

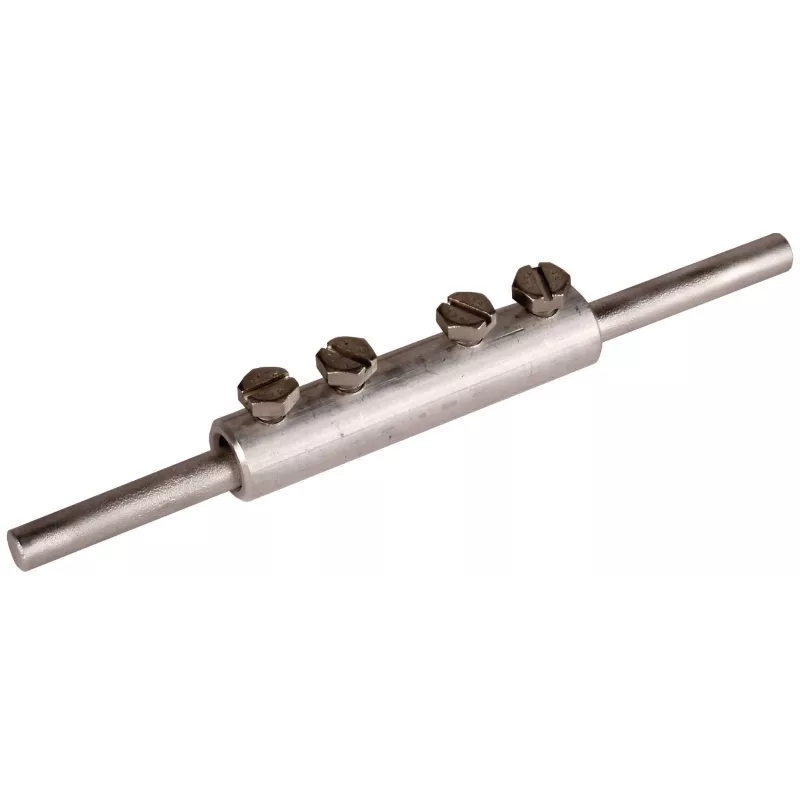

Connecting round conductors in lightning protection and earthing systems often requires a reliable, corrosion-resistant joint that maintains electrical continuity. The DEHN 385213 aluminium connection sleeve solves this by providing a secure mechanical and electrical connection for 8 mm round conductors.

Who is it for

This sleeve is intended for electricians, lightning protection installers, and maintenance personnel who need to join aluminium round conductors in outdoor or indoor environments. It suits applications in lightning protection, earthing, and potential equalization systems.

Main features

• Material: Aluminium, matching aluminium conductors to avoid galvanic corrosion.
• For 8 mm diameter round conductors.
• Straight connector type for end-to-end joining.
• Secure screw connection using galvanized steel screws.
• Suitable for indoor and outdoor use.

Specifications

• Product type: Straight connector
• Conductor diameter: 8 mm
• Conductor type: Round conductor
• Material: Aluminium
• Connection type: Sleeve / Coupling
• Mounting type: Screw connection
• Number of conductors: 2
• Screw material: Steel, galvanized
• Corrosion resistance: Yes
• Length: 30 mm
• Outer diameter: 12 mm
• Inner diameter: 8 mm

Tips

Ensure conductor ends are clean and fully inserted before tightening the screws. Use a torque screwdriver if specified by the manufacturer to avoid damaging the sleeve or conductor.
