DEHN BRS 10.27 AQ2.5 10 V2A putkiside, ruostumaton teräs 540920

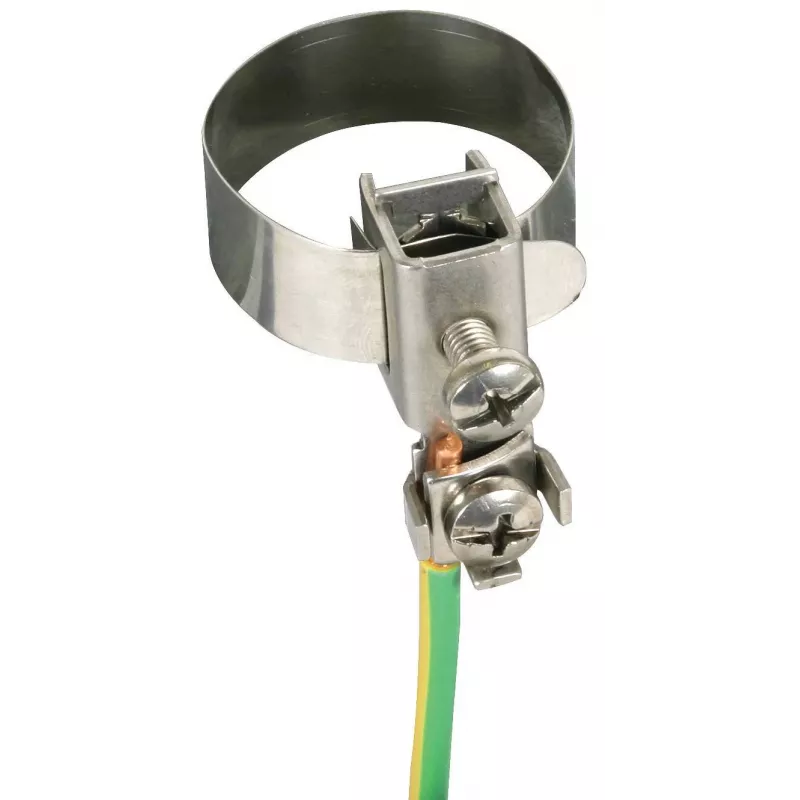

In lightning protection and earthing systems, connecting round conductors to pipes requires a clamp that can withstand harsh environments and maintain a secure electrical bond. The DEHN BRS 10.27 AQ2.5 10 V2A pipe clamp solves this by providing a corrosion-resistant stainless steel connection for pipe diameters from 10 to 27 mm and conductor diameters from 2.5 to 10 mm.

Who is it for

This clamp is intended for electricians and installers working on lightning protection and earthing systems, where reliable and durable connections to pipes are essential.

Main features

• Material: Stainless steel V2A (AISI 304) for high corrosion resistance
• Pipe diameter range: 10 - 27 mm
• Conductor diameter range: 2.5 - 10 mm
• For round conductors
• Single conductor clamp
• Screw type: M6 x 16 mm
• UV resistant
• Compliant with DIN EN 62561-1

Tips

Ensure the pipe surface is clean before installation to achieve optimal contact. Use a torque wrench to tighten the screw to the manufacturer's recommended torque for a secure connection.
