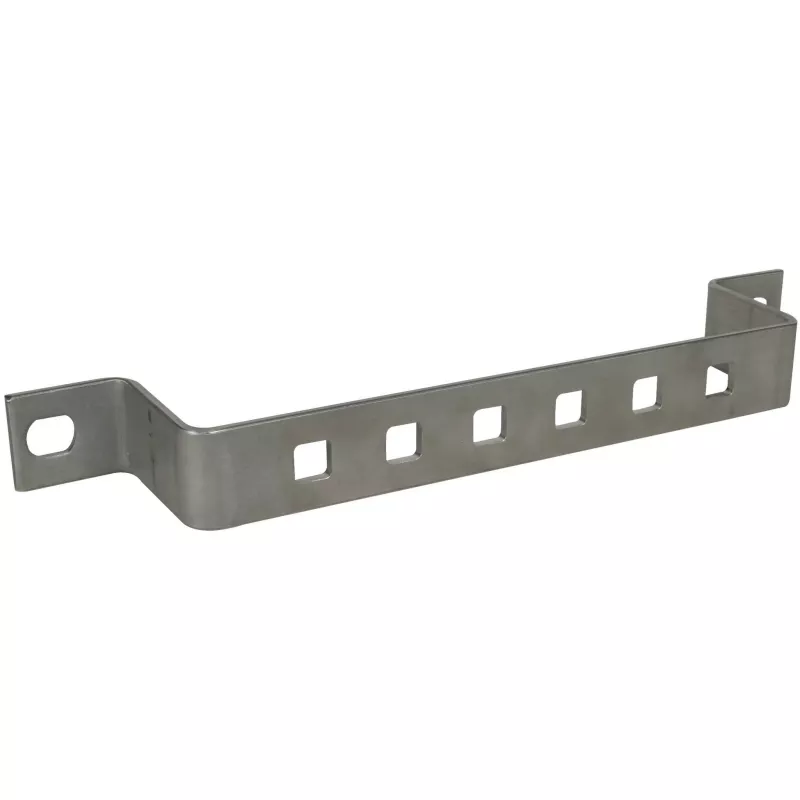

DEHN maadoituskisko NIRO 1x6 liitäntä ES 6AP 11X11 V2A (472319)

In electrical installations, reliable potential equalization is critical for safety and equipment protection. The DEHN earthing busbar provides a robust and corrosion-resistant solution for creating a central grounding point, ensuring low-impedance connections for conductors up to 25 mm².

Who is it for

This busbar is intended for electricians, panel builders, and maintenance technicians who need a durable, high-quality earthing component for indoor or outdoor applications, including industrial, commercial, and residential installations.

Main features

• Stainless steel V2A (AISI 304) construction for excellent corrosion resistance.
• Six screw terminals (M6) for secure connection of solid or flexible conductors.
• Compact 11 x 11 mm cross-section bar with surface mounting.
• High short-circuit withstand: 20 kA (1 s) and 100 kA (10/350 µs).
• Compliant with DIN EN 62561-1 for lightning protection components.

Specifications

• Material: Stainless Steel V2A (AISI 304)
• Number of connection points: 6
• Bar cross-section: 11 x 11 mm
• Conductor cross-section (solid): 2.5 - 25 mm²
• Conductor cross-section (flexible): 2.5 - 16 mm²
• Screw terminal size: M6
• Mounting type: Surface mount
• Operating temperature range: -40°C to +80°C
• Short-circuit current (1s): 20 kA
• Short-circuit current (10/350 µs): 100 kA
• Standard compliance: DIN EN 62561-1

Tips

Use appropriate torque when tightening terminals to ensure reliable contact without damaging the conductor. For outdoor installations, consider additional protection against direct weathering to extend service life.
