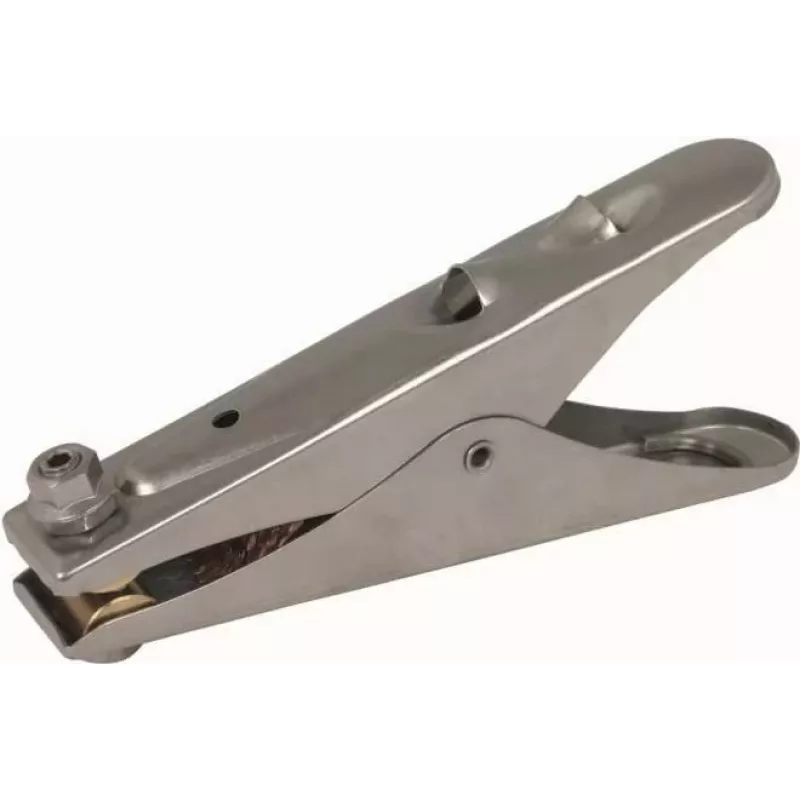

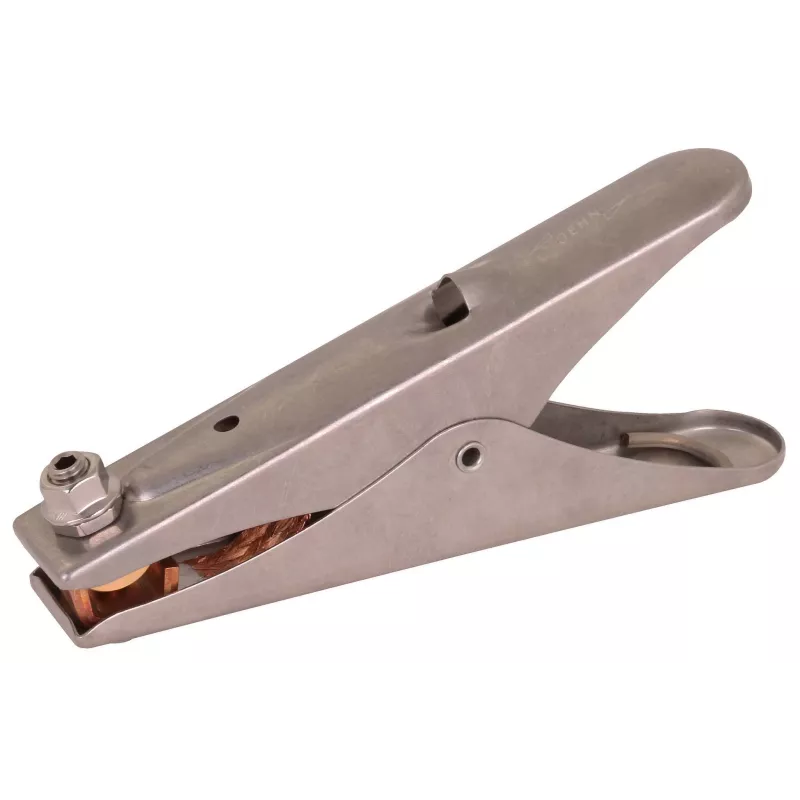

DEHN maadoitusliitin 205mm ruostumaton teräs 546001

Earthing clamp for temporary earthing and short-circuiting of flat and round conductors up to 20 mm. The stainless steel (NIRO) construction provides high corrosion resistance, making it suitable for industrial and electrical installations. The clamp is tightened via an M10 screw connection and is rated for a short-circuit current of 10 kA for 0.5 seconds.

Advantages

High corrosion resistance due to stainless steel material. Reliable mechanical screw tightening ensures a secure connection. Suitable for both flat and round conductors, offering versatility in earthing applications.

Suitable for

• Temporary earthing and short-circuiting in electrical installations
• Industrial environments requiring robust earthing solutions
• Conductors up to 20 mm width or diameter

Key specifications

• Overall length: 205 mm
• Material: Stainless steel (NIRO)
• Clamping range: flat conductors up to 20 mm, round conductors up to 20 mm diameter
• Connection: M10 screw
• Short-circuit current: 10 kA / 0.5 s

Recommendations

For optimal performance, ensure the clamp is tightened to the recommended torque and inspect regularly for wear or corrosion in harsh environments.
