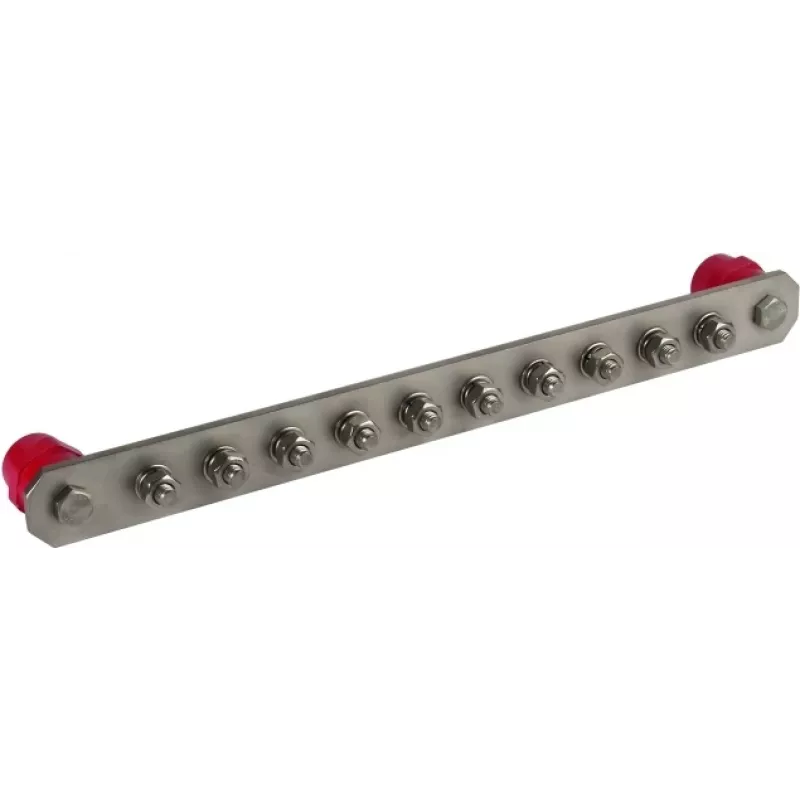

DEHN PAS I 10AP M10 V2A potentiaalintasauskisko 435 mm ruostumaton teräs 472219

This DEHN equipotential bonding busbar stands out with its stainless steel (V2A) busbar and polyamide base, offering high corrosion resistance for long-term reliability in earthing and lightning protection systems. Unlike standard busbars, it provides 12 connection points—10 for small conductors and 2 for large conductors—all with M10 screws, enabling flexible and secure bonding of various conductor sizes.

Highlights

• Stainless steel busbar (V2A / AISI 304) for high corrosion resistance
• Polyamide base for durability and insulation
• 10 small conductor connections: M10 screw for 6-10 mm² round or max 30x3.5 mm flat
• 2 large conductor connections: M10 screw for 6-50 mm² round or max 30x3.5 mm flat
• Total 12 connection points
• Surface / wall mounting
• Length: 435 mm, width: 60 mm, height: 90 mm

In daily use

Designed for equipotential bonding, earthing, and lightning protection applications, this busbar provides a central point for connecting multiple conductors. The M10 screws allow for secure tightening, and the stainless steel construction ensures reliable performance even in harsh environments. The polyamide base offers electrical insulation and mechanical stability, making installation straightforward on walls or surfaces.

Full specifications

• Product type: Equipotential bonding busbar
• Busbar material: Stainless steel (V2A / AISI 304)
• Base material: Polyamide (PA)
• Length: 435 mm
• Width: 60 mm
• Height: 90 mm
• Number of small conductor connections: 10
• Small conductor connection details: M10 screw for 6-10 mm² (round) or max 30x3.5 mm (flat)
• Number of large conductor connections: 2
• Large conductor connection details: M10 screw for 6-50 mm² (round) or max 30x3.5 mm (flat)
• Total connection points: 12
• Mounting type: Surface / wall mounting
• Primary application: Equipotential bonding
• Secondary application: Earthing, lightning protection
• Standard compliance: DIN EN 62561-1, DIN VDE 0100-410 / -540, DIN EN 62305-3
• Corrosion resistance: High
• Busbar colour: Silver
• Base colour: Grey

Final note

This busbar is a robust solution for professional electrical installations requiring reliable equipotential bonding.
