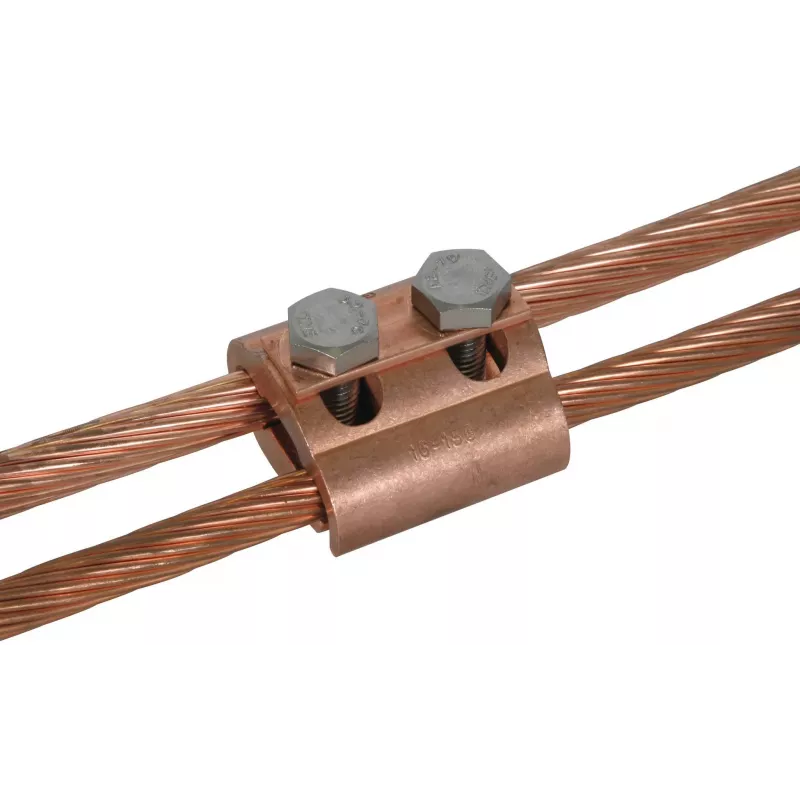

DEHN rinnakkaisliitin 306101 Rd 5-16 mm 16-150 qmm

The DEHN 306101 parallel connector stands out with its ability to join round conductors from 5 to 16 mm diameter and flat strips up to 30 mm width, covering a broad 16–150 mm² cross-section range. This versatility makes it a reliable choice for lightning protection, earthing, and potential equalization systems where different conductor shapes must be securely connected.

Highlights

• Connects round-to-round, round-to-flat, or flat-to-flat conductors
• Hot-dip galvanized steel for high corrosion resistance in outdoor and indoor environments
• Screw clamp connection with hexagonal screw for secure, maintenance-friendly installation
• Complies with EN 50164-1 for lightning protection components

In daily use

Installers appreciate the straightforward screw clamp design, which allows quick and dependable connections without special tooling. The hot-dip galvanized finish ensures long-term durability even in harsh weather, making it suitable for both exposed and concealed installations.

Full specifications

• Connector type: Parallel connector / clamp
• Material: Steel (St)
• Surface treatment: Hot-dip galvanized (tZn)
• Compatible round conductor diameter: 5 - 16 mm
• Compatible flat strip width: Up to 30 mm
• Conductor cross-section range: 16 - 150 mm²
• Number of connection points: 2
• Connection capability: Round to round, round to flat, flat to flat
• Screw type: Hexagonal screw
• Standard compliance: EN 50164-1
• Application area: Lightning protection, earthing, potential equalization
• Usage environment: Outdoor and indoor

Final note

A robust and flexible connector that simplifies mixed conductor installations while ensuring compliance and corrosion resistance.
